2.The bottle and the star wheel made by the CNC machining center are used to enter and exit the bottle, and the bottle is accurately introduced into the bottle guide rail, which solves the problem of squeeze bottle, bottle bottle, bottle blocking and bottle breaking.
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
200
-
Voltage:
-
380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CANKEY
-
Dimension(L*W*H):
-
2480*1980*2600mm
-
Weight:
-
4000 KG
-
Filling speed:
-
8000-20000 bottles / hour
-
Filling range:
-
350-1500ML
-
Filling accuracy:
-
≤±1%
-
Filling bottle:
-
PET bottles, glass bottles, etc.
-
Filling Valves:
-
18 Heads
Quick Details
-
Machinery Capacity:
-
4000BPH, 20000BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Beer, Milk, Water, Juice
-
Filling Accuracy:
-
200
-
Voltage:
-
380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CANKEY
-
Dimension(L*W*H):
-
2480*1980*2600mm
-
Weight:
-
4000 KG
-
Filling speed:
-
8000-20000 bottles / hour
-
Filling range:
-
350-1500ML
-
Filling accuracy:
-
≤±1%
-
Filling bottle:
-
PET bottles, glass bottles, etc.
-
Filling Valves:
-
18 Heads
Product Description

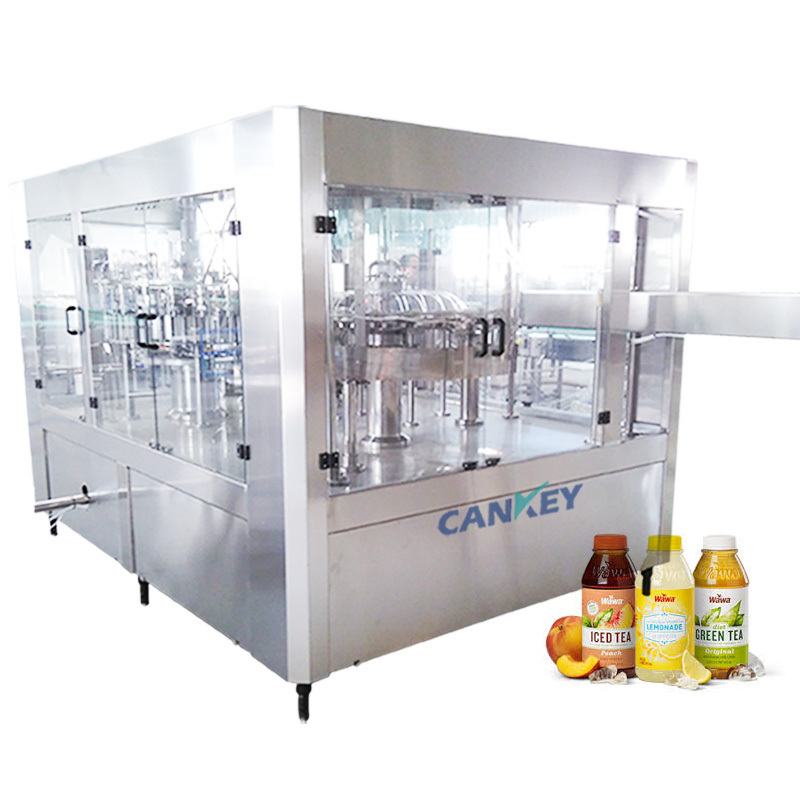

The
three-in-one soft drink filling production line
integrates washing, filling and capping. It is an advanced level filling equipment based on the introduction, digestion and absorption of foreign advanced technology. It is mainly used in mineral springs and soft drink.
Application of Soft Drink Beverage Filling Machine
The
soft drink filling machine in India
is mainly used for cleaning, filling and capping beverages such as milk,soda water, soft drink, juice and pure water. The structure is reasonable, the operation is safe, the work is reliable, and the maintenance is convenient.
Washing part
1.The manipulator has the characteristics of accurate positioning of the bottle, free movement of the flipping, etc. The sealing performance of the flushing valve is good, and the punching force is large and the bottleneck is neutral.
1.Liquid level: The filling liquid level does not change with the bottle capacity, and the filling liquid level is consistent. 2.Do not break the bottle: the bottle height error automatically adapts, frequency control, soft start, soft brake, no rigid impact, no broken bottle.
Capping part
When the capping mold is grasped, the anti-rotation is automatically recognized when it is recognized with the glass bottle mouth, and then the screw is tightened tightly, which overcomes the low qualified rate of the cap due to the bottle body and the bottle mouth being incorrect problem.
Size Information
|
Model
|
CK-DGP18
|
CK-DGP24
|
|
|
Filling Bottle
|
PET bottles, glass bottles, etc.
|
|
|
|
Filling Range
|
350-1500
|
350-2000
|
|
|
Bottle Size
|
60- 96
|
60- 112
|
|
|
Filling Speed
|
8000bottles / hour
|
20000bottles / hour
|
|
|
Number of Filling Valves
|
18
|
24
|
|
|
Voltage
|
380V/50HZ
|
380V/50HZ
|
|
|
Power
|
2.5KW
|
7.5kw
|
|
|
Dimensions(mm)
|
2480*1980*2600
|
2850*2450*2600
|
|
|
Gross Weight(KG)
|
4000
|
6000
|
|
|
Filling Accuracy
|
1%
|
1%
|
|
Detailed Images
1. The bottle can be equipped with an air delivery device, using the suspension card bottleneck method, the bottle speed is fast and will not deform the bottle. 2. The rinse bottle mouth uses advanced card bottleneck technology to avoid contact with the threaded mouth, more sanitary. 3. The bottle is transported using the card bottleneck technology, the shape of the bottle does not need to adjust the height, just change the guard plate related to the diameter of the bottle. 4. The filling adopts the liquid cylinder type feeding structure, and the filling valve adopts the new high-speed large-flow filling valve, and the quantitative accuracy is correct. 5. The screw cap adopts the cap screwing advanced technology, and the capper is selected for low position installation and horizontal cover.
