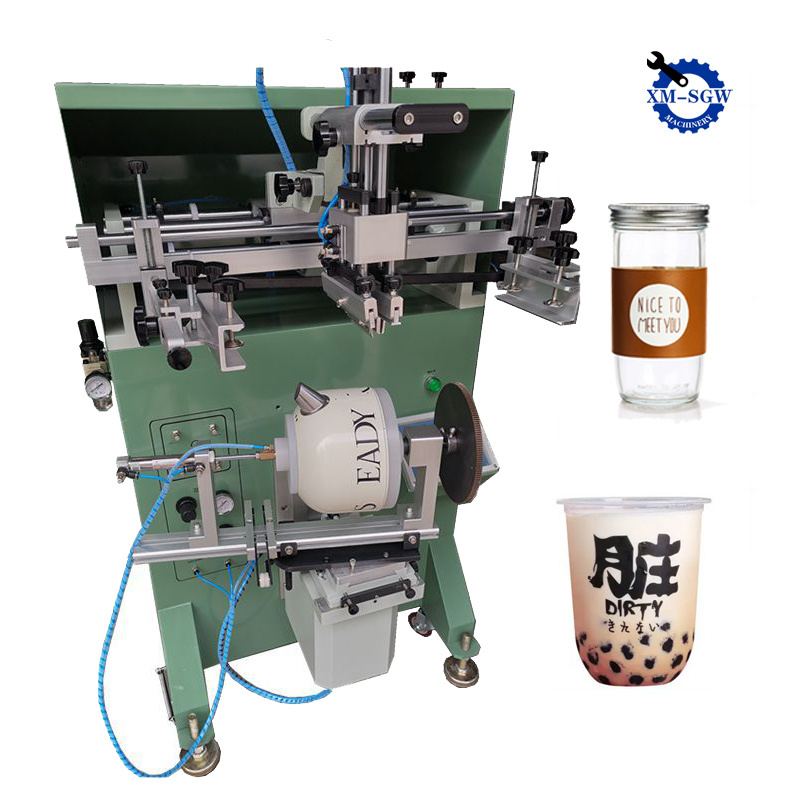

Paper Cup Multi Color Full Automatic Industrial Silk Screen Printing Machine With Led Uv Drying Cup Printing Machine Mug
Paper Cup Multi Color Full Automatic Industrial Silk Screen Printing Machine With Led Uv Drying Cup Printing Machine Mug
Paper Cup Multi Color Full Automatic Industrial Silk Screen Printing Machine With Led Uv Drying Cup Printing Machine Mug
Paper Cup Multi Color Full Automatic Industrial Silk Screen Printing Machine With Led Uv Drying Cup Printing Machine Mug
Paper Cup Multi Color Full Automatic Industrial Silk Screen Printing Machine With Led Uv Drying Cup Printing Machine Mug
Paper Cup Multi Color Full Automatic Industrial Silk Screen Printing Machine With Led Uv Drying Cup Printing Machine Mug
Paper Cup Multi Color Full Automatic Industrial Silk Screen Printing Machine With Led Uv Drying Cup Printing Machine Mug
Paper Cup Multi Color Full Automatic Industrial Silk Screen Printing Machine With Led Uv Drying Cup Printing Machine Mug

Paper Cup Multi Color Full Automatic Industrial Silk Screen Printing Machine With Led Uv Drying Cup Printing Machine Mug

FOB Reference Price: Get Latest Price
≥1 Sets
US $1723
≥6 Sets
US $1623
≥10 Sets
US $1523
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Fujian, China
Brand Name:
SGW
Dimensions(L*W*H):
1000*820*1600mm
Weight:
200 KG, 200KG
Certification:
CE
Power supply:
220v/110V 50/60HZ
Minimum screen frame size:
L400*W600MM
Maximum printing height:
0-200MM
Maximum print length:
400MM
Air Pressure:
4-6 bar
Maximum printing area:
400MM
Printing Speed:
1000pcs/hr
Workbench travel:
100MM
Main body size of machine:
1000*820*1600mm

Quick Details

Condition:
New
Color & Page:
Multicolor
Voltage:
220V/50HZ
Place of Origin:
Fujian, China
Brand Name:
SGW
Dimensions(L*W*H):
1000*820*1600mm
Weight:
200 KG, 200KG
Certification:
CE
Power supply:
220v/110V 50/60HZ
Minimum screen frame size:
L400*W600MM
Maximum printing height:
0-200MM
Maximum print length:
400MM
Air Pressure:
4-6 bar
Maximum printing area:
400MM
Printing Speed:
1000pcs/hr
Workbench travel:
100MM
Main body size of machine:
1000*820*1600mm

Product Application

It is suitable for printing cosmetics, household goods, sporting goods, stationery supplies, etc. It is widely used and
essentialin daily life.
Regardless of what material the substrate is and how large it is, we can target to customize the container and make printing easy.
(1) Not limited by the size and shape of the substrate General printing, can only be carried out in the plane, and screen printing can not only be printed on the plane can also be printed on special shapes of molded objects, such as spherical curved surface, there are shapes of things can be screen printing to carry out. (2) Soft surface and small printing pressure The screen is soft and flexible. (3) Strong ink coverage Pure white printing is possible on all black paper with a strong sense of three-dimensionality. (4) Suitable for various types of ink. (5) Strong spin resistance It can keep the gloss of the printed matter unchanged. (Temperature and sunlight have no effect). This makes it possible to print some self-adhesives without additional lamination and other processes. (6) Flexible and diverse printing methods (7) easy plate making, inexpensive, easy to master the technology (8) strong adhesion (9) can be purely manual screen printing, can also be machine printing
Product Paramenters
Key Selling Points
High-accuracy
Maximum printing speed
1000pcs/hr
Maximum printing area
L350*W200MM
Horizontal stroke
400MM
Workbench travel
100MM
Weight
200KG
Main body size
1000*820*1600mm
Print taper
±7-15
Products Description

Machine Features

1. Microcomputer control each function action, high degree of automation, easy and convenient operation, built-in four-digit automatic counter. 2. With round, flat, cone, plane printing function, printing stroke and speed adjustable to meet different printing requirements. 3. The working table can be adjusted up and down, left and right, and the plane swing angle fine-tuning, convenient and quick adjustment. 4. Pneumatic printing scraper control and with pressure adjustment system. 5. Stable and reliable microcomputer system controller. 6. Bright and clear blue display, showing the working status of the machine at any time. 7. Excellent quality AUTONICS sensor and perfect fault alarm system. 8. Convenient foot switch, easy to operate and maintain. 9. Light but strong alloy die-casting parts and wear-resistant imported bearing bushings. 10. International famous brand SMC, FESTO and other pneumatic components, independent printing and ink return speed control.
