80KHZ 1200W High Frequency Submersible Underwater Waterproof Ultrasonic Cleaner Transducers

80KHZ 1200W High Frequency Submersible Underwater Waterproof Ultrasonic Cleaner Transducers

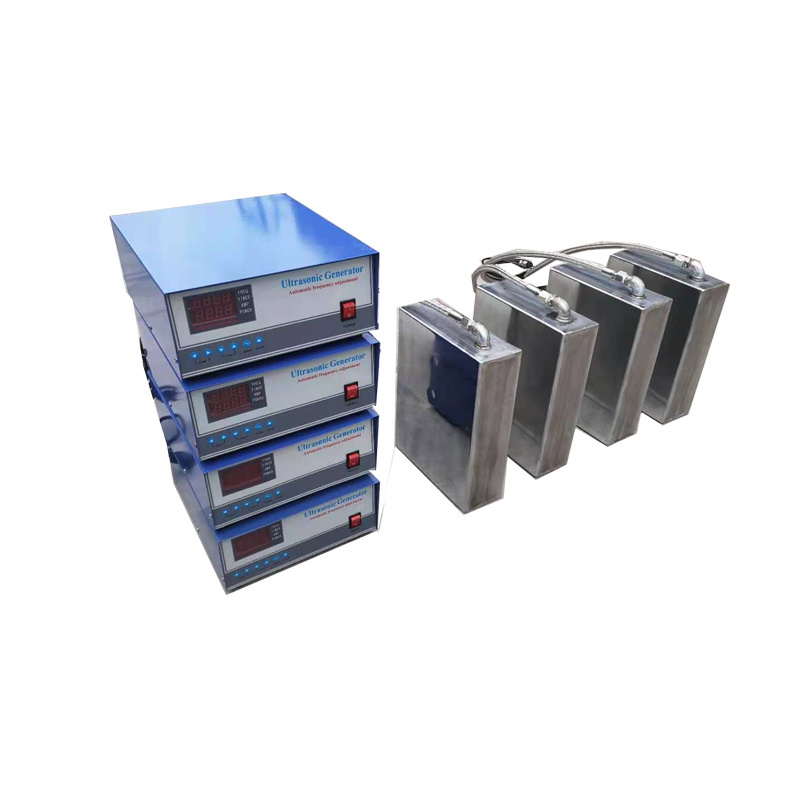

The ultrasonic vibration plate for the cleaning tank of the ultrasonic vibration plate is composed of an ultrasonic transducer attached to a fully sealed stainless steel vibration box and an ultrasonic generator. When the trough-type ultrasonic cleaning equipment is not suitable for specific work needs, the ultrasonic vibration plate is suitable for Self-built cleaning tank or existing cleaning tank with ultrasonic cleaning function, also suitable for the repair and replacement of the ultrasonic vibration plate of the existing ultrasonic cleaning equipment, suitable for the installation of ultrasonic plates in the large ultrasonic cleaning machine system, and also suitable for ultrasonic extraction equipment and ultrasonic sewage treatment equipment Equipped with ultrasound. The ultrasonic vibration plate can be flexibly installed in different parts of the cleaning tank (top, side, bottom) to achieve different cleaning effects. Ultrasonic vibration plates (vibration plates) are generally tailor-made according to user needs and actual working conditions.

Features of ultrasonic vibration plate:
Material: The vibration plate is made of imported SUS304 2.5mm stainless steel plate, and the vibration surface is made of SUS316 2.5mm stainless steel plate.
1. Surface: Ultrasonic vibration surface is electroplated with hard chrome 5um to enhance the service life of the vibration surface.
2. Structure: The whole machine is equipped with a movable hook device for easy installation or movement. The ultrasonic transducer is fixed with special imported glue and welding screws for durability. The frequency is 25KHZ/28KHZ/40KHZ and other frequencies are optional. The whole machine is all stainless steel. structure.
3. Electrical system: all electrical components are made of imported high-quality parts to achieve zero failures and reduce unnecessary troubles caused by professionals on-site maintenance due to failures during use.
4. Ultrasonic generator: adopts digital frequency synthesis technology under the control of microcomputer, the ultrasonic power is continuously adjustable (digital display), and has perfect protection functions: overheating, overcurrent protection, and a four-bit timer to make time control precise To seconds. It also has a frequency sweep function.
4. Power supply: heating: 220V/50HZ
5. Scope of application: cleaning of hardware, electroplating, electronics, clocks and watches, machinery, tools, glasses, jewelry, semiconductor wafers, polyester spinnerets, polyester filters, and glassware.

Hardware electroplating immersion ultrasonic cleaning machine Features of vibration plate:
1. The workpiece is cleaned by ultrasonic vibration plate input, and the cleaning speed is fast;
2. The cleanliness of the workpiece is high and the cleanliness of all the workpieces are consistent, which improves the production and cleaning efficiency and saves electricity; the failure rate is low.
3. After the equipment is cleaned, the workpiece cleaning effect is good, and the deep holes, crevices and hidden parts of the workpiece can also be cleaned;
4. Use immersed ultrasonic vibration plate for cleaning, no damage to the surface of the workpiece;
4. There is no need to touch the cleaning liquid by hand, it is safe and reliable, and saves solvent, heat, work space and labor, etc.;
5. The front and back of the factory can be equipped with rust prevention, phosphating, rinsing, drying and other processes.

Type Description
A.Mounting to tank wall with threaded duct nipple and fastening bracket. Cable through the tank wall.

B.Mounting to tank wall with threaded duct nipple and fixing nipple. Cable through the tank wall.

C.Mounting to tank wall with hanging hooks. Rigid stainless steel tube for cable over the tank top.

D.Mounting to tank wall with hanging hooks. Flexible metal armoured 1 m hose for cable over the tank top.

E.Mounting to tank bottom. Rigid stainless steel tube for cable through the tank wall.

F.Mounting to tank bottom. Rigid stainless steel tube for cable over the tank top.

G.Mounting to tank bottom. Flexible metal armoured 0,5 m hosfor cable through the tank wall.

H.Mounting to tank bottom. Flexible metal armoured 1,5 m hose for cable over the tank top.

X
Non-standard mounting
