- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
CVR
-
Model Number:
-
dsp-2002
-
Dimension (L x W x H):
-
15
-
Model:
-
DSP-2002
-
8Ω Stereo Power:
-
2x2000W
-
4Ω Stereo Power:
-
2x3400W
-
8Ω Bridged:
-
1x6800W
-
Main power:
-
90~260VAC,50-60Hz
-
Size:
-
483*44*465mm
-
conformation:
-
Steel and aluminum chassis
Quick Details
-
Power:
-
2000w
-
Frequency Range (Hz):
-
95dB
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CVR
-
Model Number:
-
dsp-2002
-
Dimension (L x W x H):
-
15
-
Model:
-
DSP-2002
-
8Ω Stereo Power:
-
2x2000W
-
4Ω Stereo Power:
-
2x3400W
-
8Ω Bridged:
-
1x6800W
-
Main power:
-
90~260VAC,50-60Hz
-
Size:
-
483*44*465mm
-
conformation:
-
Steel and aluminum chassis
CVR PRO AUDIO aims to:
Become your most trusted and reliable manufactory
Provide high quality pro sound equipment at realistic prices
Provide outstanding designs together with delicate finished
Provide meticulous and considerate service for clients
See more at: www.cvr-audio.com
Description

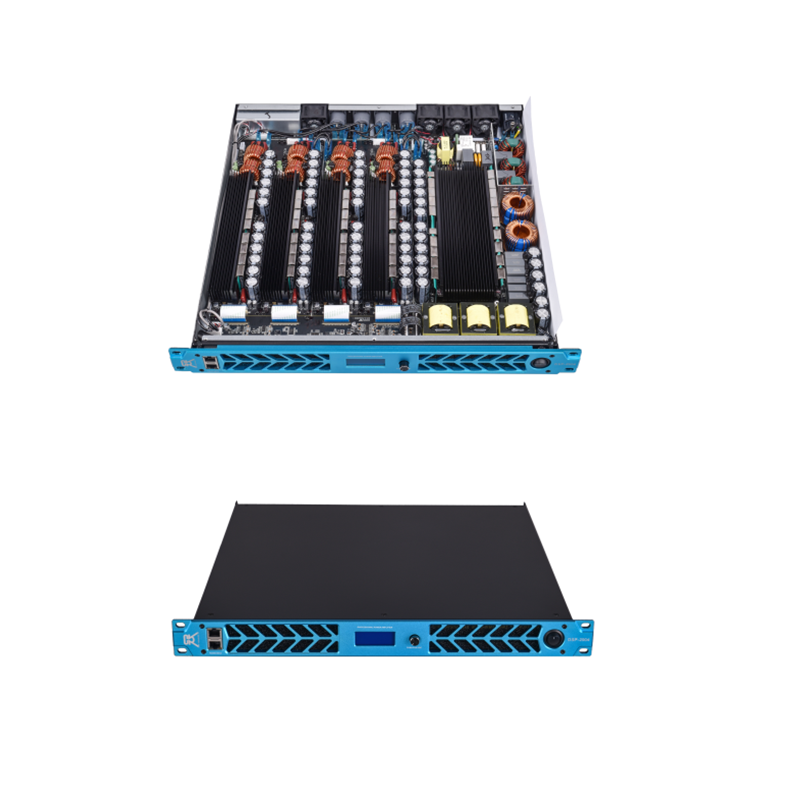

DSP series digital power amplifier is our new product. This series of power amplifiers adopt the multi-loop control technology independently developed by CVR and have excellent technical indicators. The power conversion technology specially designed for low impedance and high current enables the power amplifier to have more than 95% efficiency and excellent stability. Switching power supply Using active PFC and soft switching technology, and optimized design for the audio power amplifier, it can adapt to the harsh environment and provide continuous surging power for the power amplifier.
This series of digital power amplifiers are equipped with high-performance audio dedicated DSP, high-dynamic and high-precision AD/DA converter and 3.3-inch high-definition LCD display. The power amplifier can be monitored through RS-485 and LCD screen. It can receive analog audio and AES digital audio signals.
DSP series power amplifiers have the characteristics of high reliability, sufficient power, outstanding sound, and strong adaptability. It has 2 channels and 4 channels, stable and reliable 2Ω drive capability, which can be applied to line arrays, subwoofer and different kinds of sound boxes.
Features
- 90~260VAC / 50~60HZ Wide range power supply.
- high-definition audio DSP .
- Analog and AES3 signals can be received.
- RS485 serial communication port,for amplifier control and monitoring.
- Modular design and maintenance is simple.
- 2, 4 channel design,Very suitable for touring.
Function
- Audio input:AES3 digital audio and analog audio selectable.
- Built-in 4X4 audio matrix.
- Pushbutton for fast mute.
- Mode: stereo, mono, bridge, one in four out.
- 15 segment parameter EQ.
- Filter for each channel: direct,low pass,band pass,high pass,all pass.
- Delay for each channel:0~100ms delay.
- Peak voltage limiter,Over temperature,Short protection.
- Over load limiter.
- Under voltage, DC protection.
- Status to monitor:temperature,voltage,current,fault.
- RS-485 address and Baud Rate settings;
- 16 memory spaces for parameter save and recal
