Quick Details
-
Brand Name:
-
STRONG
-
Voltage:
-
110/220V
-
Dimension(L*W*H):
-
850 550 1070
-
Weight (KG):
-
230
-
Power (kW):
-
0.37
-
Product name:
-

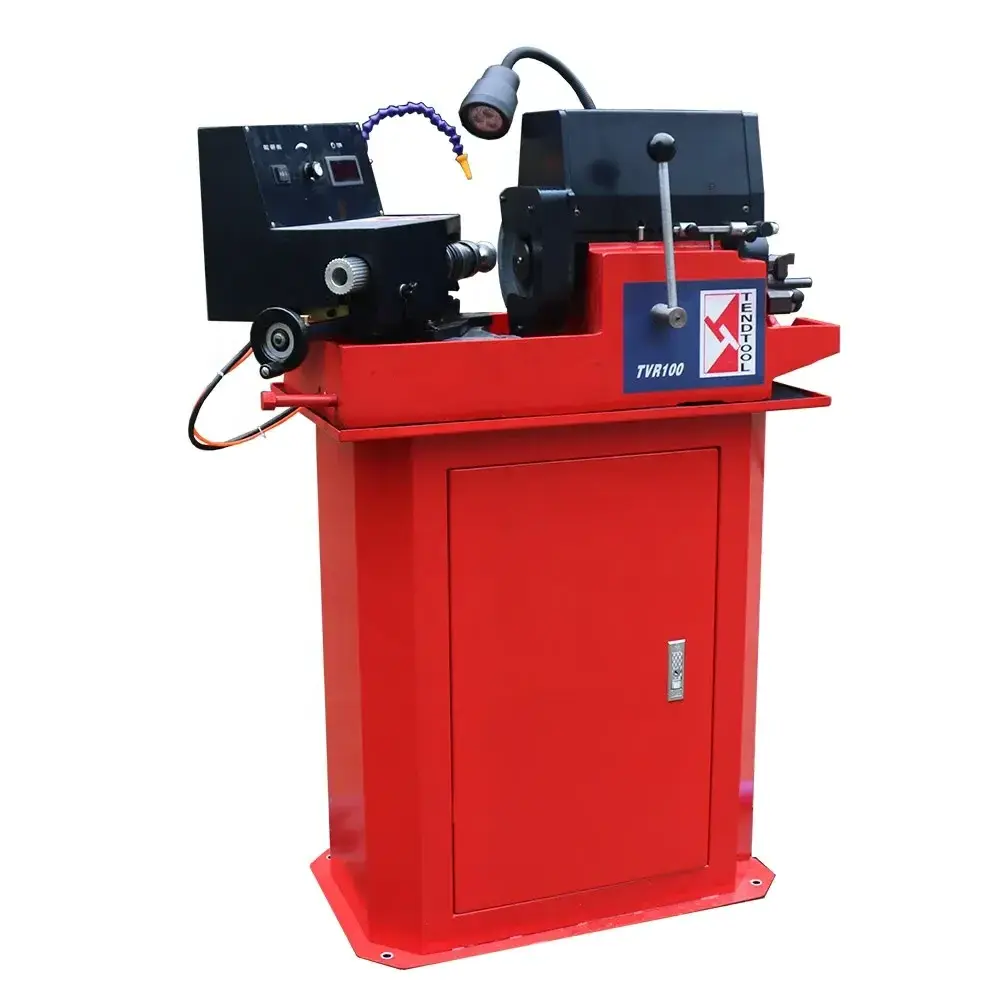

Auto Valve Grinder
-
Function:
-
Sharpening Blade
-
Keywords:
-
Standard Surface Grinder
-
Machine Type:
-
Automatic Surface Grinder Machine
-
Color:
-
Grey
-
After-sales Service Provided:
-
Online Support
-
Advantage:
-
High Efficiency Easy Operate
-
Application:
-
Tool Industry
-
Processing Types:
-
Robot Auto Processing Grinding Polishing
-
Feature:
-
Grinding Efficient
Quick Details
-
Wheel Size(mm):
-
54-260mm
-
Year:
-
2023
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
STRONG
-
Voltage:
-
110/220V
-
Dimension(L*W*H):
-
850 550 1070
-
Weight (KG):
-
230
-
Power (kW):
-
0.37
-
Product name:
-
Auto Valve Grinder
-
Function:
-
Sharpening Blade
-
Keywords:
-
Standard Surface Grinder
-
Machine Type:
-
Automatic Surface Grinder Machine
-
Color:
-
Grey
-
After-sales Service Provided:
-
Online Support
-
Advantage:
-
High Efficiency Easy Operate
-
Application:
-
Tool Industry
-
Processing Types:
-
Robot Auto Processing Grinding Polishing
-
Feature:
-
Grinding Efficient
Product Description
Title goes here.
Features
1. Air – operated, Six – Ball chuck design for perfect alignment and grinding, only five minutes from the clamping to finish
grinding, and can get a very good roundness and finish.
2. Variable valve speed allows the operator to adjust surface speed when working with different size of valves
3. High accuracy dovetail guide of grinding wheel moving, manual scraping to reach super smooth, it can effectively absorb
vibration.
4. Valve steam depth stop is a practical device, especially when you need to process several of the same valves, and allow valves
to ground to the exact same length.
5. Casting iron base reduce the vibration, sturdy and durable.
6. Centralized lubricating system to avoid the cumbersome manual multi – point add oil.
7. The valve head grinding wheel and the valve steam grinding wheel are equipped with diamond dresser, very convenient dressing of
grinding wheel.
8. The optional tools cabinet has a extra 2 liters coolant tank, of course, there is enough space you can change more bigger
coolant tank, if you want to more coolant water.
9. The V rest of Stem/Butt End Grinding device allows all valves in a set to be ground to the same distance from valve seat to
stem end - essential for overhead camshaft type cylinder heads. Exact amount of material removed from the stem end can be measured
with the micrometer adjustm
1. Air – operated, Six – Ball chuck design for perfect alignment and grinding, only five minutes from the clamping to finish
grinding, and can get a very good roundness and finish.
2. Variable valve speed allows the operator to adjust surface speed when working with different size of valves
3. High accuracy dovetail guide of grinding wheel moving, manual scraping to reach super smooth, it can effectively absorb
vibration.
4. Valve steam depth stop is a practical device, especially when you need to process several of the same valves, and allow valves
to ground to the exact same length.
5. Casting iron base reduce the vibration, sturdy and durable.
6. Centralized lubricating system to avoid the cumbersome manual multi – point add oil.
7. The valve head grinding wheel and the valve steam grinding wheel are equipped with diamond dresser, very convenient dressing of
grinding wheel.
8. The optional tools cabinet has a extra 2 liters coolant tank, of course, there is enough space you can change more bigger
coolant tank, if you want to more coolant water.
9. The V rest of Stem/Butt End Grinding device allows all valves in a set to be ground to the same distance from valve seat to
stem end - essential for overhead camshaft type cylinder heads. Exact amount of material removed from the stem end can be measured
with the micrometer adjustm
Machine Details
Specification
|
Model
|
VG100
|
VG100A
|
|
|
Type of Drive System
|
Air / Electric
|
|
|
|
Valve Stem Diameter Range with Chuck
|
4 – 14 mm
|
|
|
|
Valve Stem Length Range with Chuck
|
54 – 260 mm
|
|
|
|
Valve Head Diameter Range
|
20 – 102 mm
|
|
|
|
Valve Total Length Range
|
90 – 315 mm
|
|
|
|
Max. Boring Dia.
|
14 – 60 mm
|
|
|
|
Valve Head Grinding Angle
|
15 – 55°
|
|
|
|
Valve Stem Butt Grinding Angle
|
0°and 45°
|
|
|
|
Valve Head Grinding Wheel Diameter
|
178 mm
|
|
|
|
Valve Stem Butt Grinding Wheel Diameter
|
76 mm
|
|
|
|
Valve & Butt Grinding Wheel Speed
|
3500 rpm at 50 Hz ; 4200 rpm at 60 Hz
|
|
|
|
Chuck Rotation Speed
|
50 – 230 rpm
|
|
|
|
Working Accuracy
|
≤0.015 mm ( 0.006″)
|
≤0.005 mm ( 0.002″)
|
|
|
Coolant Capacity
|
3 Liter
|
|
|
|
Required Rated Air Pressure
|
6 Bar / 85 PSI
|
|
|
|
Power of Grinding Wheel Motor
|
0.37 kW
|
|
|
|
Power of Chuck Rotation Motor
|
0.09 kW
|
|
|
|
Overall Dimension of Machine
|
945×650×430 mm
|
|
|
|
Overall Dimension of Tools Cabinet
|
700×380×810 mm
|
|
|
Certifications
Packing & Delivery
Packing:
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the
machine corrosion.
Delivery:
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea. 2. Below 1CBM or 100KG, we suggest send by Air. 3. Below 0.5CBM or 50KG, we suggest
send by Express. The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you
place order.
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the
machine corrosion.
Delivery:
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea. 2. Below 1CBM or 100KG, we suggest send by Air. 3. Below 0.5CBM or 50KG, we suggest
send by Express. The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you
place order.
