Quick Details
-
Model Number:
-
XF-120YT/XF-200YT/XF-300YT, XF-120YT/XF-200YT/XF-300YT
-
Product name:
-

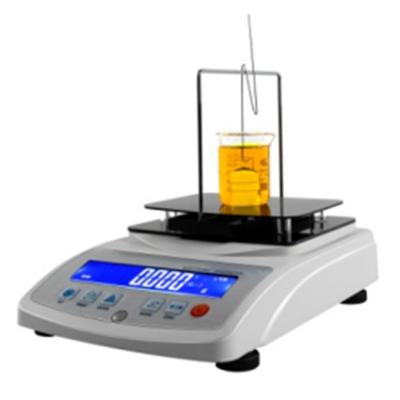

Liquid Density Measurement
-
Type:
-
density testing
-
Max load weight:
-
120g/00g/300g
-
Weight accuracy:
-
0.001g
-
Density accuracy:
-
0.0001g/cm3
-
Test range:
-
0.001-99.9999g/cm3
-
Type test:
-
Liquid, corrosive liquid
-
Power Supply:
-
AC 110/220V 10%
Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
China
-
Brand Name:
-
WANT
-
Model Number:
-
XF-120YT/XF-200YT/XF-300YT, XF-120YT/XF-200YT/XF-300YT
-
Product name:
-
Liquid Density Measurement
-
Type:
-
density testing
-
Max load weight:
-
120g/00g/300g
-
Weight accuracy:
-
0.001g
-
Density accuracy:
-
0.0001g/cm3
-
Test range:
-
0.001-99.9999g/cm3
-
Type test:
-
Liquid, corrosive liquid
-
Power Supply:
-
AC 110/220V 10%
Product Description
Liquid densitometer imported from Germany HBM sensor, with reliable measurement repeatability, two operation steps that show the density, no wechsler balance, gravity bottle method cumbersome debugging and operation, excellent performance, strong practicality, strong acid and alkali, viscous, volatile, suspended liquid, emulsified liquid, high temperature liquid can be quickly Measured.
Application:
Suitable for: All kinds of acid and alkali salt solution, chemical, oil, oil, cosmetics, paint, coatings, printing ink, essence,
perfume, chemical solution, chemical reagents, resins, adhesives, edible oil, beverage, pharmaceutical, additives, synthetic
agent, metal processing, thermal power, electroplating industry, construction, chemical industry and trade, colleges and
universities, institutions, government departments, teaching institutions.
perfume, chemical solution, chemical reagents, resins, adhesives, edible oil, beverage, pharmaceutical, additives, synthetic
agent, metal processing, thermal power, electroplating industry, construction, chemical industry and trade, colleges and
universities, institutions, government departments, teaching institutions.
Corresponding standards:
According to GB/ t611-2006,GB/ t11540-2008, gb1666-81,GB/ t5009.2-2003,GB/T 5526-1985, jjg171-2004,GB/T13531, T5526, T5009,GB/T11540,GB/ T12206,GB/ T5518 specifications. The buoyancy method and water displacement method based on Archimedes principle are used to quickly read liquid density, baume degree and concentration.
Features:
1. Any solution can be quickly measured, and the operation can be completed in one step, which is convenient for continuous and rapid testing.
2. With upper and lower density functions, it can determine whether the specific gravity of the object to be measured is qualified or not. It is provided with a buzzer device
3. Convenient sampling, only 50CC for the tested sample, digital display, high measurement accuracy, simple operation, stable and durable.
4. The measuring cup is easy to clean and is not restricted by the small diameter of the specific gravity bottle. It can be
reused. Disposable measuring cups can also be used.
5. With rs-232c communication interface, it is convenient to connect PC and printer. Xf-68 printer is optional to print
measurement data
6. Own battery, equipped with windproof cover, more suitable for field test.
2. With upper and lower density functions, it can determine whether the specific gravity of the object to be measured is qualified or not. It is provided with a buzzer device
3. Convenient sampling, only 50CC for the tested sample, digital display, high measurement accuracy, simple operation, stable and durable.
4. The measuring cup is easy to clean and is not restricted by the small diameter of the specific gravity bottle. It can be
reused. Disposable measuring cups can also be used.
5. With rs-232c communication interface, it is convenient to connect PC and printer. Xf-68 printer is optional to print
measurement data
6. Own battery, equipped with windproof cover, more suitable for field test.
Specification
|
Model
|
XF-120YT
|
|
XF-200YT
|
XF-300YT
|
|||
|
Max load weight
|
120g
|
|
120g
|
220g
|
|||
|
Weight accuracy
|
0.001g
|
|
0.001g
|
0.001g
|
|||
|
Density accuracy
|
0.0001g/cm3
|
|
0.0001g/cm3
|
0.0001g/cm3
|
|||
|
Test range
|
0.0001—99.9999g/cm3
|
|
0.0001—99.9999g/cm3
|
0.0001—99.9999g/cm3
|
|||
|
The results showed
|
Density, concentration, concentration, modulus
|
|
|
|
|||
|
Setting
|
Set the upper and lower limits of density, set the specific gravity of specific gravity hammer and set the temperature compensation
|
|
|
|
|||
|
Type test
|
Liquid, corrosive liquid
|
|
|
|
|||
|
Calibration mode
|
100g single bond automatic correction, positive distilled water test results
|
|
|
|
|||
|
Output way
|
Rs-232c standard communication interface, convenient test data output and printing
|
|
|
|
|||
|
Remark
|
Corrosive liquids require the purchase of corrosive accessories
|
|
|
|
|||
|
Machine size
|
43*20*37cm(L*W*H)
|
|
|
|
|||
|
Machine weight
|
About 4kg
|
|
|
|
|||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
