Quick Details
-
Place of Origin:
-
Henan, China
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Online support
-
Product name:
-
KFP-76-20A foam concrete machine
-
Driven mode:
-
Electric motor
-
Capacity:
-
18-20 m3/h
-
Max. Output Pressure:
-
1.5 MPa
-
Max. Aggregate size:
-
15 mm
-
Hose pump ID.:
-
76 mm
-
Max. Delivery Distance:
-
20/100 m
-
Main motor:
-
11 KW
-
Keyword:
-
foam concrete machine
-
Application:
-
foam concrete
-
Certification:
-
CE, ISO
Quick Details
-
Type:
-
Foam concrete machine
-
Brick Raw Material:
-
Cement and sand
-
Production Capacity (Pieces/8 hours):
-
18-20 m3/h
-
Place of Origin:
-
Henan, China
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Online support
-
Product name:
-
KFP-76-20A foam concrete machine
-
Driven mode:
-
Electric motor
-
Capacity:
-
18-20 m3/h
-
Max. Output Pressure:
-
1.5 MPa
-
Max. Aggregate size:
-
15 mm
-
Hose pump ID.:
-
76 mm
-
Max. Delivery Distance:
-
20/100 m
-
Main motor:
-
11 KW
-
Keyword:
-
foam concrete machine
-
Application:
-
foam concrete
-
Certification:
-
CE, ISO
KFP-76-20A Foam Concrete Machine
Peristaltic Foam Concrete Pump Lightweight Concrete Foaming Machinery
Concrete Foam Machine Features:
1. KFP Concrete Foam Machine combines feeding machine, water adding device, mixing system, foaming system, delivery system together. It is convenient to operate, automatic cement feeding, automatic mixing of cement slurry, automatic foaming of foaming agent, automatic delivery of foaming concrete.
2. The machine adopts high pressure foaming technology with good foaming performance,even,high quality,unbreakable,accurate(foaming amount can be precisely controlled within mg).
3. Delivery system adopts the most advanced pumping system of hose pump, with simple operation, low fault rate, less wearable parts, convenient maintenance,and low cost.
4. The machine shell is made of high strength and precious steel plate,which is painted at high temperature of 280℃ and has long service life.
5. The machine saves production costs and improves economical returns.Compared with similar products, the machine can save 50~100kg cement per cubic meter product.
6. The machine is the ideal equipment of foaming cement,with light weight,small size, convenient movement, high efficiency.
Concrete Foam Machine Application:
1. KFP Concrete Foam Machine is widely used to produce lightweight cement, thermal insulation materials, heat preservation materials, and water proof materials etc.
2. Take cement and coal ash as raw material to make foam concrete.
3. Insulating layer, bedding course, floor heating, filling projects of foam concrete roofing.
4. Other products of foam concrete.
Concrete Foam Machine Technical Parameters:
|
Items |
Unit |
KFP-76-20A foam concrete machine |
|
Main motor |
KW |
11 |
|
Output |
m3/h |
18~20 |
|
Vertical delivery dist. |
m |
20 |
|
Horizontal delivery dist. |
m |
100 |
|
Particle size |
mm |
≤15 |
|
Output pressure |
Mpa |
1.5 |
|
Dimensions (length*width*height) |
mm |
|
|
Main machine weight |
Kg |
500 |
|
Total weight |
Kg |
960 |
Concrete Foam Machine Details:
|

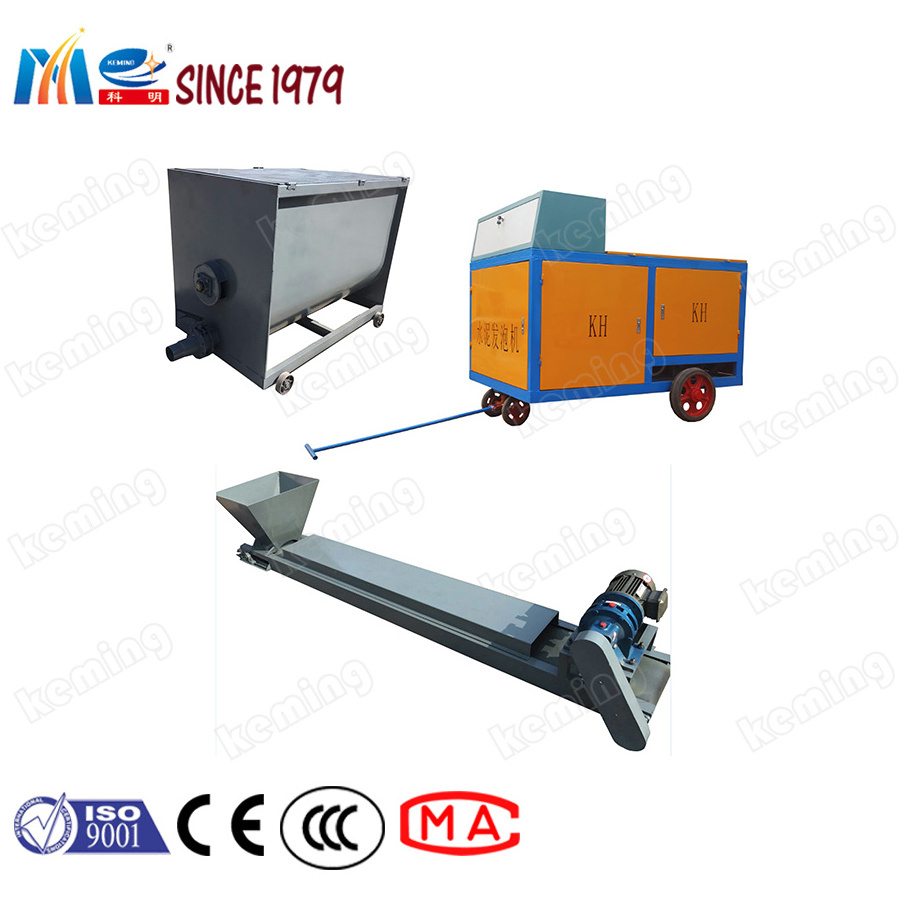

KFP-32 Foam Concrete Pump * KH32 hose pump * Foam generator * Mixer * Belt feeder |
KFP-50 Foam Concrete Pump * KH50 hose pump * Foam generator * Mixer * Belt feeder |
|
|
|
|
KFP-70 Foam Concrete Pump * KH50 hose pump * Foam generator * Mixer * Belt feeder |
KFP-100 Foam Concrete Pump * KH65 hose pump * Foam generator * Mixer * Belt feeder |
|
|
|
|
KFP-120 Foam Concrete Pump * KH65 hose pump * Foam generator * Mixer * Belt feeder |
KFP-150/180/200 Foam Concrete Pump * KH75/100 hose pump * Foam generator * Mixer * Belt feeder |
|
|
|
|
KFP-65-20A Foam Concrete Pump
* KH65 hose pump * Foam generator * Mixer * Screw feeder |
KFP-65-40A Foam Concrete Pump
* KH65 hose pump with air compressor * Foam generator * Mixer * Screw feeder |
