Quick Details
-
Brand Name:
-
QiangRen
-
Model Number:
-
QDX
-
Place of Origin:
-
Henan, China
-
Horsepower:
-
1hp
-
Cable Length:
-
1m
-
Outlet Size:
-
1''
-
Power:
-
0.75kw
-
Product name:
-
Clean water submersible pump
-
Usage:
-
Lifting water from shallow wells, ditches, ponds, rivers and lakes
-
Material:
-
stainless steel
-
MOQ:
-
50pcs
-
Keywords:
-
Clean water submersible pump
-
Feature:
-
Long Life,Low Noise,Durable,Energy Saving
-
Frequency:
-
50 Hz/60Hz
-
Pump body:
-
Cast Iron Pump
-
Color:
-
Customers' Requirement
-
Brand:
-
QiangRen
Quick Details
-
Application:
-
Commercial Buildings, Developing World Water Solutions, Family Homes, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
High Pressure
-
Voltage:
-
220v
-
Brand Name:
-
QiangRen
-
Model Number:
-
QDX
-
Place of Origin:
-
Henan, China
-
Horsepower:
-
1hp
-
Cable Length:
-
1m
-
Outlet Size:
-
1''
-
Power:
-
0.75kw
-
Product name:
-
Clean water submersible pump
-
Usage:
-
Lifting water from shallow wells, ditches, ponds, rivers and lakes
-
Material:
-
stainless steel
-
MOQ:
-
50pcs
-
Keywords:
-
Clean water submersible pump
-
Feature:
-
Long Life,Low Noise,Durable,Energy Saving
-
Frequency:
-
50 Hz/60Hz
-
Pump body:
-
Cast Iron Pump
-
Color:
-
Customers' Requirement
-
Brand:
-
QiangRen
Dear Sir and Madam,
We are Water Pump manufacturer for more than 20+ years.
We are a company specializing in the production and processing of self-priming pumps, vortex pumps, centrifugal pumps, canned pumps, submersible pumps and other products, with a complete and scientific quality management system. The integrity, strength and product quality of Luohe Huali Pump Co., Ltd. have been recognized by the industry.
Welcome friends from all walks of life to visit, guide and negotiate business.
If you have any question,please consult us.
Kind regards,
We are Water Pump manufacturer for more than 20+ years.
We are a company specializing in the production and processing of self-priming pumps, vortex pumps, centrifugal pumps, canned pumps, submersible pumps and other products, with a complete and scientific quality management system. The integrity, strength and product quality of Luohe Huali Pump Co., Ltd. have been recognized by the industry.
Welcome friends from all walks of life to visit, guide and negotiate business.
If you have any question,please consult us.
Kind regards,
Specification
|
Clean water
submersible pump
|
Power
(kw)
|
Voltage
(v)
|
Flow
(m3/h)
|
Head
(m)
|
Diameter
(mm)
|
|
QDX1.5-16-0.37
|
0.37
|
220
|
1.5
|
16
|
20
|
|
QDX3-24-0.75
|
0.75
|
220
|
3
|
24
|
25
|
|
QDX3-40-0.75
|
0.75
|
220
|
3
|
40
|
25
|
|
QDx3-30-0.55
|
0.55
|
220
|
3
|
30
|
25
|
|
QDX1.5-25-0.55
|
0.55
|
220
|
1.5
|
25
|
20
|
|
QDX1.5-32-0.75
|
0.75
|
220
|
1.5
|
32
|
20
|
|
QDX18-25-1.8
|
1.8
|
220
|
18
|
25
|
8o
|
Products Description

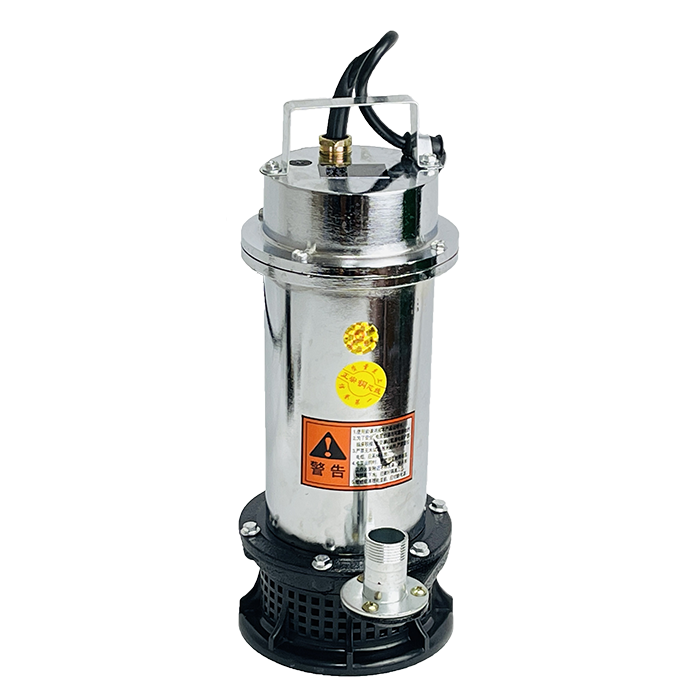

Submersible pump
Product features:
1. The electric pump consists of water pump, seal and motor.
2. The electric pump is equipped with a protection device, and the motor is located on the upper part of the electric pump, which
is a single-phase or three-phase asynchronous motor.
3. The water pump is located at the lower part of the motor, which is a centrifugal impeller and volute structure. Double end
mechanical seals are used between the water pump and the motor, and "O" type oil resistant rubber seals are used as static seals
at each fixed lip seal.
Product use:
Because of its small size and light weight, this series of electric pumps are especially suitable for underground pumping in rural
areas, farmland drainage and irrigation, garden irrigation, domestic water, and industrial water drainage. Water supply and
drainage, aquaculture and other places for construction.
Conditions of use:
The electric pump can work normally under the following conditions:
1. The liquid temperature of the water supply is less than 40 ℃;
2. PH value of water pump is between 6. 2-8. 5;
3. The ratio of solid impurities in the water shall not exceed 0.1%, the particles shall not exceed 0.2 mm, and the diving depth
shall not exceed 5 m;
4. The electric pump shall be used within the scope of use near the specified lift;
5. The electric pump shall be completely immersed in the water for use, and the maximum diving depth shall not exceed 5m. The
electric pump shall be more than 0.5m from the bottom, but shall not be immersed in mud.
