Quick Details
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
yarn air splicer
Quick Details
-
Use:
-
Spinning Machinery
-
Type:
-
yarn air splicer
-
Weight (KG):
-
1.5
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
yarn air splicer
Product Description

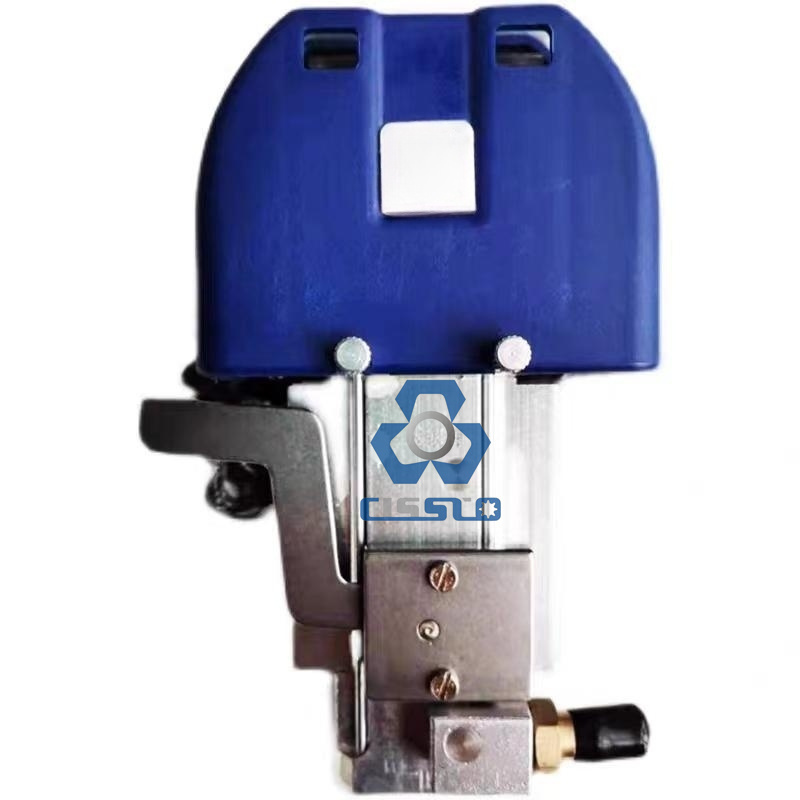

Yarn Air Splicer
The air splicer uses compressed air jet to untwist the yarn head to be spliced in the untwisting tube, with the fibers extending parallel. Then, the two yarn heads enter the blowing and twisting tube and overlap in the opposite direction, with the fibers doped with each other. The high-speed air swirling flow blows from the middle of the blowing and twisting tube towards the ends of the tube, twisting and connecting them. The rotation direction of the rotating airflow should be consistent with the twisting direction of the yarn. The air splicer can be used for splicing various single and stranded fibers, with different compressed air pressures used for different yarns. Some air splicers use heated or humidified air to splice certain fibers, which is beneficial for improving splicing strength and appearance.
SKN-93 Detailed product introduction:
Applicable variety of yarn :
cotton, wool, polyester glass fiber and polyester filament single yarn and plied yarn.
Applicable density :
cotton single yarn : 28～4.85Tex
other single yarn: 97～4.85
Plied yarn: 50×2～4.85×2Tex
Splicing strength : not less than 80% of original yarn
Splicing diameter : not greater than 1.2 times original yarn
Pressure of compressed air : 0.59～0.75Mpa
Applicable density :
cotton single yarn : 28～4.85Tex
other single yarn: 97～4.85
Plied yarn: 50×2～4.85×2Tex
Splicing strength : not less than 80% of original yarn
Splicing diameter : not greater than 1.2 times original yarn
Pressure of compressed air : 0.59～0.75Mpa
SKN-95 Detailed product introduction:
Applicable variety of yarn: cotton, linen, rotor-spun yarn, cotton
spandex core spun yarn.
Applicable density: ① single yarn 120～10Tex ② plied yarn 37×2～5×2Tex
Splicing strength: not less than 80% of original yarn and should meet the requirements of following process.
Splicing diameter: not greater than 1.2 times original yarn
Pressure of compressed air: 0.64～0.75Mpa
Water consumption: 0.008～0.02ml/time
Atomizing medium: purified water.
(the service life of purified water can reach 4～5 days)
spandex core spun yarn.
Applicable density: ① single yarn 120～10Tex ② plied yarn 37×2～5×2Tex
Splicing strength: not less than 80% of original yarn and should meet the requirements of following process.
Splicing diameter: not greater than 1.2 times original yarn
Pressure of compressed air: 0.64～0.75Mpa
Water consumption: 0.008～0.02ml/time
Atomizing medium: purified water.
(the service life of purified water can reach 4～5 days)
SKN-100 Detailed product introduction:
SKN-100 Air Splicer wraps the opposed ends with a fine yarn usually of compatiblematerial. In this way, it solves the problem that air splicer can not join some special yarn, thread, and meets the customer's demand for knotless yarn of special material. SKN-100 Air Splicer is mainly used by artificial turf filaments, optical fiber, and chenille fabric manufacturer. lt pre-joins the ends and reduces the down times and guarantees the continuity ofproduction line. Production efficiency improves substantially.Theoretically speaking, SKN-100 Air Splicer applies to any yarn, thread and rope.SKN-100 Air Splicer is powered by a rechargeable battery (6V) and is normally worn aroundthe operator's waist (belt).
SKN-300 Detailed product introduction:
Applicable variety of yarn:Glass rovings, carbon fibre precursors, Panox, carbon fibre rovings, Aramid
Yarn counts: 100 tex to 15000 tex
Twist:zero or low twist
Splice format:Ends-opposed (see technical section)
Typical applications :Magazine creeling, filament winding, pultrusion, weaving
SKN-2005B Detailed product introduction:
SKN-2005B aqua splicer is suitable for mecerized cotton、fibreflax、coarse yarn、high count cotton yarn. The stability and wideapplication of SKN-2005 can satisfy the yarn processed bydifferent spinning processes.
Splicing range:Ne5~Ne200(Tex120~Tex3)
Required air pressure >0.65Mpa
①Splicing strength:not less than 80% of original yarn (Depending on composition with the number of shares which twist)and should meet the requirements of following process.
②)Splicing strength unevenness: less than15%.
③Splicing length:15mm-25mm.
④Splicing diameter: less than 1.0-1.3 times of original yarn diameter.
⑤Splicing speed: 0.5-1.5 secone every time (adjustable).
Specification
|
item
|
value
|
|
Condition
|
New
|
|
Warranty
|
6 Months
|
|
Applicable Industries
|
Manufacturing Plant
|
|
Weight (KG)
|
1.5
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
New Product 2024
|
|
Place of Origin
|
China
|
|
|
Shanghai
|
|
Brand Name
|
yarn air splicer
|
|
Use
|
Spinning Machinery
|
|
Type
|
yarn air splicer
|
