Quick Details
-
Brand Name:
-
SKZ
-
Model Number:
-
SKZ1050-NOX
-
Gas Detected:
-
Nitrogen oxide NOX
-
Detection principle:
-
Electrochemical principles
-
Measure Range:
-
0-5000ppm
-
Repeatability:
-
≤ ± 1%
-
Resolution:
-
1ppm
-
Precision:
-
2%FS
-
Sensor:
-
Imported high-precision sensor
-
Gas unit:
-
multiple gas unit
-
CE certification:
-
Exia II CT4, IP66
-
Certification:
-
CE
Quick Details
-
Type:
-
Gas Detector
-
Warranty:
-
12 months
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SKZ
-
Model Number:
-
SKZ1050-NOX
-
Gas Detected:
-
Nitrogen oxide NOX
-
Detection principle:
-
Electrochemical principles
-
Measure Range:
-
0-5000ppm
-
Repeatability:
-
≤ ± 1%
-
Resolution:
-
1ppm
-
Precision:
-
2%FS
-
Sensor:
-
Imported high-precision sensor
-
Gas unit:
-
multiple gas unit
-
CE certification:
-
Exia II CT4, IP66
-
Certification:
-
CE
Products Description

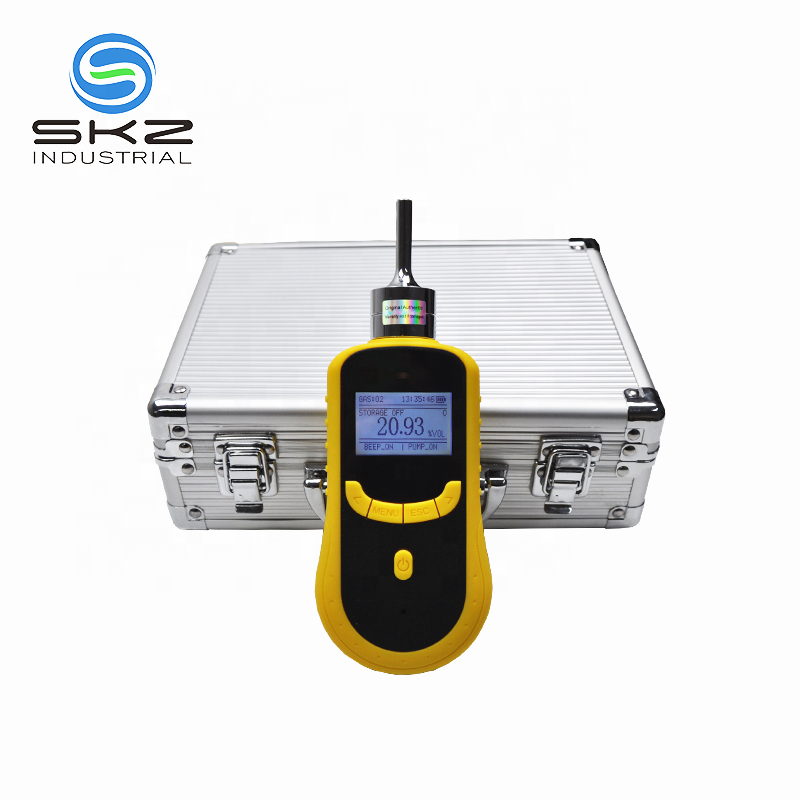

h igh performance Nitrogen oxides nox gas flue analyzer detector alarming device machine
Feature：
1.Using imported high-precision Infrared principles sensor
2.LCD dot matrix display technology, can display the type of gas, the gas unit, gas concentration values, measured maximum, local time, ambient temperature, etc.
3.Support Chinese and English operation interface, easy to switch
4.Gas concentration unit PPM, mg/m3 can quickly switch display
5.Built-in micro sampling pump, the pump suction size ten stalls adjustable
6.Explosion-proof certification, proof grade: Exia II CT4
Specification
|
Gas Detected
|
Nitrogen oxides nox
|
|
Detection principle
|
Electrochemical principles
|
|
Measure Range
|
0-5000PPM
|
|
Resolution
|
1ppm
|
|
Sampling Method
|
Pump- suction, flow up 1L/min, pump suction size ten stalls
adjustable |
|
Precision
|
2%
|
|
Data logger
|
100,000 sets of data can be stored, storage space available set,
minimum 5S, can be browse |
|
Response Time
|
≤ 10S
|
|
Repeatability
|
≤ ± 1%
|
|
Zero shift
|
≤ ± 1% (F.S / Year)
|
|
Operating language
|
Support in English
|
|
Temperature
|
-40 ℃ ~ 70 ℃
|
|
Explosion-Proof
|
Exia Ⅱ CT4
|
|
Alarm mode
|
Sound, light, vibration
|
|
Dimensions
|
205*75*32mm
|
|
Recovery Time
|
≤ 10S
|
|
Linearity error
|
≤ ± 1%
|
|
Display
|
LCD dot matrix display technology
|
|
Gas unit
|
Support for multiple gas unit switch display
|
|
Humidity
|
0-95% RH
|
|
Degree of protection
|
IP66
|
|
Weight(net/gross)
|
330g
|
|
Standard
|
1 host computer,
1 charging plug, 1 aluminum alloy packing box, 1 manual,1 warranty card. |
|
Optional
|
data download (EXCEL format) function, detachable needle,
hose, holster, waterproof and dust-proof filter, high temperature probe (up to 1200 degrees) |
Usage scenario
1.Furniture, flooring, wallpaper, paint, gardening, interior decoration and renovation, dyes, paper, pharmaceutical, medical, food, corrosion
2.Disinfection, chemical fertilizers, resins, adhesives and pesticides, raw materials, samples, process and breeding plants, waste treatment plants, perm places
3.Biopharmaceutical production workshops, home environment, livestock breeding, greenhouse cultivation, storage and logistics, brewing fermentation, agricultural production
