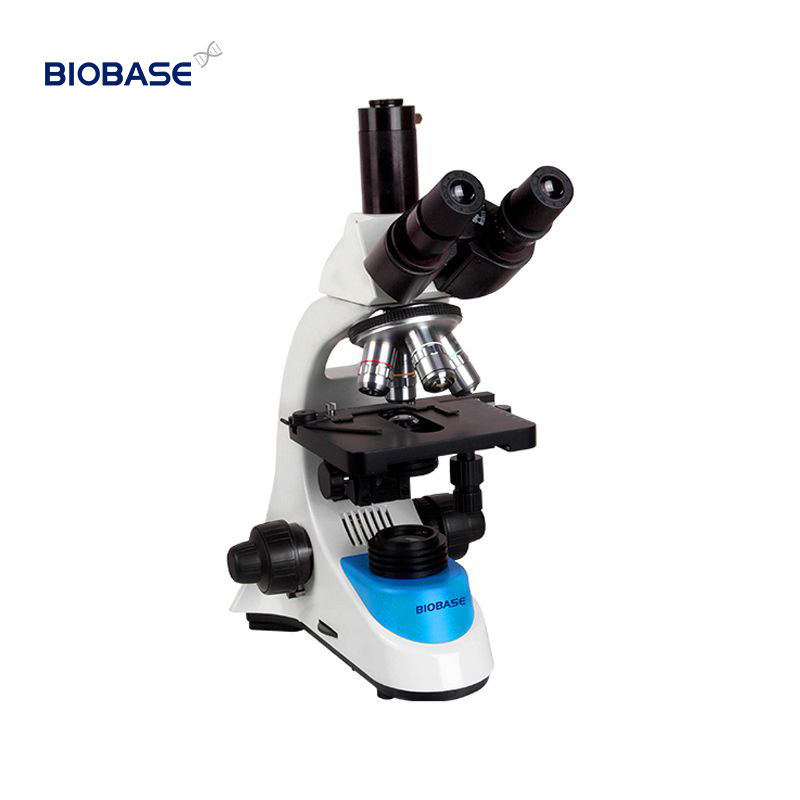

Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BIOBASE
-
Model Number:
-
XS-208BP
-
Model:
-
XS-208BP
-
Viewing Head:
-
Head Sliding Binocular Head Inclined at 45
-
Nosepiece:
-
Ball Beating Quadruple Nosepiece
-
Eyepiece:
-
WF10X/18mm
-
Objective:
-
Achromatic 4X,10X,40X(S)100X(S,Oil)
-
Stage:
-
Double Layer Mechanical Stage 135*140mm
-
Condenser:
-
ABBE NA1.25 condenser with Iris Diaphragm
-
Illumination:
-
Build-in Illumination,Halogen lamp 6V/20W
-
Power supply:
-
AC110/220V±10%,50/60Hz
-
Package:
-
Cartoon with foam
Quick Details
-
Warranty:
-
1 Year
-
Theory:
-
Biological Microscope
-
Drawtube:
-
BINOCULAR
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BIOBASE
-
Model Number:
-
XS-208BP
-
Model:
-
XS-208BP
-
Viewing Head:
-
Head Sliding Binocular Head Inclined at 45
-
Nosepiece:
-
Ball Beating Quadruple Nosepiece
-
Eyepiece:
-
WF10X/18mm
-
Objective:
-
Achromatic 4X,10X,40X(S)100X(S,Oil)
-
Stage:
-
Double Layer Mechanical Stage 135*140mm
-
Condenser:
-
ABBE NA1.25 condenser with Iris Diaphragm
-
Illumination:
-
Build-in Illumination,Halogen lamp 6V/20W
-
Power supply:
-
AC110/220V±10%,50/60Hz
-
Package:
-
Cartoon with foam
Product Description
Specification
|
Specification
|
Model
|
|
|
|
|
|
|||||
|
|
XS-208A
|
XS-208B
|
XS-208C
|
XS-208AP
|
XS-208BP
|
XS-208AB
|
|||||
|
Viewing Head
|
Sliding Binocular Head Inclined at 45?
|
√
|
|
|
|
|
|||||
|
|
Sliding Trinocular Head Inclined at 45?
|
|
√
|
|
|
|
|||||
|
|
Compensation Free Binocular Head inclined at30?
|
|
|
|
√
|
|
|||||
|
|
Compensation Free Trinocular Head inclined at30?
|
|
|
√
|
|
√
|
|||||
|
Nosepiece
|
Ball Beating Quadruple Nosepiece
|
√
|
√
|
√
|
√
|
√
|
|||||
|
Eyepiece
|
WF10X/18mm
|
√
|
√
|
√
|
√
|
√
|
|||||
|
Objective
|
Achromatic 4X,10X,40X(S)100X(S,Oil)
|
√
|
√
|
|
|
√
|
|||||
|
|
InfinitePlanAchromatic 4X,10X,40X(S)100X(S,Oil)
|
|
|
√
|
√
|
|
|||||
|
Stage
|
Double Layer Mechanical Stage 135*140mm
|
√
|
√
|
√
|
√
|
√
|
|||||
|
Condenser
|
ABBE NA1.25 condenser with Iris Diaphragm &filter,rack&pinion adjustable
|
√
|
√
|
√
|
√
|
√
|
|||||
|
Illumination
|
Build-in Illumination,Halogen lamp 6V/20W
|
√
|
√
|
√
|
√
|
√
|
|||||
|
Power supply
|
AC110/220V±10%,50/60Hz
|
√
|
√
|
√
|
√
|
√
|
|||||
|
Accessories
|
Photo attachment, Videoattachment
|
|
√
|
√
|
|
√
|
|||||
|
|
Dark fieldcondenser,Polarization set ,Phase contrast kit
|
√
|
√
|
√
|
√
|
√
|
|||||
|
Package
|
Cartoon with foam
|
√
|
√
|
√
|
√
|
√
|
|||||
|
Package size
|
250*360*460mm
|
√
|
√
|
√
|
√
|
√
|
|||||
|
Gross weight
|
8kg
|
√
|
√
|
√
|
√
|
√
|
|||||
