Quick Details
-
Brand Name:
-
GRL
-
Model Number:
-
HGLZ
-
Max. Current:
-
160A
-
Metal material:
-
Copper silver contact
-
Rated voltage:
-
400V
-
Rated current:
-
200A
-
Housing material:
-
DMC,Pa66
-
Mechanical Life:
-
800 Times
-
Product:
-
change over switch 63a
-
OEMDOM:
-
Yes
-
Pole:
-
3P or 4P
-
Standard:
-
IEC60947-6-1
-
Usage:
-
Low voltage
-
Certification:
-
CE
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
400V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GRL
-
Model Number:
-
HGLZ
-
Max. Current:
-
160A
-
Metal material:
-
Copper silver contact
-
Rated voltage:
-
400V
-
Rated current:
-
200A
-
Housing material:
-
DMC,Pa66
-
Mechanical Life:
-
800 Times
-
Product:
-
change over switch 63a
-
OEMDOM:
-
Yes
-
Pole:
-
3P or 4P
-
Standard:
-
IEC60947-6-1
-
Usage:
-
Low voltage
-
Certification:
-
CE
Product Description

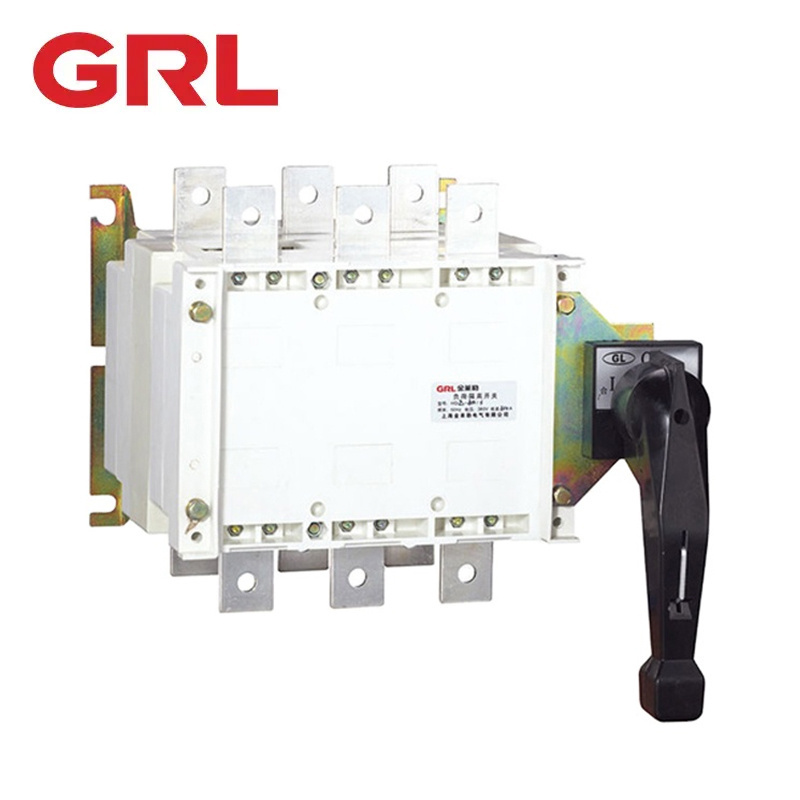

HGLZ1 Manual Transfer Switch
HGLZ1 manual transfer switch rated voltage 415V, the maximum current of 1600A, for two low-voltage circuit switching or two load equipment conversion or security isolation.
Operation is divided into cabinet operation and cabinet operation of two, according to the need to be equipped with two sets of auxiliary contacts.
| Conventional current | 160 | 250 | 400 | 630 | 1600 |
| Rated current In(A) | 100A TO 160A | 160A TO 250A | 250A TO 400A | 400A TO 630A | 630A TO 1600A |
| Rated insulation voltage Ui (V) | 690V | 690V | 690V | 690V | 690V |
| Dielectr Conventional current c strength (V) | 5000 V | ||||
| Rated surge-resistant voltage Uimp KV | 6 | ||||
|
Rated working current (AC380 AC-21) |
160 | 250 | 400 | 630 | 1600 |
|
Rated working current (AC660 AC-21) |
160 | 250 | 400 | 630 | 1600 |
