Quick Details
-
Model Number:
-
40L Acetylene Cylinder
-
Brand Name:
-
Acetylene gas Cylinder
-
Nominal Capacity:
-
40L
-
Nominal Diameter:
-
250mm
-
Limited Filling Pressure(15c):
-
1.52Mpa
-
Hydrostatic Test Pressure:
-
5.2Mpa
-
Air Test Pressure:
-
3Mpa
-
Compressive Strength:
-
≥1.8N/mm2
-
Porosity:
-
90~92%
-
Volume Density:
-
≤270g/L
-
Shoulder Axia Gap:
-
≤2.5mm
-
Filling Gas Quantity:
-
approx7.2kg
Quick Details
-
Material:
-
Steel
-
Use:
-
Acetylene
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
40L Acetylene Cylinder
-
Brand Name:
-
Acetylene gas Cylinder
-
Nominal Capacity:
-
40L
-
Nominal Diameter:
-
250mm
-
Limited Filling Pressure(15c):
-
1.52Mpa
-
Hydrostatic Test Pressure:
-
5.2Mpa
-
Air Test Pressure:
-
3Mpa
-
Compressive Strength:
-
≥1.8N/mm2
-
Porosity:
-
90~92%
-
Volume Density:
-
≤270g/L
-
Shoulder Axia Gap:
-
≤2.5mm
-
Filling Gas Quantity:
-
approx7.2kg

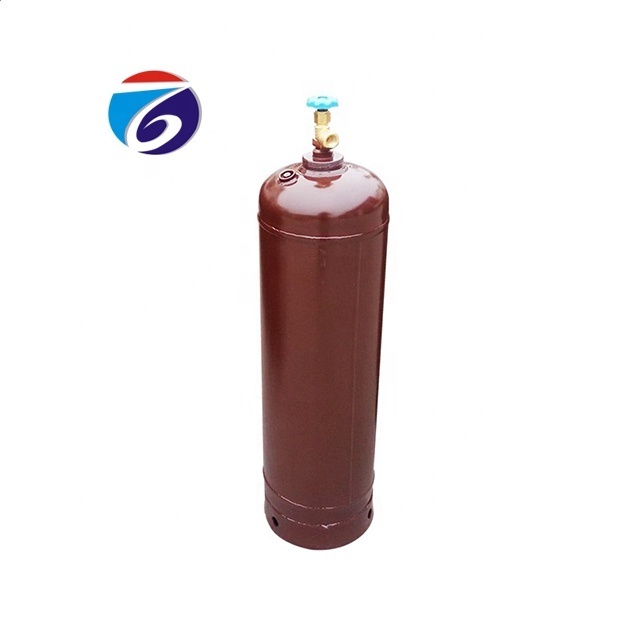

Newly Designed Acetylene Cylinder Used Acetylene Gas Cylinder
acetylene cylinder:
Diameter:250mm
Height:1040mm
Wallthickness:3.3mm
Weight:40kg
Working pressure:3MPa
Testing pressure:5.2MPa
Valve:QF-15A
Material:Hp295
Color could be painted according to customer's special requirement
|
Nominal Capacity |
40L |
|
|
Nominal Diameter |
250mm |
|
|
Limited Filling Pressure(15c) |
1.52Mpa |
|
|
Hydrostatic Test Pressure |
5.2Mpa |
|
|
Air Test Pressure |
3 Mpa |
|
|
|
Compressive Strength |
≥1.8N/mm2 |
|
Porosity |
90~92% |
|
|
Volume Density |
≤270g/L |
|
|
Shoulder Axia Gap |
≤2.5mm |
|
|
Solvent |
acetone |
|
|
Filling Gas Quantity |
About7.2kg approx7.2kg |
|
|
Environmental Temperature |
under 40 |
|
The main technical targets
1,Material Porosity:90~92%
2,Material Volume Density:≤270g/L
3,Material Compressive Strength:≥1.8N/mm2
4,Fusible Alloys Operating Temperature:100±5℃
Pass the followed tests
1,falling and tempering test
2,analogue fire test
3,water bath.heating-up test
4,operation performance test
half PP bag
1.Reply your enquiry in 24 working hours.
2.Cylinder color could be painted according to customer's requirements.
3.Valve could be changed according to customer's requirements.
4.Customer name could be engraved or painted on cylinder.
5.OEM service available, customer brand offered.
