Our AB Potting machine helps AB compounds offer superior protection for electronic circuits industry
Our Universal equipment is widely works for epoxies, silicones and polyurethane compounds , we configure different functions for the features of different compound to meet up with the production purposes .
Epoxies, silicones and polyurethane are among the most frequently used potting compounds. These can be applied to PCBs,PCBA,capacitors,power electronics, LED lighting, sensors, and more. Some of the desired properties include good adhesion,excellent electrical insulation, thermal stability, super chemical resistance, low shrinkage upon curing, an appropriate coefficient of thermal expansion (CTE), and suitable viscosity for the specific application. Formulations can be blended to provide a balance of these and other properties through careful selection of resin, agent, and fillers.
OUR equipment with pre-heat functions that helps the pre-heat the AB compound in tank in advance to keep a good flow-ability.Good liquidity helps resin flow into product easily and evenly.
OUR machine with tank stirring vacuum degas functions ,which can help compounds to remove air bubble easily and arrived the good potting status .
Removing air bubbles is very important.Vacuum degassing remains a critical processing step. The best technique for vacuum degassing is referred to as "bumping degas" which is alternately pulling and relaxing a vacuum in 30- to 60-second cycles.
Machine Congigurations
Introduction :
1. Working Mode: controlled by PLC module and MCGS touch screen.
2.High precision valve: high speed, glue off clean, no glue drawing, no dropping.
3. Core metering pump specially design for different material from low to high viscosities.
4. Mix glue A & B more evenly; no more or no less for agent B.
Working principle :
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
Tank system technology:
1. Stainless panel vacuum pressure tank which can bear negative pressure of inner tank .
2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature.
3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level .
4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure .
5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve.
6 Tank with heater which can preheat materials to assure good flowability .
7 Tank with artificial feeding mouth that can be added glue appropriately by hand .
8 Tank with silica-dryer which can prevent material especially PU from crystallization .
Pump technology
1. our plunger pumps work by durable motors.
2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.
3.Also Suitable for high viscosity glue: 50cps~35000cps.
4. Suitable for big flow dispensing or slight flow dispensing.
5. Suitable for frequent start and stop dispensing.
6. Anti-wear, Anti-corrosion, super long life time.
Valve technology
This valve is designed for any 2K (two-part) dispensing, encapsulation or potting applications. Controlled by compressed air, the balanced valve core design has integrated valve suck-back to eliminate unwanted material dripping and reduces product waste. Suitable for epoxy resins, silicone resins, acrylics, polyurethanes, and thermally conductive materials.
PLC operation Controlling System
1 Dispensing volume is controlled by the speed of pump's motors ; Glue speed adjustable within the speed range .
2 Machine with detecting function that detect the speed and running time of pumps to ensure the ratio reliability.
3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .
4 Machine with gel resistance calculator , which prevent the mixture curing inside .
5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .
6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .
7 Reserved PLC communication interface, which easy connecting with outside device .
8 Equipped with a safety lock to prevent staff from wrong operation .
Epoxy resin electronic products machinery vacuum casting machine pu glue machine automatic ab glue machine adhesive machines
Our Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.
More machine types and designs to suits for different application processes requirements
XYY meter mix movable system (Automatic gluing dispensing machine )
More machine serious are for your optional
Our equipment are designed to mix and dispense adhesives accurately and apply resin to filteraccurately by 3-axis dispensing robot.
Some machines dispense only one mix ratio, while our machine can cover a range of ratios.
The filter manufacturer can quickly recoups the investment through using our equipment , since the high productivity can savings the cost for bulk production.
Applications:
1.Potting&isulation&Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor,
circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....
.Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling ....
|
Models：
|

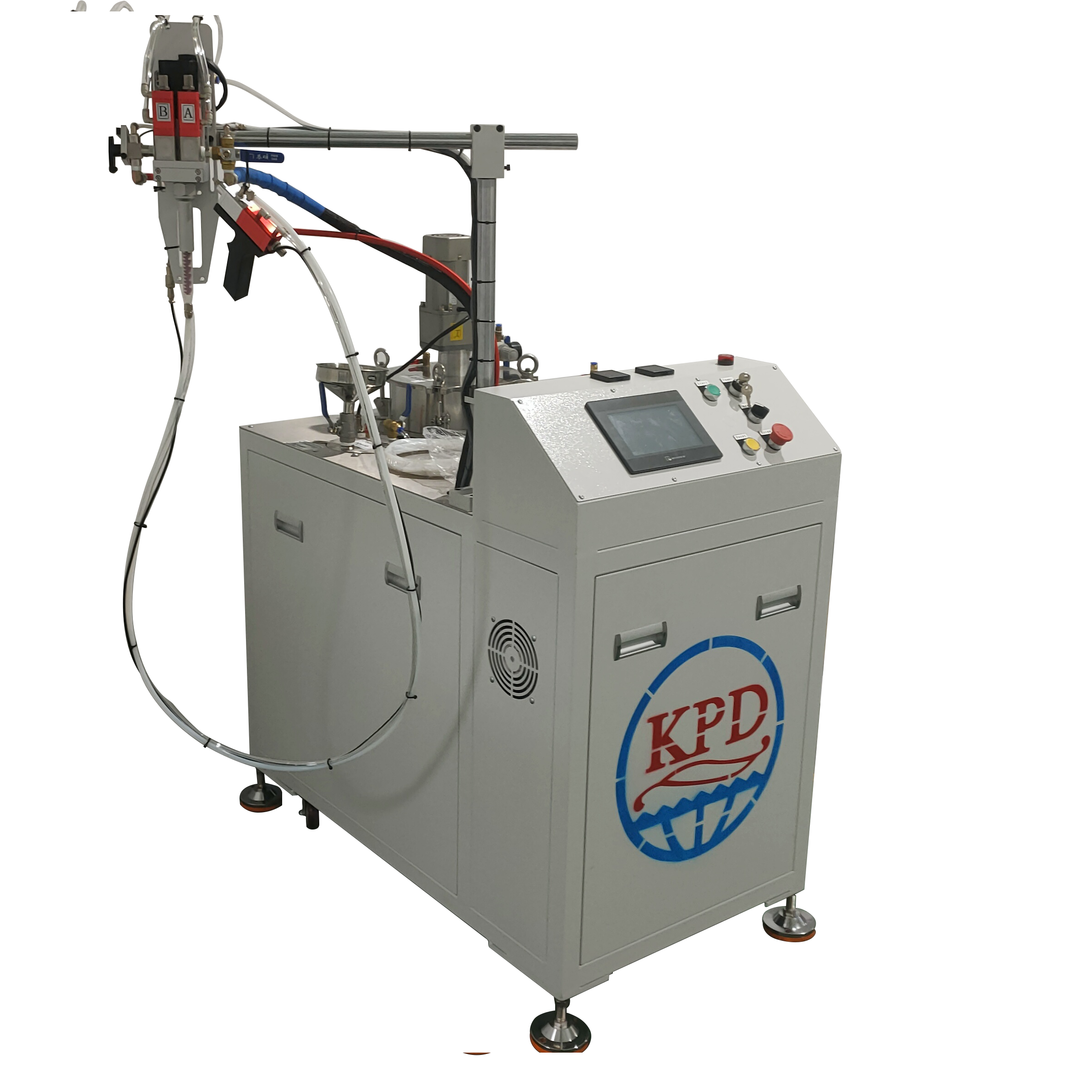

KPD-500 Automatic Multifunctional Glue Potting Machine
|
|
Suitable process：
|
It can be used as a stand-alone machine or with the customer’s original assembly line to achieve on-line gluing.
|
|
Proportion of glue:
|
10：1 – 1：1
|
|
hybrid approach:
|
Dynamic stirring mixing/static
|
|
Machine Stroke:
|
500x500x100mm
|
|
speed
|
X、Y axle 400mm/s
|
|
accurate
|
±0.05mm
|
|
Programme stock：
|
999
|
|
programmer
|
Teach-In Programming
|
|
metrological：
|
High precision metering pumps
|
|
control method：
|
PLC+touchscreens
|
|
input method：
|
Touch screen + buttons + IO
|
|
Appearance Material：
|
Industrial square tube welding + 6061 alloy + cold rolled plate
|
|
Drum size：
|
A barrel 30L, B barrel 10L (can be customised)
|
|
External Dimensions：
|
1100×1350 X1600mm
|
|
Gum flow rate：
|
1–80g/5sec (customised large glue volume available)
|
|
trajectory：
|
Punching points, walking straight lines, curves, drawing circles, arcs, squares, and other irregular shapes.
|
|
Supply Voltage：
|
AC220V/50HZ
|
