Quick Details
-
Voltage:
-
380V,50HZ,3Phase.
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BZB
-
Model Number:
-
BZB-T8000
-
colors::
-
optional
Quick Details
-
Power:
-
17KW
-
External Size:
-
L-W-H 7-5.36-3.43m
-
Internal Size:
-
L-W-H 6.9-4-2.65m
-
Voltage:
-
380V,50HZ,3Phase.
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BZB
-
Model Number:
-
BZB-T8000
-
colors::
-
optional
|

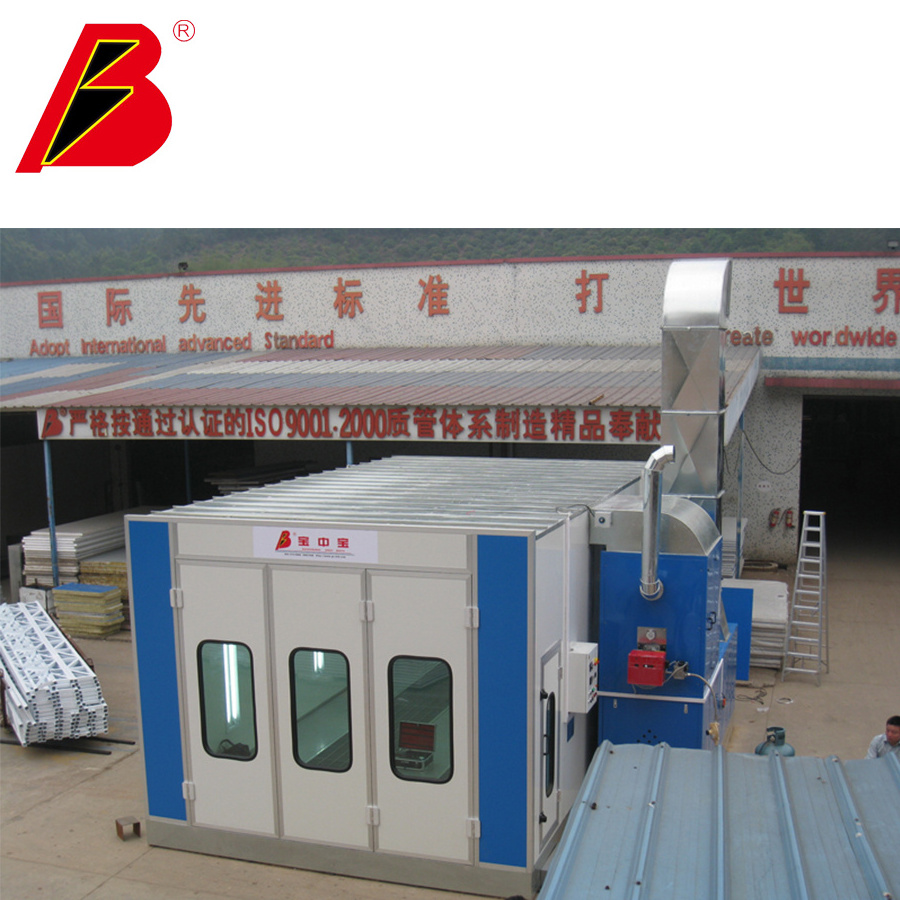

BZB-T8000 SPRAY BOOTH
|
|||
|
Outside Size:(mm) |
7000x5360x3430 |
Front Door:(mm) |
3000(w)x2700(h) |
|
Inside Size:(mm) |
6900x4000x2800 |
Total Power:(kw) |
17 |
|
Cabin System |
Wallboard |
EPS (epispastics polystyrene)Colorful Steel Skin Boards,50mm Thick, Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame ,Anti-flame and Heat-Insulation |
||||
|
Basement |
Galvanized steel sheet and square steel pipe assembling Grid & embossed steel plate, Embossed Steel Ramps. |
|||||
|
Air Circulation System |
Inhaling Ventilator |
Model: DDF 610 |
Exhaust Ventilator |
Model: DDF 610 |
||
|
Blower Capacity: 25000m3/h |
Blower Capacity:25000m3/h |
|||||
|
Pressure: 650Pa |
Pressure: 650Pa |
|||||
|
Rolling Speed: 1750rpm |
Rolling Speed: 1750rpm |
|||||
|
Power: 7.5kw |
Power: 7.5kw |
|||||
|
Quantity: 1 sets |
Quantity: 1set |
|||||
|
Air Volume: 25000m3/h; Air Speed: 0.35m/s |
||||||
|
Air Purification System |
Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μ m. Ceiling Filter Capture Granules Bigger than 4 μ m. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air Pressure Gauge, TSP ≤ 1.4mg/m3 |
|||||
|
Heating System |
Burner |
Italy Riello Brand,RG20 Diesel Burner, 180000Kcal/h, 20N Damp Motor |
||||
|
Heat Energy Converter |
SUS304 Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85% |
|||||
|
Max Temp:80 centi degree,Heating Time: 4-5min(20-60 centi degree ), Fuel Consumption: 4-5kg/vehicle |
||||||
|
Light System |
Ceiling Light: 32 pcs 36w Philips Lamp; Side Light: 16 pcs 36w Philips Lamp, 1000 Lux, the light glass is clear and tempered throughout |
|||||
|
Electric Controlling System |
Micro Computer Programme Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm, failure alarm, timer |
|||||
|
Environmental System |
Multi-Layer Fiber glasses Filter, active-carbon, and ensure a qualified exhaust according to the relevant state standards |
|||||
