Quick Details
-
Product name:
-
Reliability Wireless Magnetic Garage Door Tilt Sensor
-
Transmitter Frequency:
-
345.000 MHz (crystal controlled) or other frequency
-
Supervisory Interval:
-
70 minutes
-
External Input:
-
Accepts N/C dry contact devices
-
External Input Sampling Current:
-
20 uA
-
Magnet Dimensions (LxWxH):
-
1.5 x 0.37 x 0.26 in. (3.8 x 0.94 x 0.65 cm)
-
Sensor Dimensions (LxWxH):
-
2.59 x 1.03 x 0.52 in. (6.59 x 2.63 x 1.32 cm)
-
Housing Material:
-
ABS plastic
-
Color:
-
White, Tan or Brown available
-
Certificate:
-
CE Rohs
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SENTEK
-
Model Number:
-
WC10-H
-
Product name:
-
Reliability Wireless Magnetic Garage Door Tilt Sensor
-
Transmitter Frequency:
-
345.000 MHz (crystal controlled) or other frequency
-
Supervisory Interval:
-
70 minutes
-
External Input:
-
Accepts N/C dry contact devices
-
External Input Sampling Current:
-
20 uA
-
Magnet Dimensions (LxWxH):
-
1.5 x 0.37 x 0.26 in. (3.8 x 0.94 x 0.65 cm)
-
Sensor Dimensions (LxWxH):
-
2.59 x 1.03 x 0.52 in. (6.59 x 2.63 x 1.32 cm)
-
Housing Material:
-
ABS plastic
-
Color:
-
White, Tan or Brown available
-
Certificate:
-
CE Rohs

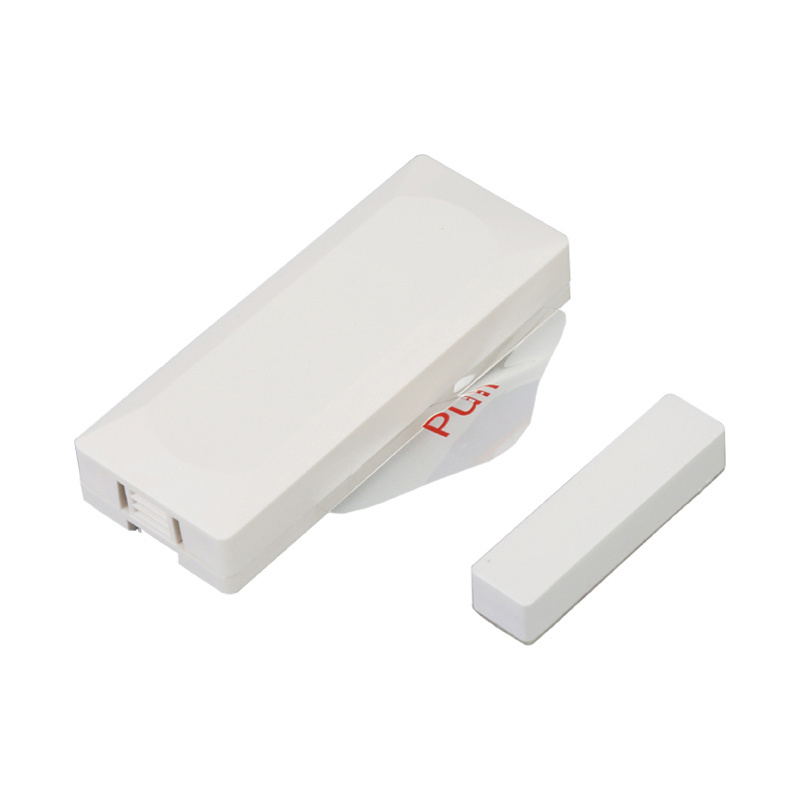

Reliability Wireless Magnetic Garage Door Tilt Sensor
The WC10 is a surface mounted Door/Window Contact that can be installed on doors, windows, and many other objects that open and close. The sensor transmits signals to the control panel or receiver when a magnet mounted near the sensor is moved away from or closer to the sensor. The sensor has an external input that accepts N/C dry contact devices. The sensor is also equipped with a cover tamper for additional security.
Specification:
Reliability Wireless Magnetic Garage Door Tilt Sensor
Models available
WC10-H:compatible with Honeywell wireless panel(345MHZ)
WC10-2:compatible with 2GIG wireless panel(345MHZ)
WC10-G:compatible with GE intelogix wireless panel(319.508MHZ)
WC10-D:compatible with DSC wireless panel(433.92MHZ)
