Quick Details
-
Brand Name:
-
DAFNG
-
Power:
-
143.8KW
-
Dimension(L*W*H):
-
5300*4500*2750MM
-
Weight:
-
19000
-
Name:
-

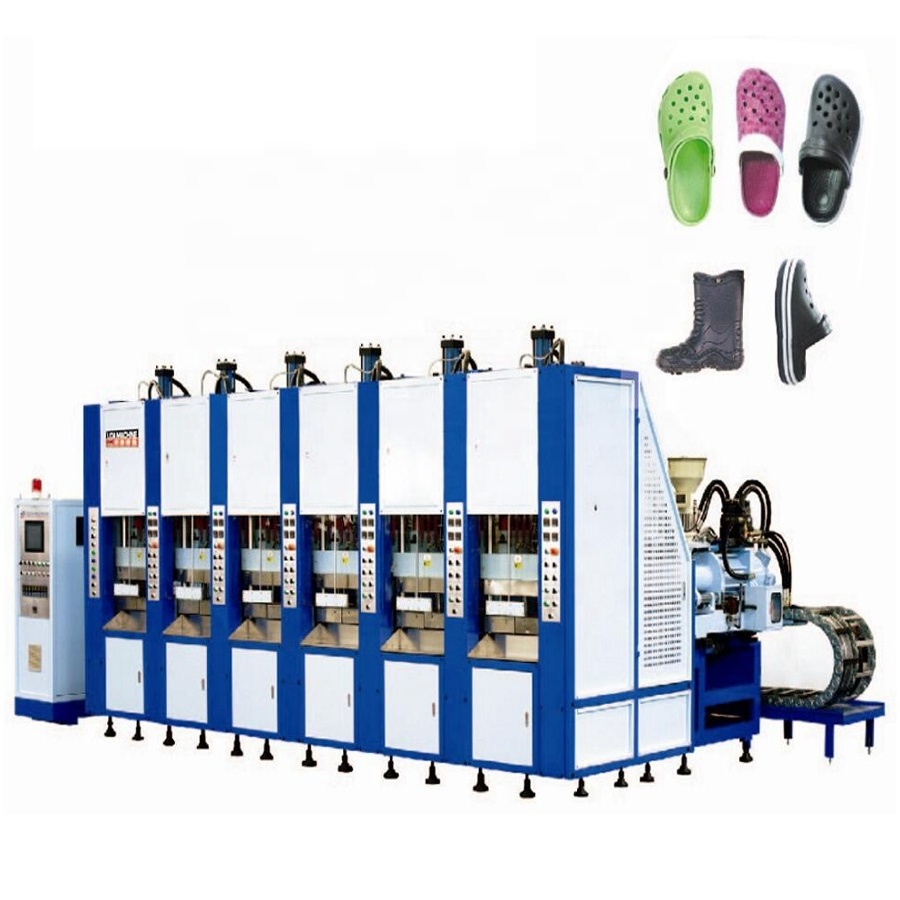

Eva Injection Moulding Machine
-
Application:
-
EVA SOLE
-
Function:
-
Making EVA Shoe Sole
-
Keywords:
-
Shoe Sole Making EVA Foam Injection Moulding Machine
-
Product name:
-
EVA Foam Injection Molding Machine
-
Key words:
-
injection moulding machine
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Spare Parts
Quick Details
-
Production Capacity:
-
6000
-
Voltage:
-
AC380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DAFNG
-
Power:
-
143.8KW
-
Dimension(L*W*H):
-
5300*4500*2750MM
-
Weight:
-
19000
-
Name:
-
Eva Injection Moulding Machine
-
Application:
-
EVA SOLE
-
Function:
-
Making EVA Shoe Sole
-
Keywords:
-
Shoe Sole Making EVA Foam Injection Moulding Machine
-
Product name:
-
EVA Foam Injection Molding Machine
-
Key words:
-
injection moulding machine
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Spare Parts
Specification
|
ITEM
|
UNIT
|
DF-2001S2-C
|
DF-2002S2-C
|
DF-2004S2-C
|
|
Work station
|
|
1
|
2
|
4
|
|
clamping force
|
T
|
200
|
200
|
200
|
|
Mould-holder Dimension
|
mm
|
290*550*2
|
290*550*2
|
290*550*2
|
|
Mould height
|
mm
|
100-270
|
100-270
|
100-270
|
|
Max mould opening stroke
|
mm
|
350
|
350
|
350
|
|
Independent Temperature Control
|
No.
|
4*4
|
4*4
|
4*4
|
|
Heat way
|
|
加热器Heater
|
加热器Heater
|
Heater
|
|
Heating power
|
KW
|
12.8
|
12.8
|
12.8
|
|
Quantity of injection Gun
|
No.
|
1
|
2
|
2
|
|
Charging Screw Diameter
|
mm
|
60/65/70
|
60/65/70
|
60/65/70
|
|
Max. Injection Capacity
|
cm3
|
905 980 1060
|
905 980 1060
|
905 980 1060
|
|
Rotating speed of charging screw
|
Rpm
|
0-260adjustable
|
0-260adjustable
|
0-260adjustable
|
|
Distribution of Temperature Control Zone for Material Pipe
|
No.
|
4
|
4
|
4
|
|
Injection Pressure
|
Bar/cm3
|
1130
|
1130
|
1130
|
|
Electric Heating Consunption of Injection Unit
|
KW
|
11.5
|
11.5
|
11.5
|
|
Electric Heating Consunption of Heating Plate
|
KW
|
25.6
|
25.6
|
51.2
|
|
Motor of Hydraulic Pressure Unit
|
KW
|
18.5
|
37
|
55.5
|
|
Total Power Consumption
|
KW
|
44
|
92.69
|
118.8
|
|
Dimension of Machine
|
m
|
1.8*4.5*2.75
|
3.5*4.5*2.75
|
5.3*4.5*2.75
|
|
Weight of Machine
|
Tonnage
|
7
|
11
|
20.6
|
