Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
900*850*1250mm
-
Weight:
-
120 kg
-
Product name:
-
dry grass crushing machine
-
Hammer number:
-
24
-
Speed:
-
4000rpm
-
Feed port:
-
320*280mm
-
Capacity:
-
500-1500kg/h
-
Raw material:
-
dry grass, corn cob, corn stalk, nut shell and so on
-
Function:
-
for crushing dry grass, corn cob, corn stalk
Quick Details
-
Max. Capacity:
-
500-1500kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
UD
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
900*850*1250mm
-
Weight:
-
120 kg
-
Product name:
-
dry grass crushing machine
-
Hammer number:
-
24
-
Speed:
-
4000rpm
-
Feed port:
-
320*280mm
-
Capacity:
-
500-1500kg/h
-
Raw material:
-
dry grass, corn cob, corn stalk, nut shell and so on
-
Function:
-
for crushing dry grass, corn cob, corn stalk

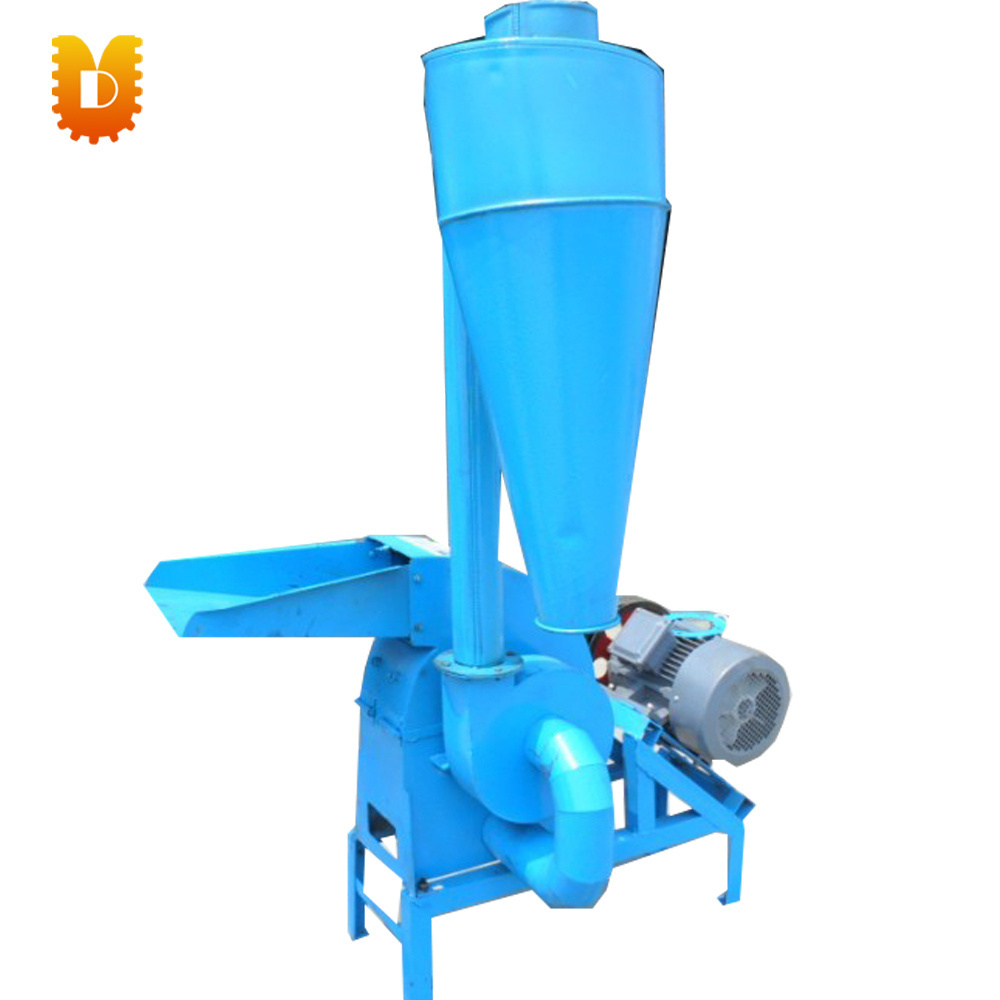

9FQ dry grass crushing machine/corn cob grinding machine/nut shell pulverizer with cyclone
screen
inside
Technical parameters for corn stalk crushing machine
|
Model |
UD9FQ-500 |
|
Power |
15kw |
|
Hammer number |
24 |
|
Speed |
4000rpm |
|
weight |
120kg |
|
dimension |
900*850*1250mm |
|
Feed port |
320*280mm |
|
Capacity |
500-1500kg/h |
Features
Suitable for grinding corn, wheat, beans, grains, straw, vines, dry fresh potato, leaves the shell, such as food and feed, can also be shattered wood, branch, gypsum, aluminum powder, rare earth, chemical, pottery clay, coal and other minerals low hardness, and can crush a variety of traditional Chinese .
Working principle
When working, the material to be processed from the hopper into the crushing chamber, by the high-speed rotation of the working parts of the fight against and rupture, while changing the direction of movement of the material, due to high-speed rotation of the working parts of the destruction of the material layer deposition, In this process, the particles are repeatedly subjected to the impact of the working parts and the body and the collision between the particles, friction, which is gradually crushed to the geometric diameter is less than the diameter of the screen in the centrifugal force and airflow under the action of crushed material Through the sieve hole into the crushing chamber from the discharge port.
