Quick Details
-
Panel Size:
-
5 inch
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
LCD500
-
Pixel Pitch:
-
800*480, N/A
-
Specification:
-
Desktop
-
Display Method:
-
TFT - LCD Display(5 inch COLOR PANEL)
-
Resolution:
-
480*272 or 800*480
-
Number of characters:
-
40 character(20columnsx2line )
-
Brightness:
-
>350cd/m2
-
Character font:
-
24*48/40*80 dot matrix
-
Character type:
-
95 Alphanumeric,32 international characters
-
Character size:
-
8(H)x5.25(W)mm
-
Dot size(XxY):
-
0.23x0.23mm
-
Power Consumption:
-
5-24 VDC
-
Product name:
-
OEM USB Power 5 Inch LCD Screen Customer Display For Pos System
Quick Details
-
Application:
-
Indoor, Semi-outdoor, Pos System
-
Brand Name:
-
OCOM/OEM/Neutral
-
Color:
-
Black
-
Panel Size:
-
5 inch
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
LCD500
-
Pixel Pitch:
-
800*480, N/A
-
Specification:
-
Desktop
-
Display Method:
-
TFT - LCD Display(5 inch COLOR PANEL)
-
Resolution:
-
480*272 or 800*480
-
Number of characters:
-
40 character(20columnsx2line )
-
Brightness:
-
>350cd/m2
-
Character font:
-
24*48/40*80 dot matrix
-
Character type:
-
95 Alphanumeric,32 international characters
-
Character size:
-
8(H)x5.25(W)mm
-
Dot size(XxY):
-
0.23x0.23mm
-
Power Consumption:
-
5-24 VDC
-
Product name:
-
OEM USB Power 5 Inch LCD Screen Customer Display For Pos System

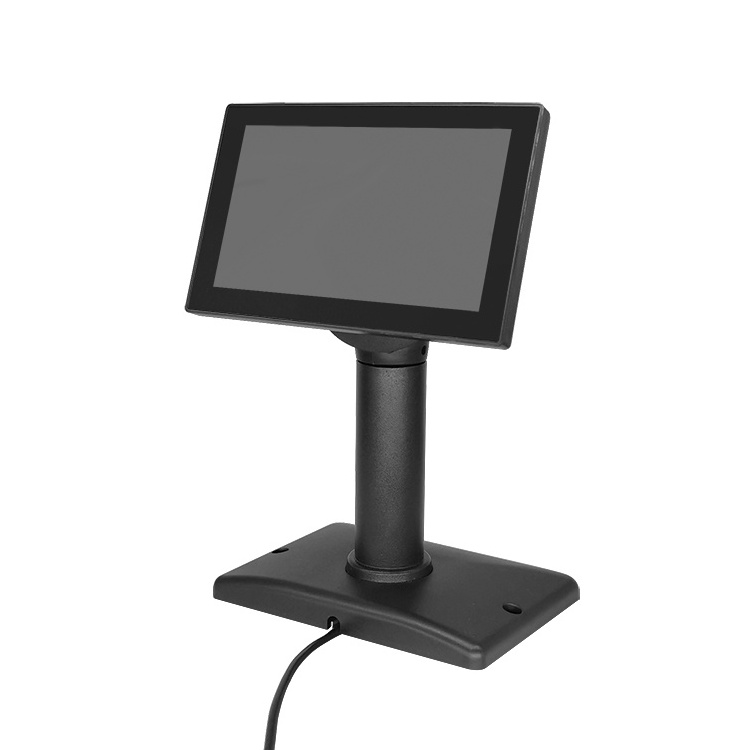

OEM USB Power 5 Inch LCD Screen Customer Display For Pos System
(Model: LCD500)
Features:
- Support OPOS driver
- Compatible with 15 kinds command,like ESC/POS,CD5220 and so on..
- Compatible with 20 countries Languages,other languages can be customized
- Provide custom setup software all customizations can be done by the end user
- Support setting booting image
- Three display areas can setting background color and character color
- Top display area can setting logo and fixed characters
- The middle display area can be switched to 2*20 characters or 4*20 characters display
- The bottom display area supports custom scrolling play characters
Specification:
|
General |
Display Method |
TFT - LCD Display(5 inch COLOR PANEL) |
|
Number of characters |
40 character(20columns×2line )/ 80 character(20colums×4 line) |
|
|
Brightness |
>350cd/m2 |
|
|
Resolution |
480*272 or 800*480 |
|
|
Character font |
24*48/40*80 dot matrix |
|
|
Character type |
95 Alphanumeric,32 international characters |
|
|
Character size |
8(H)×5.25(W)mm |
|
|
Dot size(X×Y) |
0.23×0.23mm |
|
|
Panel Dimension |
113.5(L)mm×65.5(W)×40(H) |
|
|
Pole Dimension |
Per support length:163(L)×27.65(DIA)mm/ 80(L)×27.65(DIA)mm |
|
|
Base Dimension |
126(L)×89(W)×13.5(H)mm |
|
|
Viewing Angle |
Max.135° |
|
|
Horizontal Rotation |
Max.355° |
|
|
Weight |
490 grams/506grams |
|
|
Commands Mode |
15 kinds, E.g LD220, ESC/POS, AEDEX, UTC/S, UTC/P, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL etc |
|
|
Language Support |
CP437, Katakana, CP850, CP860, CP863,CP865, WCP1252, CP857, WCP1250, WCP1253,WCP1255, WCP1251, CP866, CP852, CP737, CP858, CP864,WCP1257, WCP1258,Tai(CP874) |
|
|
Interface |
RS-232(serial)/USB |
|
|
Connection |
Baud |
Direct connection 9600/19200/38400/57600/115200 bps |
|
Reliability |
MTBF |
30000 hours |
|
Power |
Consumption |
5-24 VDC |
