- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Model Number:
-
M16
-
Weight (KG):
-
32 KG
-
Marketing Type:
-
Other
-
Product name:
-
M16
-
Power (kW):
-
600W
-
Voltage:
-
220v
-
Power Type:
-
The ac power
-
Bearing Scope Of Thread:
-
M3-M16
-
Horizontal:
-
110mm
-
Vertical:
-
400mm adjustable
-
Color:
-
Customizable
-
Material:
-
Aluminum Steel Stainless Steel
-
Function:
-
Tapping Holes
Quick Details
-
type:
-
Drilling & Milling Machine
-
Max. Drilling Dia. (mm):
-
16
-
Range of Spindle Speed(r.p.m):
-
1 - 312 r.p.m
-
Place of Origin:
-
Henan, China
-
Model Number:
-
M16
-
Weight (KG):
-
32 KG
-
Marketing Type:
-
Other
-
Product name:
-
M16
-
Power (kW):
-
600W
-
Voltage:
-
220v
-
Power Type:
-
The ac power
-
Bearing Scope Of Thread:
-
M3-M16
-
Horizontal:
-
110mm
-
Vertical:
-
400mm adjustable
-
Color:
-
Customizable
-
Material:
-
Aluminum Steel Stainless Steel
-
Function:
-
Tapping Holes
Products Description
Electric tapping machine:
The electric tapping machine can easily tap lead, copper, steel, cast iron, pig iron, die steel, metal materials and other metal materials. It is suitable for all machinery manufacturing industries. It can complete ultra-deep hole tapping several times the diameter of the screw hole at one time, which is efficient and labor-saving, and can satisfy most Thread processing requirements.
Product features:
1.Servo drive control, intelligent torque protection.
2.Hidden trachea and oil pipe design, instant fuel injection technology.
3.One-piece design of fuel tank rack saves space.
4.Column, connecting shaft, copper sleeve with bearing.
5.High precision,both adding oil and blowing scraps when tapping could help to keep the screw taps clean,which could highly increase the tapping accuracy.
6.Tough and strong screw taps,which means adding oil and blowing scraps simultaneously to help tapping procedure more smoothly.
7.High tapping efficiency to spare manual work for adding oil and blowing scraps.
2.Hidden trachea and oil pipe design, instant fuel injection technology.
3.One-piece design of fuel tank rack saves space.
4.Column, connecting shaft, copper sleeve with bearing.
5.High precision,both adding oil and blowing scraps when tapping could help to keep the screw taps clean,which could highly increase the tapping accuracy.
6.Tough and strong screw taps,which means adding oil and blowing scraps simultaneously to help tapping procedure more smoothly.
7.High tapping efficiency to spare manual work for adding oil and blowing scraps.
Specification
|
Model
|
M12
|
M16
|
M24
|
M30
|
M36
|
M48
|
|||||
|
Voltage
|
220V or customizable
|
|
|
|
|
|
|||||
|
Power
|
600w
|
600w
|
1200w
|
1200w
|
1200w
|
1200w
|
|||||
|
Tapping range
|
M3-M12
|
M3-M16
|
M6-M24
|
M6-M30
|
M6-M36
|
M16-M48
|
|||||
|
Max. radlus
|
1000mm
|
1000mm
|
1200mm
|
1200mm
|
1200mm
|
1300mm
|
|||||
|
Way to work
|
vertical/universal
|
|
|
|
|
|
|||||
|
Tapping chuck
|
GT12,M3-M12
|
GT12,M3-M16
|
GT24,M6-M24
|
GT24,M6-M30
|
GT24,M6-M36
|
GT48,M16-M48
|
|||||
Details Images
Electric tapping machine.
Pneumatic tapping machine..

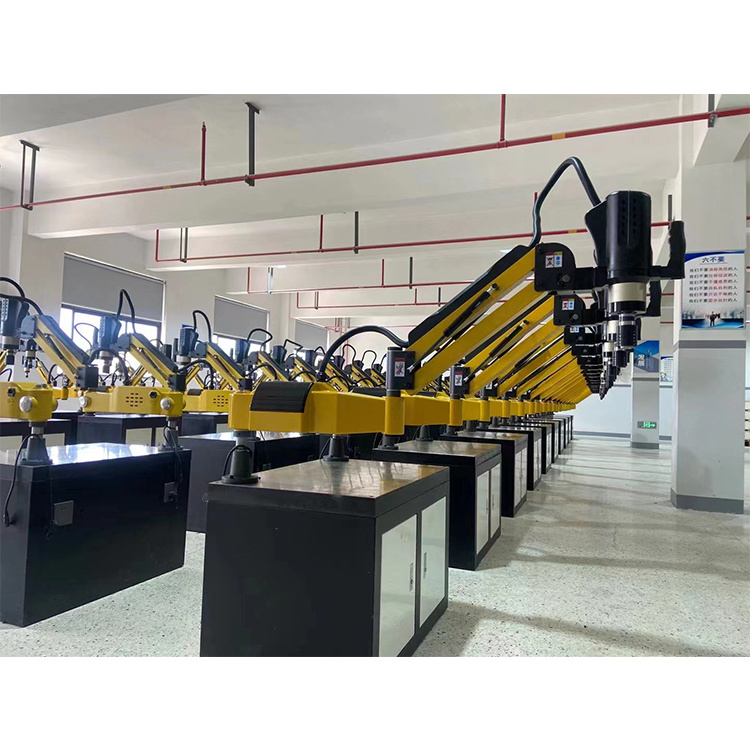

Workshop Overview
