- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
EQUIPMAX
-
Fork Length:
-
1070mm
-
Fork Width:
-
100mm
-
Overall Dimensions:
-
1610x880x2035mm
-
Weight (KG):
-
2150 kg
-
Type:
-
Counterbalanced Forklift Truck
-
Product Name:
-
Electric Forklift Truck
-
Power Type:
-
Battery
-
Load Capacity:
-
1000-1500kg
-
Mast:
-
3000-4500mm
-
Tire:
-
PU, Solid Rubber
-
Transmission:
-
Automatic
-
Options:
-
Side shifter, Fork positioner, Clamp, etc.
-
Color:
-
Yellow, Red, Orange, Blue
-
Warranty Period:
-
1 Year
Quick Details
-
Min. Lifting Height:
-
3000mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
EQUIPMAX
-
Fork Length:
-
1070mm
-
Fork Width:
-
100mm
-
Overall Dimensions:
-
1610x880x2035mm
-
Weight (KG):
-
2150 kg
-
Type:
-
Counterbalanced Forklift Truck
-
Product Name:
-
Electric Forklift Truck
-
Power Type:
-
Battery
-
Load Capacity:
-
1000-1500kg
-
Mast:
-
3000-4500mm
-
Tire:
-
PU, Solid Rubber
-
Transmission:
-
Automatic
-
Options:
-
Side shifter, Fork positioner, Clamp, etc.
-
Color:
-
Yellow, Red, Orange, Blue
-
Warranty Period:
-
1 Year
Product Description

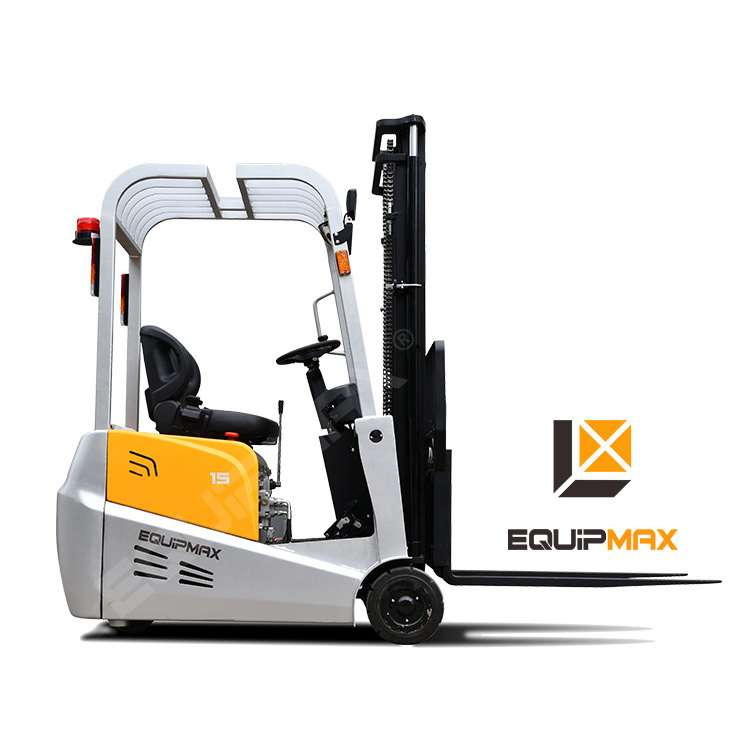

Equipmax 1.0-1.5T three wheel electric forklift adopts the latest technologies and ergonomics concepts in designing and manufacturing. The forklift with low cost of ownership, superior visibility, unmatched productivity, safety and ergonomics designing for operator. It can be widely used in factory, warehouse, logistic center and especially in cold storage and food industry.
| 1.1 | Brand | EQUIPMAX | EQUIPMAX | |
| 1.2 | Model | FB10S | FB15S | |
| 1.3 | Power Type | Electric | Electric | |
| 1.4 | Operation Type | Seated | Seated | |
| 1.5 | Load Capacity | Q(Kg) | 1000 | 1500 |
| 1.6 | Load Center | C(mm) | 500 | 500 |
| 1.7 | Front Overhang | X(mm) | 196 | 196 |
| 1.8 | Wheelbase | Y(mm) | 1130 | 1130 |
| 1.9 | Service Weight (With Battery) | kg | 2120 | 2150 |
| 3.1 | Wheel Type | Rubber + Polyurethane | Rubber + Polyurethane | |
| 3.2 | Driving Wheel | ∅×w(mm) | ∅230×110 | ∅230×110 |
| 3.3 | Front Wheel | ∅×w(mm) | ∅305×127 | ∅305×127 |
| 3.4 | Front Wheelbase | mm | 752 | 752 |
| 4.1 | Mast Tilting Angle (F/R) | α/β(°) | 2/4 | 2/4 |
| 4.2 | Mast Lowered Height | h1(mm) | 2035 | 2035 |
| 4.3 | Free Lift | h2(mm) | 0 | 0 |
| 4.4 | Lifting Height | h3(mm) | 3000 | 3000 |
| 4.5 | Mast Extended Height | h4(mm) | 3918 | 3918 |
| 4.6 | Height of Overhead Guard | h13(mm) | 1930 | 1930 |
| 4.7 | Fork Clearance When Mast Lowered | h(mm) | 35 | 35 |
| 4.8 | Overall Length (With Fork) | L1(mm) | 2680 | 2680 |
| 4.9 | Overall Length to Fork Face (Without Fork) | L2(mm) | 1610 | 1610 |
| 4.10 | Overall Width | b1(mm) | 880 | 880 |
| 4.11 | Fork Size | s/e/l(mm) | 35/100/1070 | 35/100/1070 |
| 4.12 | Fork Spread | b5(mm) | 210-580 | 210-580 |
| 4.13 | Min. Ground Clearance | m2(mm) | 60 | 60 |
| 4.14 | Aisle Width for Pallet 1000*1200 crossways | Ast(mm) | 2931 | 2931 |
| 4.15 | Min. Turning Radius | Wa(mm) | 1425 | 1425 |
| 5.1 | Max. Travel Speed (Unladen/Laden) | km/h | 5.2/5 | 5.2/5 |
| 5.2 | Lifting Speed (Unladen/Laden) | m/s | 0.135/0.095 | 0.135/0.090 |
| 5.3 | Lowering Speed (Unladen/Laden) | m/s | 0.085/0.120 | 0.085/0.120 |
| 5.4 | Max. Gradeability (Unladen/Laden) | % | 6/4 | 6/4 |
| 5.5 | Service Brake | Hydraulic+Electromagnetic | Hydraulic+Electromagnetic | |
| 6.1 | Drive Motor | kw | 1.5 AC | 2.5 AC |
| 6.2 | Lift Motor | kw | 3.0 DC | 3.0 DC |
| 6.3 | Battery | V/Ah | 24V 270Ah | 24V 270Ah |
| 6.4 | Charger | V/A | 24V/40A | 24V/40A |
| 6.5 | Type of Drive Control | AC | AC | |
| 6.6 | Sound Level at the Driver's Ear | dB(A) | 75 | 75 |
