Quick Details
-
Item:
-
Portable sprayer
-
Application:
-
agriculture spraying machine
-
Qty of carburetor:
-
double
-
Dimension:
-
118824*32
-
net weight:
-
8.5 Kg
-
Power source:
-
92# gasoline
-
Fuel tank capacity:
-
2.0 L
-
Fuel consumption:
-
3.5 L/H
-
Rated spray capacity:
-
80 L/H
-
Spay distance ( smog ):
-
20 -100 m
Quick Details
-
Place of Origin:
-
China
-
Diameter:
-
2 inch
-
Weight:
-
12 KG
-
Item:
-
Portable sprayer
-
Application:
-
agriculture spraying machine
-
Qty of carburetor:
-
double
-
Dimension:
-
118824*32
-
net weight:
-
8.5 Kg
-
Power source:
-
92# gasoline
-
Fuel tank capacity:
-
2.0 L
-
Fuel consumption:
-
3.5 L/H
-
Rated spray capacity:
-
80 L/H
-
Spay distance ( smog ):
-
20 -100 m
Products Description

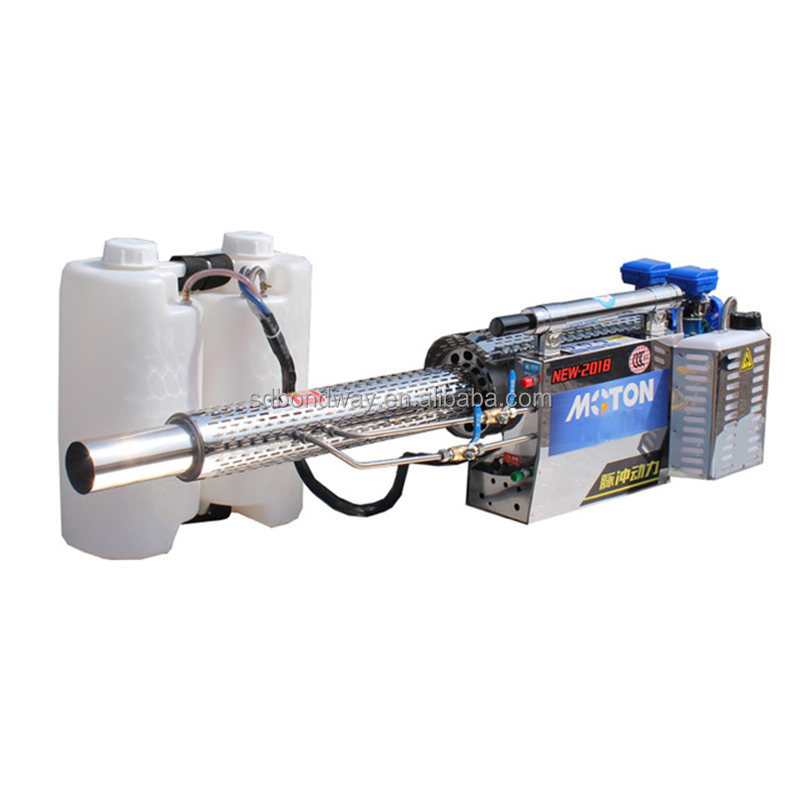

Thermal Fogging Sprayer Application:
1.Pest control of various fruit tree,farm crops,forest and the crop in geenhouse.
2.Sterilization of breeding sites and farm.
3.The eradication of flies and mosquitoes in various places.
4.Disinfection in public places,such as hospitals, cinemas and schools,etc.
1.Pest control of various fruit tree,farm crops,forest and the crop in geenhouse.
2.Sterilization of breeding sites and farm.
3.The eradication of flies and mosquitoes in various places.
4.Disinfection in public places,such as hospitals, cinemas and schools,etc.
|
Model
|
6HYC-100
|
|
Dimension
|
110*26*32 CM
|
|
N.W
|
8.5 KG
|
|
Solution tank volume
|
15 L
|
|
Fuel tank volume
|
2.0 L
|
|
Fuel consumption
|
3L/H
|
|
Spray rate capacity
|
80L/H
|
|
Spray distance(Water Mist)
|
8-14 M
|
|
Spray distance(Smog)
|
20-100 M
|
|
Qty.of solution tube
|
double
|
|
Qty.of carburetor
|
double
|
|
Carburetor material
|
ADC-12 Aluminum
|
|
Explosion tube material
|
SUS304
|
|
Solution tank material
|
HDPE
|
|
Air pump material
|
Iron
|
|
Frame Material
|
Stainless Steel
|
|
Energy Supply
|
12V Chargeable battery
|
|
Certificate
|
FCC,CE,ISO,CCC
|
Thermal Fogging Sprayer INSTRUCTION:
1.Pour the solution into white tanks,then screw the lids very very tight;
2.Pour the petrol into fuel tank (#92/#95 petrol);
3.Press the oil bubbles until it is about two-third full;
4.Turn on the carburetor switches completely;
5.Press and hold the green electric button until the machine is started fully;
6.Turn on the tube switches to spray work.
7.End of job,turn off the tube switches firstly,then turn off the carburetor switches;
1.Pour the solution into white tanks,then screw the lids very very tight;
2.Pour the petrol into fuel tank (#92/#95 petrol);
3.Press the oil bubbles until it is about two-third full;
4.Turn on the carburetor switches completely;
5.Press and hold the green electric button until the machine is started fully;
6.Turn on the tube switches to spray work.
7.End of job,turn off the tube switches firstly,then turn off the carburetor switches;
