Quick Details
-
Voltage:
-
12V 24V 48V
-
Frame:
-
Plastic Material
-
Impeller:
-
Plastic Material
-
Air Flow(CFM):
-
140.74~187.65
-
Speed(RPM):
-
3000~4000
-
Rated Current(Amp):
-
0.33~1.81
-
Input Powe(Watt):
-
10.08/39.36
-
Noise(dBA):
-
49.9~59.4
-
Weight(g):
-
266
-
Bearing:
-
Dual Ball
Quick Details
-
After-sales Service Provided:
-
Free spare parts
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Speedy
-
Voltage:
-
12V 24V 48V
-
Frame:
-
Plastic Material
-
Impeller:
-
Plastic Material
-
Air Flow(CFM):
-
140.74~187.65
-
Speed(RPM):
-
3000~4000
-
Rated Current(Amp):
-
0.33~1.81
-
Input Powe(Watt):
-
10.08/39.36
-
Noise(dBA):
-
49.9~59.4
-
Weight(g):
-
266
-
Bearing:
-
Dual Ball

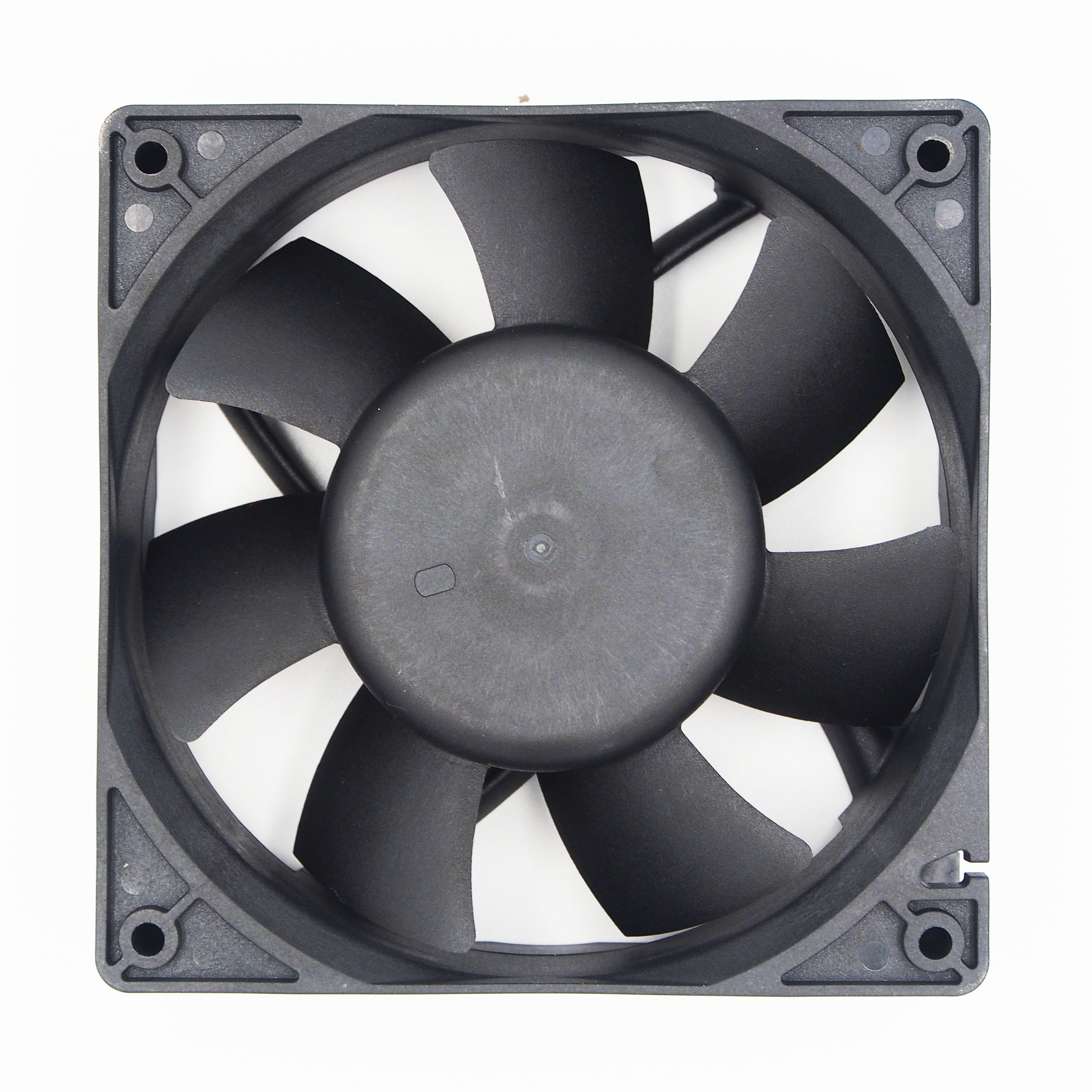

120*120*38mm 12V dc fan
| Model | SD12038-2 | Bearing | Dual Ball |
| Rated Voltage(V) | 12 /24 /48 | Operating Voltage(V) | 10.2~13.8 |
| Static Pressure(inchH20) | 0.145~0.322 | Input Current(Amp) | 0.33~1.81 |
| Nominal Power(Watt) | 0.34~0.80 | Input Power(Watt) | 2.40~8.04 |
Packaging & Delivery
| Packaging Detail: | Gift box; Industrial packing |
| Delivery Detail: | 7--30 days |
Specifications
Certification: CE, ROHS, UL, ISO9001, FCC,TUV,CSA
Operating Temperature: -10°c-70°c (Ordinary humiditity).
Storage Temperature: -40°c-70°c (Ordinary humidity).
Insulation Resistance: 10M Ohm at DC 500V.
Dielectric Strength: AC700V for 3 sec ( <0.5mA allowable,between lead and housing).
Life:at ambient temperature 25°c and humidity 65%. Dual Ball bearing : 50.000 hours
ockde Rotor Protection: designed to meet UL,CUL and TUV.
Polarity protection: Reverse connection at the rated voltage will not cause any damage
Insulation Class: UL Class A.
