Quick Details
-
Lock Size:
-
182L X 30W X 25D(mm)
-
Armature Plate:
-
182L X 30W X 23.6D(mm)
-
Power supply:
-
DC 12V (24V need order)
-
Magnetic distance(max.):
-
3 mm
-
Delay Time:
-
0/5/10/15sec.
-
Door status sensor:
-
NO/COM(0.1A@30VDC)
-
Lock status sensor:
-
NC/NO/COM(0.1A@30VDC)
-
Holding Force:
-
2600Lbs(1200kg)
-
Warranty:
-
3 Years
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YLI
-
Certification:
-
CE, MA
-
Lock Size:
-
182L X 30W X 25D(mm)
-
Armature Plate:
-
182L X 30W X 23.6D(mm)
-
Power supply:
-
DC 12V (24V need order)
-
Magnetic distance(max.):
-
3 mm
-
Delay Time:
-
0/5/10/15sec.
-
Door status sensor:
-
NO/COM(0.1A@30VDC)
-
Lock status sensor:
-
NC/NO/COM(0.1A@30VDC)
-
Holding Force:
-
2600Lbs(1200kg)
-
Warranty:
-
3 Years
Product Description
Product Application

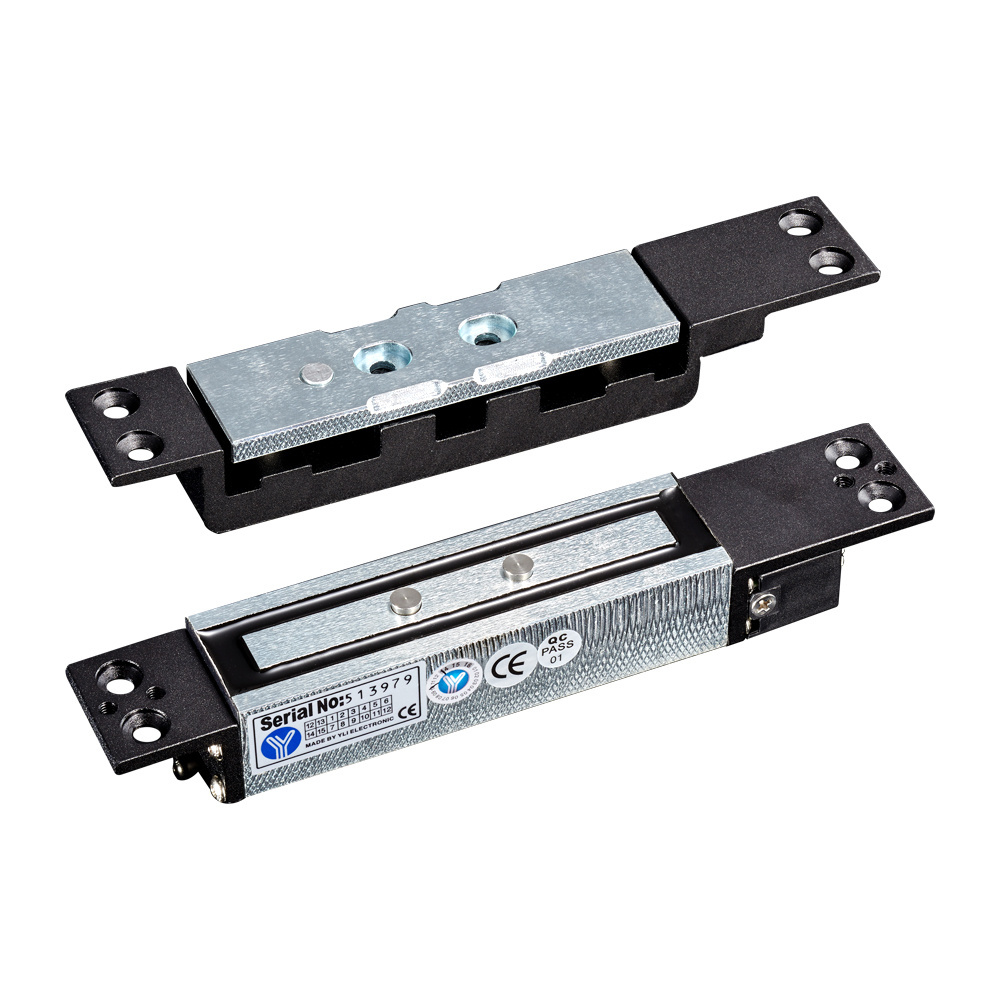

YM-2400SL is a kind of shearing lock. by using the principle of electromagnetic force to attract the armature plate, and then stuck the two fixed legs inside the holes on the armature plate. With combination of the power of electromagnetic force and holding force of the fixed legs, the shear lock can create a very large shearing force.
|
Lock Size
|
182L X 30W X 25D(mm)
|
|
|
||
|
Armature Plate
|
182L X 30W X 23.6D(mm)
|
|
|
||
|
Power supply
|
DC 12V (24V need order)
|
|
|
||
|
Operation Current
|
850mA
|
|
|
||
|
Holding Current
|
400mA
|
|
|
||
|
Delay Time
|
0/5/10/15sec.
|
|
|
||
|
Door status sensor
|
NO/COM(0.1A@30VDC)
|
|
|
||
|
Lock status sensor
|
NC/NO/COM(0.1A@30VDC)
|
|
|
||
|
Holding Force
|
2600Lbs(1200kg)
|
|
|
||
|
Magnetic distance(max.)
|
3mm
|
|
|
||
|
LED
|
Red shows locked; Green shows unlocked
|
|
|
||
|
Weight
|
1.2kg
|
|
|
||
