* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25 years, 25 Years Output Power Guarantee
-
Brand Name:
-
Greenusn
-
Model Number:
-
GSM300-60
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1640*992*35mm
-

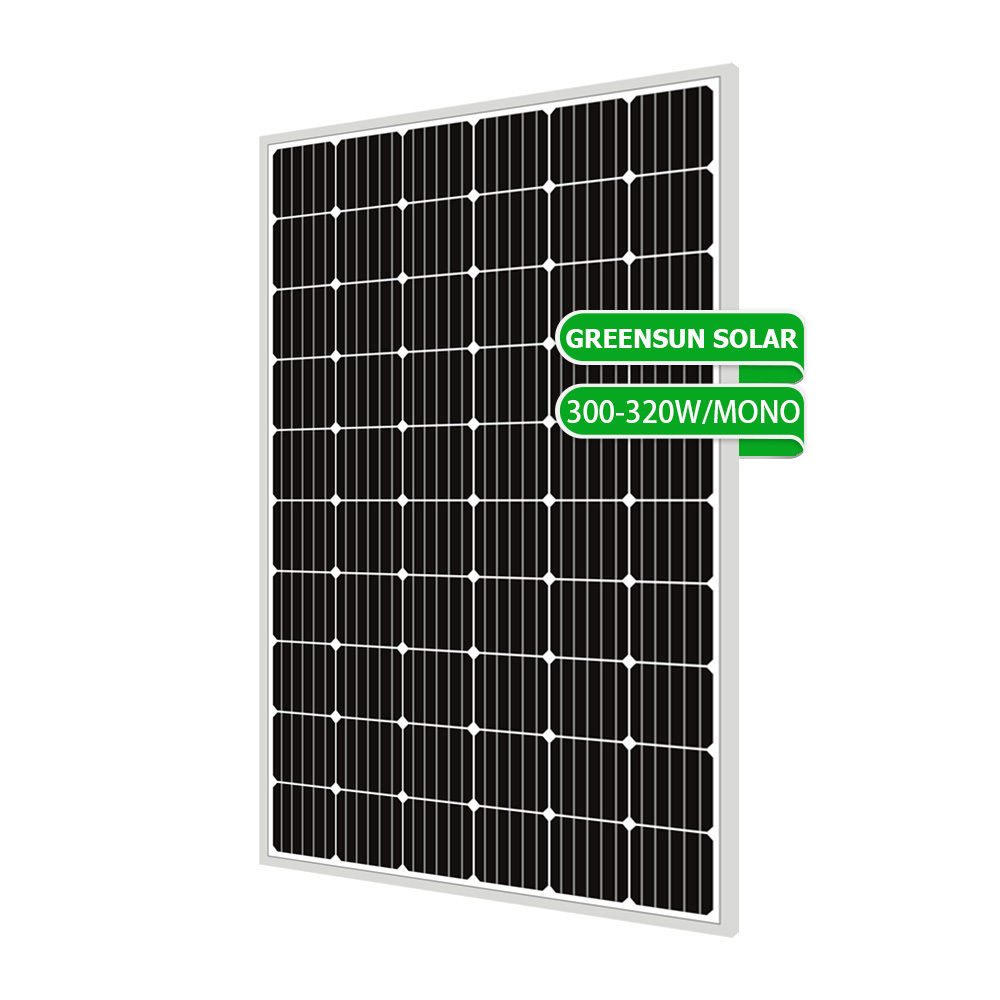

Name:
-
Solar Panel 300 Watt
-
Solar cell:
-
5BB mono solar cell
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Silver or Black
-
OEM:
-
Acceptable
-
Application:
-
Solar System Solar Street Light
-
Certificate:
-
TUV/IEC61215/IEC61730/CE/PID/ISO, CE TUV
-
Number of Cells:
-
60 cells (6*10)
-
Weight (kg):
-
18.1 kg
Quick Details
-
Cell size:
-
125mmx125mm
-
Type:
-
PERC, Half Cell, HJT, N-TYPE, BIPV
-
Panel Efficiency:
-
21%
-
Warranty:
-
25 years, 25 Years Output Power Guarantee
-
Brand Name:
-
Greenusn
-
Model Number:
-
GSM300-60
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1640*992*35mm
-
Name:
-
Solar Panel 300 Watt
-
Solar cell:
-
5BB mono solar cell
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Silver or Black
-
OEM:
-
Acceptable
-
Application:
-
Solar System Solar Street Light
-
Certificate:
-
TUV/IEC61215/IEC61730/CE/PID/ISO, CE TUV
-
Number of Cells:
-
60 cells (6*10)
-
Weight (kg):
-
18.1 kg
Product Description
|
Model
|
GSM300-60
|
GSM305-60
|
GSM310-60
|
GSM320-60
|
|||
|
Rated Maximum Power(Pmax) [W]
|
300
|
305
|
310
|
320
|
|||
|
Open Circuit Voltage(Voc) [V]
|
39.5
|
39.7
|
39.9
|
40.3
|
|||
|
Maximum Power Voltage(Vmp) [V]
|
32.3
|
32.6
|
32.8
|
33.2
|
|||
|
Short Circuit Current(Isc) [A]
|
9.78
|
9.87
|
9.46
|
10.12
|
|||
|
Maximum Power Current(Imp) [A]
|
9.26
|
9.36
|
9.44
|
9.64
|
|||
|
Module Efficiency [%]
|
18.30
|
18.71
|
19.40
|
19.70
|
|||
|
Power Tolerance
|
0~+5W
|
|
|
|
|||
|
Temperature Coefficient of Isc(α_Isc)
|
+0.058%/℃
|
|
|
|
|||
|
Temperature Coefficient of Voc(β_Voc)
|
-0.330%/℃
|
|
|
|
|||
|
Temperature Coefficient of Pmax(γ_Pmp)
|
-0.400%/℃
|
|
|
|
|||
|
STC
|
Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G
|
|
|
|
|||
Grade A Materials
Tempered Glass
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability
Solar Cells
* High-Efficiency PERCIUM Cells
* 93 Fingers PV Cells, Anti-Pid
* Appearance Consistency
Frame
* Aluminum Alloy Frame
* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection
* Black/Silver Optional
Solar Juction Box
* IP67 Waterproof, Closed
* 4mm2, 6mm2 Wire Size Range
* -40 ℃ to +85 ℃ Temperature Range
* Innovative full-glue-filled junction box
Outstanding sealability
Packing & Transport
Packing Method: Customized Wooden&Carton with Pallet(offer 100% protection during transportation)
|
Container(
60Cells
solar panel)
|
20'GP
|
40'GP
|
40'HC
|
|
PCS/Pallet
|
30
|
30
|
30
|
|
PCS/Container
|
400
|
840
|
924
|
|
Container(
72Cells
solar panel)
|
20'GP
|
40'GP
|
40'HC
|
|
PCS/Pallet
|
27
|
27
|
27
|
|
PCS/Container
|
300
|
648
|
696
|
Transport:
Accodring to your products quantity and requirement , we will choose Security and Economical transportation for you .
Including Sea transportation ,Air transportation , Land transportation and Express .
Payment&Warranty
|
Payment Terms
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
|
|
|||
|
|
FOB
|
|
|
|
|||
|
|
CNF
|
|
|
|
|||
|
|
CIF
|
|
|
|
|||
|
|
LC
|
L/C amount above 300,000 usd, we can accept L/C at sight
|
|
|
|||
|
|
West Union
|
Accpetable
|
|
|
|||
|
Delivery Time
|
7~15days after receiving payment for one container
|
|
|
|
|||
