Quick Details
-
Model Number:
-
IN-E5
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Ultrasonic Body Health Analyzer
-
Feature:
-
Body Composition Analysis
-
Weight:
-
1 - 500kgs
-
Verified height precision:
-
±0.1kg
-
Height measurement:
-
70.0~200cm
-
Blood pressure measurement:
-
0 mmHg to 299 mmHg
-
Measurement of fat:
-
Body fat, Muscle, Body water, Basal metabolism, Body Type
-
Function:
-
Blood Analysis/Oximeter analysis/temperature/height&weight /bodyfat
-
Certificate:
-
CE/ISO
-
Language:
-
Enlglish/Spainsh/Arabic /Thai language//French and can cutstomized
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Onsite Training
-
Brand Name:
-
INBCA
-
Model Number:
-
IN-E5
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Ultrasonic Body Health Analyzer
-
Feature:
-
Body Composition Analysis
-
Weight:
-
1 - 500kgs
-
Verified height precision:
-
±0.1kg
-
Height measurement:
-
70.0~200cm
-
Blood pressure measurement:
-
0 mmHg to 299 mmHg
-
Measurement of fat:
-
Body fat, Muscle, Body water, Basal metabolism, Body Type
-
Function:
-
Blood Analysis/Oximeter analysis/temperature/height&weight /bodyfat
-
Certificate:
-
CE/ISO
-
Language:
-
Enlglish/Spainsh/Arabic /Thai language//French and can cutstomized
Product Description

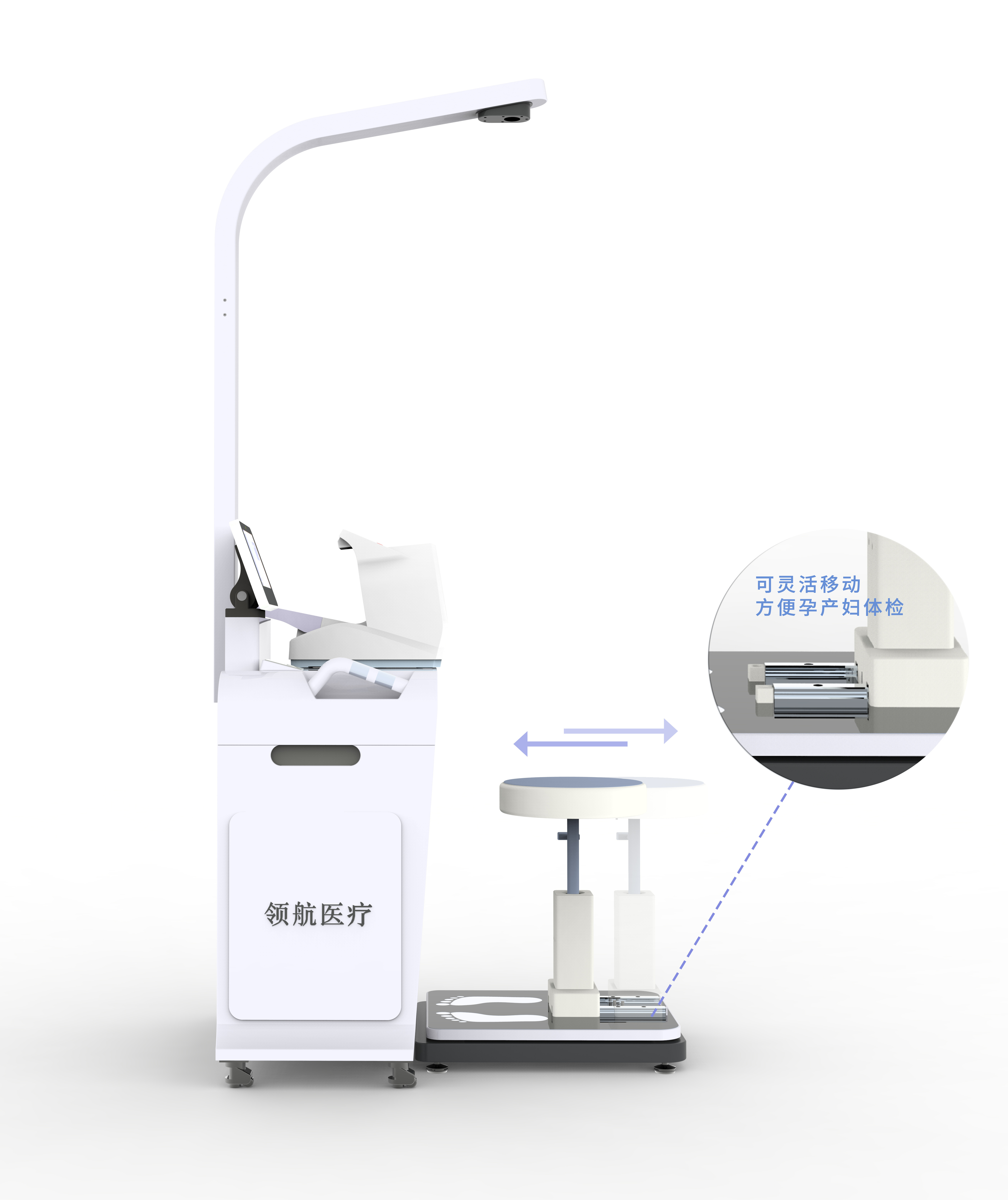

INBCA Smart Full Body Checkup Analyser Analysis Diagnostic Health Analyzer Machine
The Intelligent health examination Kiosk is an Interactive Health examination machine that integrates body weight, BMI, body temperature, blood pressure, pulse rate, blood oxygen saturation, fat content, water content, basal metabolism, and other conventional physical examination functions into one machine. The device comes with a second-generation ID card reader, can quickly read resident identity information, and establish resident health records.
Manufacture Specification
|
Body weight measurement
|
Measuring system
|
Resistance strain gauge
|
|
|
|
|
Body weight index
|
Automatic intelligent calculation of body mass index
|
|
|
|
|
Range of measurement
|
500kg
|
|
|
|
Height measurement
|
Verified precision
|
±0.1kg
|
|
|
|
|
Measuring system
|
Ultrosonic probe
|
|
|
|
|
Range of measurement
|
90.0~200cm
|
|
|
|
|
Verified precision
|
0.1cm
|
|
|
|
Blood pressure measurement
|
Display
|
LCD Digital Display
|
|
|
|
|
Measurement Method
|
Oscillometric method
|
|
|
|
|
Measurement Range
|
Pressure: 0 mmHg to 299 mmHg, Pulse: 40 to 180/min.
|
|
|
|
|
Accuracy
|
Pressure: ±3 mmHg, Pulse: ± 5%
|
|
|
|
|
Inflation
|
Electric pump
|
|
|
|
|
Deflation
|
Automatic pressure release valve
|
|
|
|
|
Pressure Detection
|
Capacitive pressure sensor
|
|
|
|
|
Memory
|
84 Measurements with date and time for each user
|
|
|
|
|
(A and B)
|
(A and B)
|
|
|
|
|
Power Source
|
AC/DC adapter (Included; Input 100-240V 50Hz/60Hz,
|
|
|
|
|
AC/DC adapter (Included; Input 100-240V
|
Output 6V/9.6W)
|
|
|
|
|
50Hz/60Hz,Output 6V/9.6W)
|
10°C to 40°C/30 to 85% RH
|
|
|
|
|
Storage temperature/Humidity/Air Pressure
|
-20°C to 60°C/10 to 95% RH700 - 1060 hPa
|
|
|
|
|
Console Weight
|
Approximately 2600 g
|
|
|
|
|
Outer Dimensions
|
Approximately 286 (l) mm * 294 (w) mm * 271 (h) mm
|
|
|
|
|
Arm Circumference
|
22 to 42 cm
|
|
|
|
Measurement of fat
|
Measuring system
|
Multi-frequency 4- Electrode
|
|
|
|
|
Measurement frequency
|
5kHz/50kHz/250kHz/500kHz
|
|
|
|
|
Measurement category
|
Body fat, Muscle, Visceral fat, Body water, Basal metabolism,
Body Type
|
|
|
|
|
Material
|
Electroplating material
|
|
|
|
|
Current for measurement
|
90μA or below
|
|
|
|
|
Range of measurement
|
75.0~1,500.00Ω(0.1ΩUnit)
|
|
|
|
|
Body parts of surveyor
|
Body, right leg, left leg, right arm, left arm
|
|
|
|
Measurement of blood oxygen
|
Blood oxygen probe
|
CREATIVE KS-CM01
|
|
|
|
|
Sensor
|
Dual wavelength LED
|
|
|
|
|
Wavelength
|
"Visible light( Max):663nm
|
|
|
|
|
|
Invisible Light:890nm"
|
|
|
|
|
Measurement range
|
35%~100%
|
|
|
|
|
Average output power(Max)
|
≤2mW
|
|
|
|
|
Measurement error
|
In the range of 70% to 100% < ±2%
|
|
|
|
|
Accuracy
|
In the range of 70% to 100% < ±3%
|
|
|
|
|
Pulse rate measurement error
|
30~250bpm
|
|
|
|
|
|
Monitoring error is ±2bpm or ±%2,
whichever is the largest
|
|
|
|
|
|
|
|
|
|
|
Working humidity
|
5℃~40℃
|
|
|
|
|
Relative humidity
|
15%~95%(Non-condensing)
|
|
|
|
|
Atmospheric pressure
|
70kpa~106kpa
|
|
|
|
|
Power supply mode
|
Powered by ancillary equipment
|
|
|
|
|
Range of measurement
|
95-99%(±2%normal status,±3% motion or weak
perfusion,less than 95% undefined)
|
|
|
|
Body temperature
|
Infrared thermometer
|
Calibeur DT-8836
|
|
|
|
|
Accuracy
|
0.1 ℃
|
|
|
|
|
Operating Temperature
|
10~40℃
|
|
|
|
|
Storage temperature
|
0~50℃
|
|
|
|
|
Relative humidity
|
≤85%
|
|
|
|
|
Power supply
|
DC 9V(6F22:a layer-built battery)
|
|
|
|
|
Specification
|
150*75*40mm
|
|
|
|
|
Weight
|
Gross weight:400g, Net weight:172g
|
|
|
|
|
Body temperature range
|
32.0~42.5℃
|
|
|
|
|
Object temperature range
|
0~100℃
|
|
|
|
|
Accuracy
|
≤±0.3℃
|
|
|
|
|
Power dissipation
|
≤120mw
|
|
|
|
|
Measurement distance
|
5-8cm
|
|
|
|
|
Auto power off
|
About 15 seconds
|
|
|
Detailed Images
Advantage
A.Human data model (body composition model)
B.DSM-BIA technology
C.Lot intelligent networking technology
D.AI deep learning and algorithm optimization technology
E.High-performance intelligent gateway technology
F.Face image identification technology
G.HDR data optimization acquisition technology
H.Multi-language selection, free switching between bilingual screens
DSM-BIA Technology
B.DSM-BIA technology
C.Lot intelligent networking technology
D.AI deep learning and algorithm optimization technology
E.High-performance intelligent gateway technology
F.Face image identification technology
G.HDR data optimization acquisition technology
H.Multi-language selection, free switching between bilingual screens
DSM-BIA Technology
Product packaging
Package : wooden case
Package size :
96*70*127cm
Net weight : 100kg
Gross weight : 120KG
Usage Notice
Best Selling
Certifications
Frequently Asked questions
A.Our factory is located in Shenzhen, Guangdong.you are warmly welcome to visit our factory !
Q:Do you have any warranty?
A. Yes, we have. One year warranty on host machine is given. Three months free replacement warranty for handles, treatment heads,
and parts.
Q: What if any quality problems during guarantee period?
A.We can provide free technical support. We have a professional technology supporting team for your timely services. You can get
the help you need in time by telephone, online chat. Please contact us once the machine has any problem. Best service will be
offered.
Q.What certification do you have?
A. All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality
management to ensure good quality.
Q:What should I do if I don’t know how to use the machine?
A.We have operation video and user manual for your reference.
Q: What's the package?
A.There're different packages of our machines: carton box and wooden box No matter which package, there's cod foam inside of the
box to protect the machine during the shipment., or as customer’s requirements.
Q: How about the shipment?
A.The machine will be shipped within 7-15days after the receipt of your payment.
Ship by express(door to door)( DHL TNT.UPS FEDEX.EMS)
Ship by air express to airport
