Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
5500*1500*2650
-
Machine Weight:
-
2800 kg
-
Bucket capacity:
-
0.6CBM
-
Brand:
-
YOUTOP
-
Rated Power:
-
37KW
-
Engine type:
-
Turbocharged Diesel Engine
-
Transmission:
-
Countershaft Power Shift F4/R4
-
Attachments:
-
Quick Hitch
-
Engine:
-
Yunnei YN27GBZ
-
Drive type:
-
4x4 Wheel Drive
-
Color:
-
Customer's Requiement
-
Operating weight:
-
2800kg
-
Tire:
-
20.5/70-16
Quick Details
-
Engine Brand:
-
YUNNEI
-
Power:
-
37 KW
-
Brand Name:
-
YOUTOP
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
5500*1500*2650
-
Machine Weight:
-
2800 kg
-
Bucket capacity:
-
0.6CBM
-
Brand:
-
YOUTOP
-
Rated Power:
-
37KW
-
Engine type:
-
Turbocharged Diesel Engine
-
Transmission:
-
Countershaft Power Shift F4/R4
-
Attachments:
-
Quick Hitch
-
Engine:
-
Yunnei YN27GBZ
-
Drive type:
-
4x4 Wheel Drive
-
Color:
-
Customer's Requiement
-
Operating weight:
-
2800kg
-
Tire:
-
20.5/70-16
WHY CHOOSE US
1.
20 years of production
, export and sales experience
2. Two factories covering an area of
100,000 square meters
and
200 employees
3. Passed
ISO, CE
and other certifications
4. The machine uses
imported hydraulic accessories
to make it more durable.
Product Overview
|

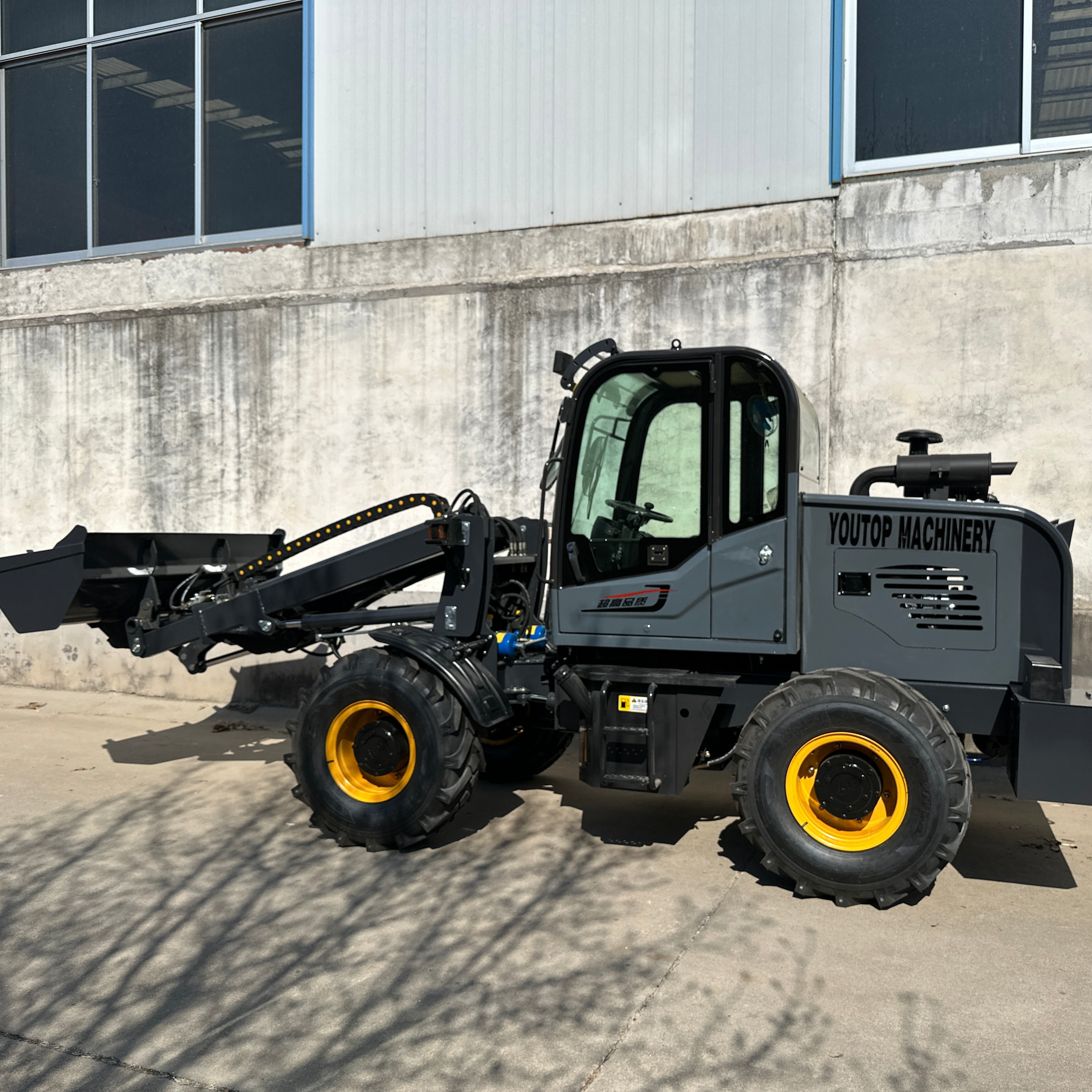

YT930 telescopic wheel loader
|
YT930 telescopic wheel loader
|
|
|
rated loading
|
extension arm600kg/first arm1000kg
|
|
|
overall weight
|
2500kg
|
|
|
bucket capacity
|
0.6m3
|
|
|
maximum traction force
|
25KN
|
|
|
maximum breakout force
|
35KN
|
|
|
maximum grade ability
|
30
|
|
|
maximum dump height
|
First arm 2600mm/extension arm4000mm
|
|
|
maximum dump reach
|
950mm
|
|
|
overall dimension (L×W×H)
|
5500*1800*2750mm
|
|
|
minimum turning radius
|
3200mm
|
|
|
model
|
YUNNEI 490 &WEIFANG490
|
|
|
type
|
Vertical, in-line, water cooled, 4-stroke diesel engine
|
|
|
NO. of cylinder-bore*stroke
|
4*90
|
|
|
rated power
|
42kw—2200r/min
|
|
|
maximum torque
|
220N.m
|
|
|
min. fuel-consume ratio
|
≦60Kw/h
|
|
|
torque converter
|
245type brand: kingliter
|
|
|
|
|
|
|
gearbox mode
|
Power shaft normally engaged straight gear
|
|
|
gears
|
4 forward 2 reverse
|
|
|
maximum speed
|
35km/h
|
|
|
main reducing spiral
|
bevel gear grade 1reduction
|
|
|
decelerating mode
|
Planetary reduction grade 1
|
|
|
wheel base (mm)
|
1900mm
|
|
|
wheel tread
|
1300mm
|
|
|
ground clearance
|
320mm
|
|
|
system working pressure
|
16,5MPa
|
|
|
|
|
|
|
boom lifting time
|
4.83S
|
|
|
total time
|
9±0.5s
|
|
|
service brake
|
Oil assist disc brake on 4 wheels
|
|
|
parking brake
|
Manual disk brake
|
|
|
type specification
|
20.5/70-16
|
|
|
|
|
|
|
front tire pressure
|
0.4Mpa
|
|
|
rear tire pressure
|
0.35Mpa
|
|
