Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
China
-
Brand Name:
-
SZADP
-
Model Number:
-
p/n
-
Specification:
-
0.5mm/0.75mm/1mm/1.5mm/2mm/4mm/6mm
-
Color:
-
Customized
-
Length:
-
100 Meters
-
No. of Cores:
-
2/3/4/6/8/10
-
Conductor:
-
Copper Core
-
Rated voltage:
-
300/500V
-
Packing:
-
100M/REEL
Quick Details
-
Insulation Material:
-
HDPE
-
Application:
-
Construction
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
China
-
Brand Name:
-
SZADP
-
Model Number:
-
p/n
-
Specification:
-
0.5mm/0.75mm/1mm/1.5mm/2mm/4mm/6mm
-
Color:
-
Customized
-
Length:
-
100 Meters
-
No. of Cores:
-
2/3/4/6/8/10
-
Conductor:
-
Copper Core
-
Rated voltage:
-
300/500V
-
Packing:
-
100M/REEL
Specification

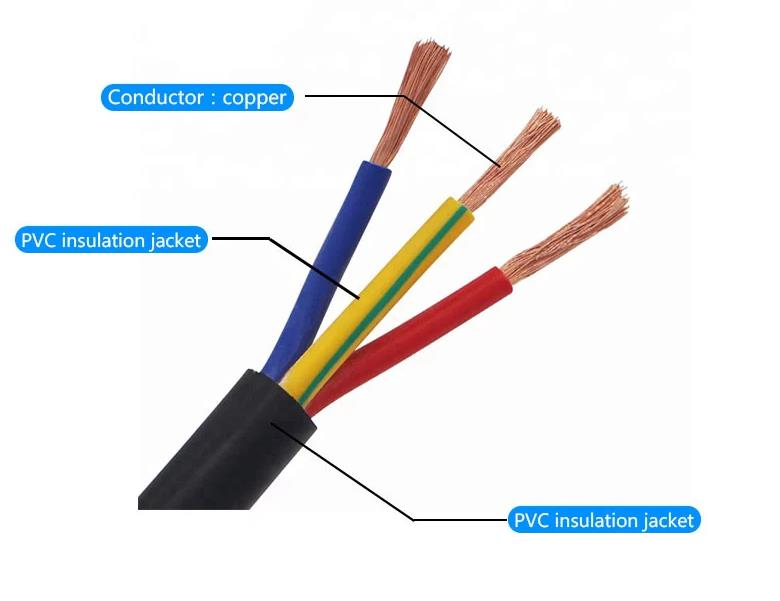

pvc insulated cable
1) No necessary to heat up in advance while installing above 0oC.
2) Max. continuous normal operating Temperature: 90oC (PVC Sheathed cable).
3) Max. Permissible temperature at short circuit (5s. at longest): 250oC.
4) Permissible bending radius:
Single core: ≥20(d+D)±5%.
Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).
Detailed Description
Cross-linked polyethylene insulated power cable not only has excellent electric and mechanical properties, but also has powerful
resistance against chemical corrosion, heat-aging and environmental stress. Its structure is simple and using conveniently, also
can be laid with no restriction of different level. The long term operating temperature is 90, and its transmit capacitance is
large.
Our company can produce both flame retardant and non-flame retardant series of XLPE power cable.. Our products can be produced
according to our works specifications which are equivalent to GB12706, IEC60502, IEC60332, IEC60754, and its some indexes are
superior to standards stated above..
The flame-retardant cable covers all kinds of low-smoke low-halogen, low-smoke halogen free and three classes of A, B, C. We can
design and manufacture special XLPE cable according to the other standards require by the customers, such as heavy section cut
part conductors, water-resistant, defend termites, defend mouse, and so on..
Application:
1 .Machine Tool Manufacture Industry
2 .Full Set of Equipment Installation Project
2 .Power Plant System
4 .Central Heating and Air-Condtion System
5 .Office Automation Equipments Application
2) Max. continuous normal operating Temperature: 90oC (PVC Sheathed cable).
3) Max. Permissible temperature at short circuit (5s. at longest): 250oC.
4) Permissible bending radius:
Single core: ≥20(d+D)±5%.
Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).
Detailed Description
Cross-linked polyethylene insulated power cable not only has excellent electric and mechanical properties, but also has powerful
resistance against chemical corrosion, heat-aging and environmental stress. Its structure is simple and using conveniently, also
can be laid with no restriction of different level. The long term operating temperature is 90, and its transmit capacitance is
large.
Our company can produce both flame retardant and non-flame retardant series of XLPE power cable.. Our products can be produced
according to our works specifications which are equivalent to GB12706, IEC60502, IEC60332, IEC60754, and its some indexes are
superior to standards stated above..
The flame-retardant cable covers all kinds of low-smoke low-halogen, low-smoke halogen free and three classes of A, B, C. We can
design and manufacture special XLPE cable according to the other standards require by the customers, such as heavy section cut
part conductors, water-resistant, defend termites, defend mouse, and so on..
Application:
1 .Machine Tool Manufacture Industry
2 .Full Set of Equipment Installation Project
2 .Power Plant System
4 .Central Heating and Air-Condtion System
5 .Office Automation Equipments Application
|
Nominal sectionmm2
|
Core Structure no./diamm
|
Max. outer dia(mm)
|
Conductor resistance at20 Ω/km
|
Min.Insulation resistance at 70 Ω·km
|
|
2×0.5
|
16/0.20
|
6.0
|
39.0
|
0.012
|
|
2×0.5
|
16/0.20
|
3.6×6.0
|
39.0
|
0.012
|
|
2×0.75
|
24/0.20
|
6.4
|
26.
|
0.010
|
|
2×0.75
|
24/0.20
|
3.9×6.4
|
26.0
|
0.010
|
|
3×0.5
|
16/0.20
|
6.2
|
39.0
|
0.012
|
|
3×0.75
|
24/0.20
|
6.8
|
26.0
|
0.010
|
|
Nominal sectionmm2
|
Core Structure no./diamm
|
Max. outer dia(mm)
|
Conductor resistance at20 Ω/km
|
Min.Insulation resistance at 70 Ω·km
|
|
2×0.75
|
24/0.20
|
7.6
|
26.0
|
0.011
|
|
2×0.75
|
24/0.20
|
5.2×7.6
|
26.0
|
0.011
|
|
2×1.0
|
32/0.20
|
7.8
|
19.5
|
0.010
|
|
2×1.5
|
30/0.25
|
8.8
|
13.3
|
0.010
|
|
2×2.5
|
49/0.25
|
11.0
|
7.98
|
0.0090
|
|
2×0.75
|
24/0.20
|
8.0
|
26.0
|
0.011
|
|
3×1.0
|
32/0.20
|
8.4
|
19.5
|
0.010
|
|
3×1.5
|
30/0.25
|
9.6
|
13.3
|
0.010
|
|
3×2.5
|
49/0.25
|
11.5
|
7.98
|
0.0090
|
|
4×0.75
|
24/0.20
|
8.6
|
26.0
|
0.011
|
|
4×1.0
|
32/0.20
|
9.2
|
19.5
|
0.010
|
|
4×1.5
|
30/0.25
|
11.0
|
13.3
|
0.010
|
|
4×2.5
|
49/0.25
|
12.5
|
7.98
|
0.0090
|
|
5×0.75
|
24/0.20
|
9.4
|
26.0
|
0.011
|
|
5×1.0
|
32/0.20
|
11.0
|
19.5
|
0.010
|
|
5×1.5
|
30/0.25
|
12.0
|
13.3
|
0.010
|
|
5×2.5
|
49/0.25
|
14.0
|
7.98
|
0.0090
|
|
Nominal
sectional area mm2 |
Conductor
No/Dia. mm |
Nominal
Insulated thick mm |
Max overall
Dia. mm |
Condcutor
Resistance at 20 |
|
Min insulated
resistance at 70MΩ/km |
Weight
Kg/km |
|
||
|
|
|
|
|
Cu
|
Al
|
|
Cu
|
Al
|
||
|
1.5
|
1/1.38
|
0.7
|
3.3
|
12.1
|
-
|
0.011
|
19.2
|
-
|
||
|
1.5
|
7/0.52
|
0.7
|
3.5
|
12.1
|
-
|
0.010
|
20.6
|
-
|
||
|
2.5
|
1/1.78
|
0.8
|
3.9
|
7.41
|
11.8
|
0.010
|
30.8
|
15.0
|
||
|
4
|
1/2.25
|
0.8
|
4.4
|
4.61
|
7.39
|
0.0085
|
45.5
|
21.0
|
||
|
6
|
1/2.76
|
0.8
|
4.9
|
3.08
|
4.91
|
0.0070
|
65.0
|
29.0
|
||
|
10
|
7/1.35
|
1.0
|
7.0
|
1.83
|
3.08
|
0.0065
|
110.0
|
52.0
|
||
|
16
|
7/1.70
|
1.0
|
8.0
|
1.15
|
1.91
|
0.0050
|
170.0
|
70.0
|
||
|
25
|
7/2.14
|
1.2
|
10.0
|
0.727
|
1.20
|
0.0050
|
270.0
|
110.0
|
||
|
35
|
7/2.52
|
1.2
|
11.5
|
0.524
|
0.868
|
0.0040
|
364.0
|
150.0
|
||
|
50
|
19/1.78
|
1.4
|
13.0
|
0.387
|
0.641
|
0.0045
|
500.0
|
200.0
|
||
|
70
|
19/2.14
|
1.4
|
15.0
|
0.268
|
0.443
|
0.0035
|
688.0
|
269.0
|
||
|
95
|
19/2.52
|
1.6
|
17.5
|
0.193
|
0.320
|
0.0035
|
953.0
|
360.0
|
||
|
120
|
37/2.03
|
1.6
|
19.0
|
0.153
|
0.253
|
0.0032
|
1168.0
|
449.0
|
||
|
150
|
37/2.25
|
1.8
|
21.0
|
0.124
|
0.206
|
0.0032
|
1466.0
|
551.0
|
||
|
185
|
37/2.52
|
2.0
|
32.5
|
0.099
|
0.164
|
0.0032
|
1808.0
|
668.0
|
||
BVR flexible cable
|
Nominal
sectional area mm2 |
Conductor
No/Dia. mm |
Nominal
Insulated thick mm |
Max overall
Dia. mm |
Condcutor
Resistance at 20 |
Min insulated
resistance at 70MΩ/km |
Weight
Kg/km |
|
2.5
|
9/0.41
|
0.8
|
4.2
|
7.41
|
0.011
|
33.0
|
|
4
|
19/0.52
|
0.8
|
4.8
|
4.61
|
0.009
|
48.0
|
|
6
|
19/0.64
|
0.8
|
5.6
|
3.08
|
0.0084
|
68.0
|
|
10
|
49/0.52
|
1.0
|
7.6
|
1.83
|
0.0072
|
115.0
|
|
16
|
49/0.64
|
1.0
|
8.8
|
1.15
|
0.0062
|
176.0
|
|
25
|
98/0.58
|
1.2
|
11.0
|
0.727
|
0.0058
|
272.0
|
|
35
|
133/0.58
|
1.2
|
12.5
|
0.524
|
0.0052
|
384.0
|
|
50
|
133/0.68
|
1.4
|
16.5
|
0.387
|
0.0051
|
510.0
|
|
70
|
189/0.68
|
1.4
|
16.5
|
0.268
|
0.0045
|
714.0
|
|
95
|
259/0.68
|
1.
|
19.5
|
0.139
|
0.0035
|
965.0
|
|
120
|
259/0.76
|
1.8
|
22.0
|
0.153
|
0.0032
|
1210.0
|
|
150
|
259/0.85
|
1.8
|
25.0
|
0.124
|
0.0032
|
1510.0
|
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
