Quick Details
-
Weight:
-
1600 KG
-
Marketing Type:
-
Hot Product 2024
-
Drilling Depth:
-
Max.600m
-
Mobility:
-
mobile
-
Name:
-

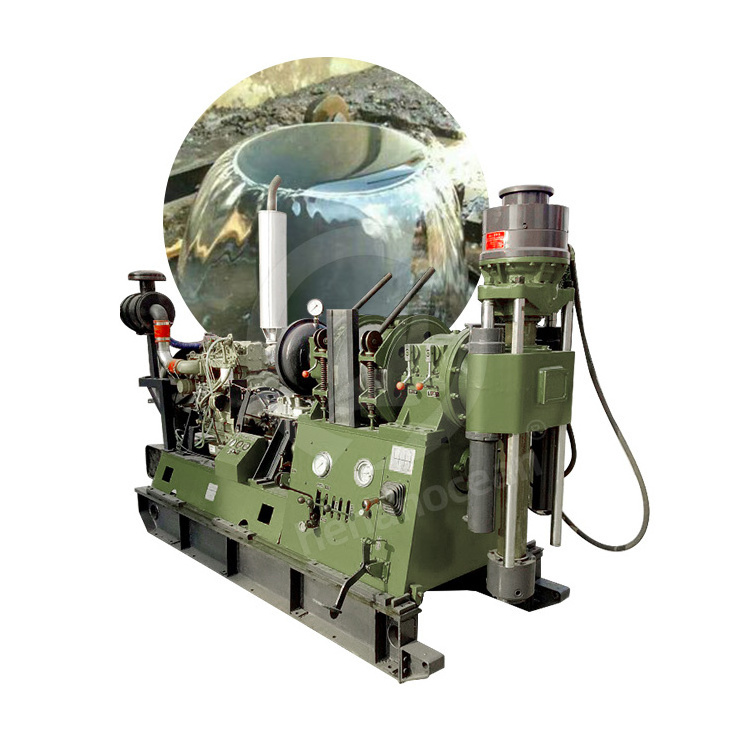

water borehole core drill machine
-
Engine:
-
Disel Engine
-
Drill rod diameter:
-
60mm
-
Drilling angle:
-
90°-65°
-
Application:
-
Rock Core Drilling Rig
-
Drilling method:
-
Diesel Hydraulic Water Drill Machine
-
Function:
-
Deep Core Drilling Rig
-
Mud pump:
-
BW250
-
Feature:
-
High Drilling Efficiency
-
Key words:
-
core drill machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
henan ocean
-
Dimension(L*W*H):
-
2500*900*1800mm
-
Weight:
-
1600 KG
-
Marketing Type:
-
Hot Product 2024
-
Drilling Depth:
-
Max.600m
-
Mobility:
-
mobile
-
Name:
-
water borehole core drill machine
-
Engine:
-
Disel Engine
-
Drill rod diameter:
-
60mm
-
Drilling angle:
-
90°-65°
-
Application:
-
Rock Core Drilling Rig
-
Drilling method:
-
Diesel Hydraulic Water Drill Machine
-
Function:
-
Deep Core Drilling Rig
-
Mud pump:
-
BW250
-
Feature:
-
High Drilling Efficiency
-
Key words:
-
core drill machine
Product Description
Features
1.
The drilling rig adopts the MW525 automobile gearbox assembly, which has 10 speed levels and a reasonable speed adjustment range. It has large torque and strong load-bearing capacity. It can realize long-distance control and speed change, and the operation is centralized and convenient.
2.
It has large installed power and has 2 reverse speeds, making it easy to deal with accidents.
3.
The control handles are centralized, the layout is reasonable and compact, the operation is simple, flexible and reliable.
4.
It has a normally closed hydraulic chuck, which is easy and flexible to operate.
5.
Independent operation of vertical shaft and winch is possible.
6.
The vertical shaft through hole has a large diameter and can be replaced with a large hexagonal active drill pipe.
|
Model
|
OCEAN-XY-3
|
OCEAN-XYX-3
|
OCEAN-XYD-3
|
|||
|
Drilling depth
|
530m
|
600m
|
600m
|
|||
|
Drill diameter
|
75-300mm
|
75-325mm
|
75-300mm
|
|||
|
Drill rod diameter
|
Φ60
|
Φ60
|
Φ60
|
|||
|
Drill angle of hole
|
90°-65°
|
90°-65°
|
90°-65°
|
|||
|
Spindle
|
|
|
|
|||
|
Vertical axis forward velocity
|
32-1057r/min
|
32-1057r/min
|
57-1024r/min
|
|||
|
Vertical axis reversal velocity
|
29-137r/min
|
29-137r/min
|
45-212r/min
|
|||
|
Vertical axis travel
|
600mm
|
600mm
|
600mm
|
|||
|
Diameter of holes in vertical shaft
|
96mm
|
96mm
|
96mm
|
|||
|
Vertical shaft lifting capacity
|
60kN
|
60kN
|
60kN
|
|||
|
Hoist
|
|
|
|
|||
|
Single rope lifting speed
|
0.5-1.9m/s
|
0.5-1.9m/s
|
0.5-1.9m/s
|
|||
|
Wire rope diameter
|
12.5mm
|
12.5mm
|
13mm
|
|||
|
Single rope lifting capability
|
30kN
|
30kN
|
45kN
|
|||
|
Roll diameter
|
300mm
|
300mm
|
200mm
|
|||
|
Reel capacity
|
65m
|
65m
|
30m
|
|||
|
Mud pump (optional)
|
|
|
|
|||
|
Mud pump
|
BW-250 mud pump
|
BW-250 mud pump
|
BW-250 mud pump
|
|||
|
Displacement
|
250L/min
|
250L/min
|
250L/min
|
|||
|
Working pressure
|
80kgcm²
|
80kgcm²
|
80kgcm²
|
|||
|
Water inlet diameter
|
76mm
|
76mm
|
75mm
|
|||
|
Diameter of outflow tube
|
51mm
|
51mm
|
50mm
|
|||
|
Oil pump
|
|
|
|
|||
|
Double Gear Pump
|
CBF-F63/25
|
CBF-F63/25
|
F532/F316
|
|||
|
Front flow pressure
|
63L/min 20Mpa
|
63ml/r 20Mpa
|
50l/min 20Mpa
|
|||
|
Back flow pressure
|
25L/min 20Mpa
|
25ml/r 20Mpa
|
24l/min 20Mpa
|
|||
|
Rig power
|
|
|
|
|||
|
Diesel Engine Power
|
39kw/2400rpm
|
39kw/2400rpm
|
56kw
|
|||
|
Motor power
|
Y180L-4/22kW/1470rpm
|
Y180L-4/22kW/1470rpm
|
Y200L-4/30kW
|
|||
|
Weight dimensions
|
|
|
|
|||
|
Rig weight
|
1600KG
|
3600KG
|
9550KG
|
|||
|
Dimensions
|
2500*900*1800mm
|
2900*2560*3300mm
|
7700*2500*10500mm
|
|||
|
Model
|
|
|
OCEAN-XY-44
|
|
|
|||||
|
Rock core drilling
|
|
|
|
|
|
|||||
|
Drill rod type
|
|
|
Drill rod diameter（mm）
|
|
Drill depth（m）
|
|||||
|
Domestic drill rod
|
Internal thickening type
|
|
42
|
|
1400
|
|||||
|
|
|
|
50
|
|
1000
|
|||||
|
|
|
|
60
|
|
830
|
|||||
|
|
Rope core type
|
|
55.5
|
|
1250
|
|||||
|
|
|
|
71
|
|
1000
|
|||||
|
|
|
|
89
|
|
800
|
|||||
|
DCDMA drill rod
|
|
|
BQ
|
|
1300
|
|||||
|
|
|
|
NQ
|
|
1000
|
|||||
|
|
|
|
HQ
|
|
750
|
|||||
|
|
|
|
PQ
|
|
420
|
|||||
|
|
Externally thickening type
|
|
60mm
|
|
800
|
|||||
|
|
|
|
73mm
|
|
500
|
|||||
|
|
|
|
89mm
|
|
300
|
|||||
|
Drill angle
|
|
|
0°～360°
|
|
|
|||||
|
Motor
|
Model
|
|
Power
|
Rotary speed
|
|
|||||
|
（1）Electric motor
|
Y225S-4
|
|
37KW
|
1480 r/min
|
|
|||||
|
（2）Diesel motor
|
CA4110
|
|
81KW
|
2800 r/min
|
|
|||||
|
Spindle hole diameter
|
|
|
93mm
|
|
|
|||||
|
Spindle
|
|
|
|
|
|
|||||
|
forward rotary speed（r/min）
|
|
|
60/90/166/272/379/481/183/296/514/835/1164/1476
|
|
|
|||||
|
reversal rotary speed（r/min）
|
|
|
63/198
|
|
|
|||||
|
Rotary torque
|
|
|
8000N·m
|
|
|
|||||
|
Vertical shaft travel
|
|
|
600mm
|
|
|
|||||
|
Vertical shaft lifting capacity
|
|
|
125KN
|
|
|
|||||
|
Max pressure
|
|
|
90KN
|
|
|
|||||
|
Hoist
|
|
|
|
|
|
|||||
|
Type: planetary gear transmission, handle brake
|
|
|
|
|
|
|||||
|
Wire rope diameter
|
|
|
φ18.5mm
|
|
|
|||||
|
Single rope lifting capability
|
|
|
45KN
|
|
|
|||||
|
Hydraulic system
|
|
|
|
|
|
|||||
|
Rated pressure
|
|
|
20Mpa
|
|
|
|||||
|
Max pressure
|
|
|
25Mpa
|
|
|
|||||
|
Displacement
|
|
|
20ml/r
|
|
|
|||||
|
Dimensions
|
|
|
3050*1100*1920mm
|
|
|
|||||
|
Rig weight
|
|
|
2300kg
|
|
|
|||||
