Quick Details
-
Application:
-
Metal Stamping Coin making
-
Function:
-
Metal coin making
-
Name:
-
Coin making machine
-
Model:
-
Metal Stamping hydraulic Press
-
Type:
-
Vertical
-
Usage:
-
Metal Pressing
-
Material:
-
Cast Steel Material
Quick Details
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Making Stamping Deep Throat C Frame Hydraulic Press Machine
-
Keyword:
-
Metal coin making pressing machine
-
Application:
-
Metal Stamping Coin making
-
Function:
-
Metal coin making
-
Name:
-
Coin making machine
-
Model:
-
Metal Stamping hydraulic Press
-
Type:
-
Vertical
-
Usage:
-
Metal Pressing
-
Material:
-
Cast Steel Material

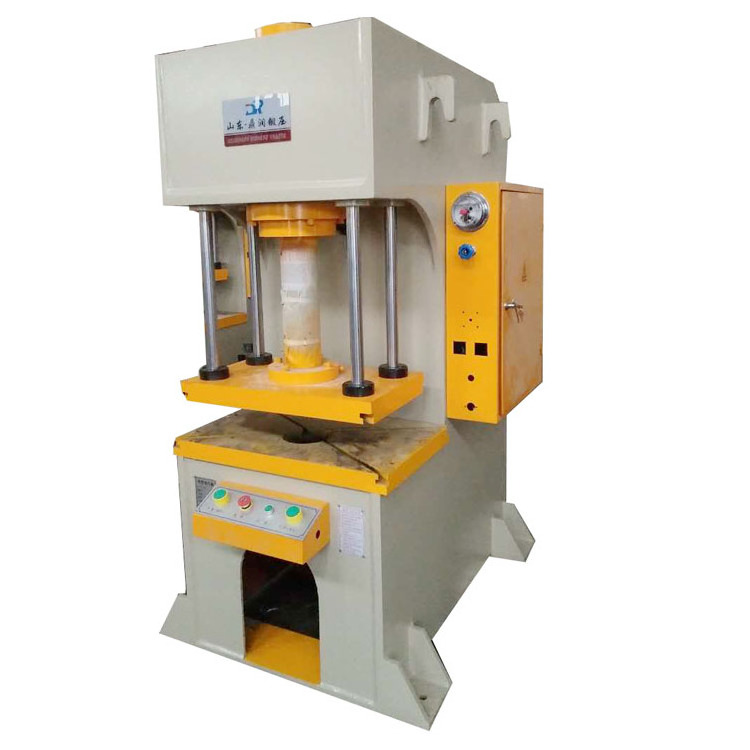

Metal Coins Making Stamping Deep Throat C Frame Hydraulic Press Machine
Appliance field:
This series Metal Coins Making Stamping Deep Throat C Frame Hydraulic Press Machine mainly applies to the proofread, assemble of axle component and section bar, the bending. impressing of the panel component, The stretch plastic products of simple component ,and the use of other line, line machinery tools , combustion engine ,spinning , axle , bearing , washing machine , automobile motor , air conditiner motor , electrical equiment ,defense industry enterprise and foreign-funded enterprises assemble production line.
Features:
Our company`s Metal Coins Making Stamping Deep Throat C Frame Hydraulic Press Machine is C type single structres, fusselage is adopted the whole co2 welding of steel plate ,and passed through tempering aging treatment after welding, to make sure that fuselage never warps, Hydraulic press system is located in fuselage. beautiful appearance and easy operation, and Metal coins making stamping hydraulic press machine can expand the scope of work .Metal Coins Making Stamping Deep Throat C Frame Hydraulic Press Machine uses 3 surface space to lengthen the hydraulic cylinder stoke(may choose to set.
Single column hydraulic press description
| Project | 2.5T | 6.3T | 20T | 40T | 63T | 100T | 200T |
| Max liquid working pressure(Mpa) | 8 | 12.5 | 18 | 23 | 25 | 25 | 25 |
| Slide stroke(mm) | 125 | 200 | 300 | 360 | 360 | 600 | 360 |
| Throat depth(mm) | 105 | 170 | 200 | 200 | 260 | 350 | 325 |
| Max opening height(mm) | 210 | 320 | 500 | 550 | 600 | 1000 | 700 |
| Worktable size(mm) | 320*200 | 360*320 | 400*500 | 400*500 | 450*600 | 800*670 | 800*650 |
| Size of the up stroke(mm) | / | 200*200 | 320*320 | 380*380 | 380*380 | 600*600 | 600*600 |
| Descent speed(mm/s) | 45 | 40 | 21 | 34 | 53 | 55 | 48 |
| Return speed(mm/s) | 90 | 80 | 32 | 47 | 42 | 48 | 30 |
| Motor power(KW) | 1.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 11 |
| Note:industrial style hydraulic press has upper moveable workable.upper and under worktable has T-slot,making convenient to fix the mould,it has the advantage of high speed ,high efficiency,good guiding,pressure maintaining,settle pressure and travel etc. | |||||||
- Packaging Details:
- Plywood box for power press
-
1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.3.The outmost is wooden case with fixed formwork.4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
- Delivery Detail:
- Shipped in 45 days after payment(Accoording to different types
Pre-sale Service
We provide professional consultation about each type of machine,and offer free testing service to help customers purchase suitable machine.Customers are also welcomed to visit and evaluate our factory.
After-sale Service
We have no oversea services.
BUT we welcome engineers from your side to learn the technical design and normal maintenance here, this will help you esay in understanding and helpful if you need to be our dealer.
Anyhow there is another way is through internet video face to face for machine teaching. because of the high development in internent, the world has become smaller and you can easy contact us if necessary.
