Quick Details
-
Length * Width * Height(mm):
-
5020*1999*1450
-
Wheelbase (mm):
-
3020
-
Type of battery:
-
Ternary lithium battery
-
Max. Power(kW):
-
425
-
Max. Torque(N m):
-
578
-
Number of electric motors:
-
Singal motor/Double motor
-
Max. Speed:
-
220
-
Range:
-
650
Quick Details
-
Brand Name:
-
Avatar
-
Place of Origin:
-
Guangdong, China
-

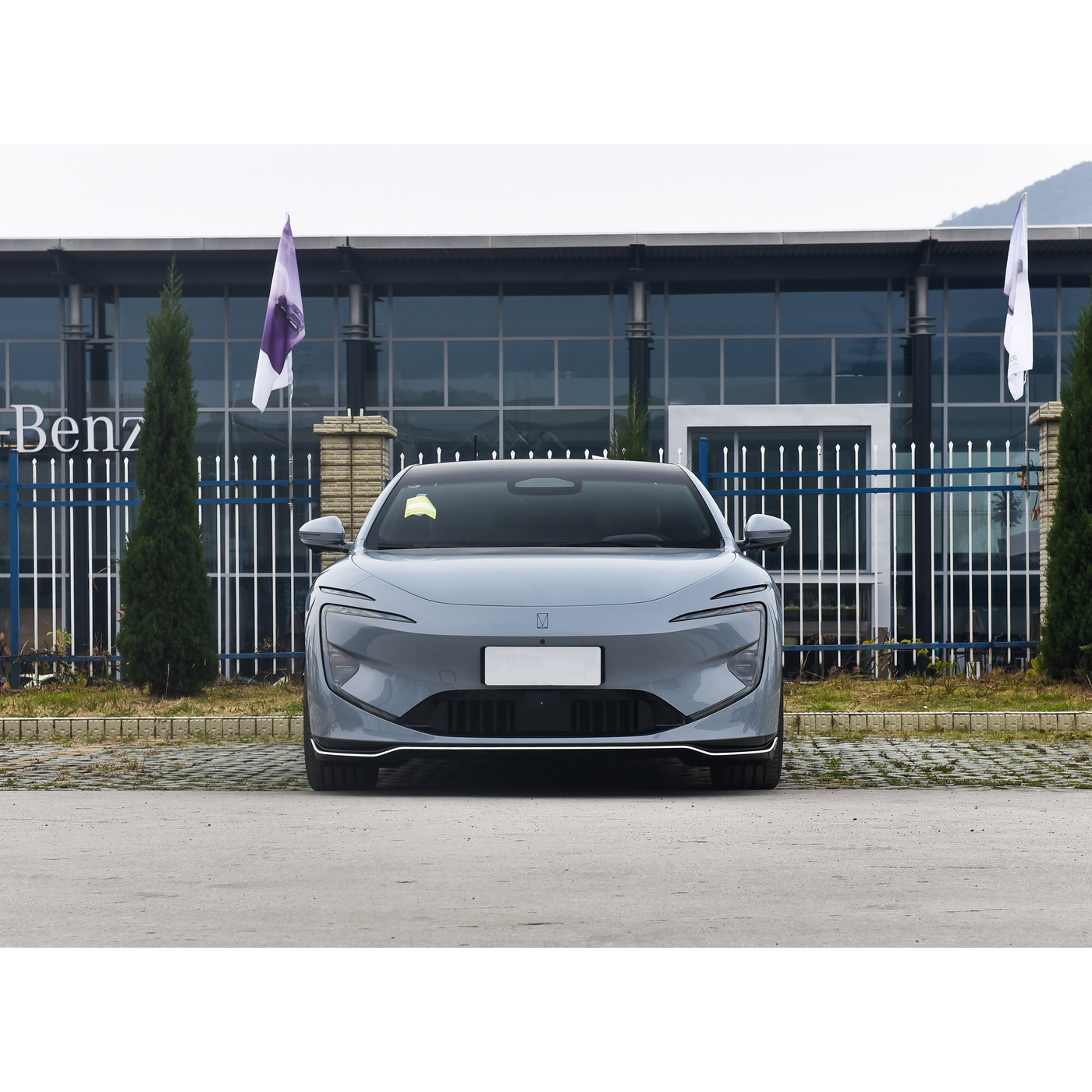

Product name:
-
Avatar 12
-
Length * Width * Height(mm):
-
5020*1999*1450
-
Wheelbase (mm):
-
3020
-
Type of battery:
-
Ternary lithium battery
-
Max. Power(kW):
-
425
-
Max. Torque(N m):
-
578
-
Number of electric motors:
-
Singal motor/Double motor
-
Max. Speed:
-
220
-
Range:
-
650
Products Description
Specification
|
Vehicle Model
|
700 Three-laser Rear-guard Luxury Edition
|
650 Three-laser 4WD Performance Edition
|
650 Three-laser 4WD GT Edition
|
|||
|
Autobody
|
|
|
|
|||
|
Length×Width×Height (mm)
|
5020*1999*1450
|
|
|
|||
|
Wheelbase (mm)
|
3020
|
|
|
|||
|
Front wheel base (mm)
|
1688
|
|
|
|||
|
Rear wheel base (mm)
|
1702
|
|
|
|||
|
Approach Angle (°)
|
13
|
|
|
|||
|
Departure Angle (°)
|
18
|
|
|
|||
|
Body structure
|
Three-compartment car
|
|
|
|||
|
Door opening mode
|
Swing door
|
|
|
|||
|
Number of doors (PCS)
|
4
|
|
|
|||
|
Number of seats (PCS)
|
5
|
|
|
|||
|
Tank capacity (L)
|
/
|
|
|
|||
|
Front trunk volume (L)
|
65
|
|
|
|||
|
Luggage compartment capacity (L)
|
350
|
|
|
|||
|
Service weight (KG)
|
2180
|
2300
|
2300
|
|||
|
Engine
|
|
|
|
|||
|
Motor Type
|
Permanent magnet/synchronous
|
Pre-ac/asynchronous
Rear permanent magnet/synchronous
|
|
|||
|
Total motor power (kW)
|
230
|
425
|
230
|
|||
|
Total motor torque (N·m)
|
370
|
650
|
370
|
|||
|
Maximum power of front motor (kW)
|
/
|
195
|
/
|
|||
|
Maximum torque of front motor (N·m)
|
/
|
280
|
/
|
|||
|
Maximum power of rear motor (kW)
|
230
|
|
|
|||
|
Maximum torque of rear motor (N·m)
|
370
|
|
|
|||
|
System power (kW)
|
/
|
|
|
|||
|
System torque (N·m)
|
/
|
|
|
|||
|
Number of driving motors
|
Single motor
|
Double motor
|
Double motor
|
|||
|
Motor layout
|
Postposition
|
Preposition+Postposition
|
Preposition
|
|||
|
NEDC electric range (km)
|
/
|
|
|
|||
|
NEDC Range (km)
|
/
|
|
|
|||
|
WLTC electric range (km)
|
/
|
|
|
|||
|
WLTC Comprehensive Range (km)
|
/
|
|
|
|||
|
CLTC Electric Range (km)
|
700
|
650
|
730
|
|||
|
100km power consumption (kWh/100km)
|
/
|
17.1
|
18.35
|
|||
|
Transmission
|
|
|
|
|||
|
Number of gears
|
1
|
|
|
|||
|
Transmission type
|
Fixed tooth ratio gearbox
|
|
|
|||
|
Chassis and Braking
|
|
|
|
|||
|
Driving mode
|
Rear-rear-drive
|
Dual motor four-wheel drive
|
Five link independent suspension
|
|||
|
Four-wheel drive from
|
/
|
Electric four-wheel drive
|
|
|||
|
Front suspension type
|
Double fork arm independent suspension
|
|
|
|||
|
Rear suspension type
|
Multi-link independent suspension
|
|
|
|||
|
Assist type
|
Electric power assist
|
|
|
|||
|
Front brake type
|
Ventilated disk type
|
|
|
|||
|
Rear brake type
|
Ventilated disk type
|
|
|
|||
|
Parking brake type
|
Electronic parking
|
|
|
|||
