Quick Details
-
Model Number:
-
TS-DDV autoclave sterilizer
-
Place of Origin:
-
Anhui, China
-
Volume:
-
12L 18L 24L
-
Working pressure:
-
0.22MPa
-
Working temperature:
-
134℃
-
Adjustment of temperature:
-
105-134℃
-
Display:
-
LCD Touchscreen
-
Timer:
-
0-99 Min
-
Material:
-
304 Stainless Steel
-
Water tank:
-
Yes
-
Voltage:
-
220V/50Hz-60Hz
-
Certificates:
-
CE/ISO13485/ISO9001
Quick Details
-
Warranty:
-
Lifetime
-
After-sale Service:
-
Free spare parts
-
Brand Name:
-
SADA Autoclave
-
Model Number:
-
TS-DDV autoclave sterilizer
-
Place of Origin:
-
Anhui, China
-
Volume:
-
12L 18L 24L
-
Working pressure:
-
0.22MPa
-
Working temperature:
-
134℃
-
Adjustment of temperature:
-
105-134℃
-
Display:
-
LCD Touchscreen
-
Timer:
-
0-99 Min
-
Material:
-
304 Stainless Steel
-
Water tank:
-
Yes
-
Voltage:
-
220V/50Hz-60Hz
-
Certificates:
-
CE/ISO13485/ISO9001
Hefei Sada Medical Equipment Co., Ltd . is a professional medical equipment manufacturer.Main Products Include: Table top autoclave (sterilizer), Portable Autoclave, Vertical Autoclave, Double Door Autoclave and Horizontal autoclave for Medical, Laboratory and Pharmaceutical Sterilization. Established in 2002 and located in Hefei, Anhui province of China which near the beautiful Mount Huangshan. We focus on manufacturing autoclaves for more than 10 years. As many years development and business expanding into African markets, South America markets, Southeast Asia, Europe and to other potential markets. We can supply the best quality at affordable price autoclaves for our valuable customers. Meanwhile we established our own sale networks, agents and distributors in Zimbabwe and Philippines.Core ValuesOffer OEM Service with Affordable Price is our best Advantages. With 4 manufacturing production lines, 2 assembling production lines and more than 50 skilled professional workers, we can deliver the orders on time. Multi-payment methods available and fast delivery Provide the best sterilization solutions for medical, laboratory and pharmaceutical customers from all over the world.Commitment to QualitySada medical continuous improvement policy is a given in all aspects of our business and central to our stringent quality systems.Contact us now to Establish Mutual BusinessWe hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
Product Features
1. Standard Class B with three times vacuum, vacuum drying.
2. LCD display working status, operating temperature, pressure and time, pulsating vacuum, drying, water level and system errors.
3. The vacuum data can reach -0.8 bar, it fits various instrument, including package, unpackaged, solid, hollow, multi-apertures and inset pipes.
4. Cycle progresses automatically by control system through conditioning, sterilizing, exhaust, drying and venting phases.
5. With 7 sterilization program cycles: Fluid, Instrument, Textile, Rubber, Customize, Vacuum test, B & D test.
6. The timer starts only after the pre-set temperature is reached, ensuring complete sterilization.
7. Automatic air venting device (vacuum pump) discharges cool air from chamber to obtain effective saturated steam.
8. Fast and independent steam generator to provide strict control of heating temperature.
9. Built-in mini printer, water tank, high efficiency filter.
10. Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
11. Can inactivate HIV, HBV, mad cow virus and bacillus.
12. The Cylindrical chamber is made of high quality SUS 304 stainless steel with polished surface for long lasting service and easy cleaning.
13. This machine is designed for open water tank, water purification, sewage tank separation, convenient and intutive.
14. Sound-light alarm when sterilization finished and cuts off the heating power source. Power shuts off upon completion of the cycle.
Safety Device
1. Heater protection
2. Anti-dry heating
3. Safety interlock door: The program can’t start up when the door is unlocked under normal condition.Door is locked and the door can’t open when pressure in chamber.
4. Over-temperature protection
5. Over-pressure protection
6. Automatic release safety valve
7. Over current protect
8. Electric safety protective device: fuse protects control units when short circuit or overload occurs.
9. Vacuum pump overload: The vacuum pump stops and alarms once its motor is overload or blocked whenvacuum pump running.

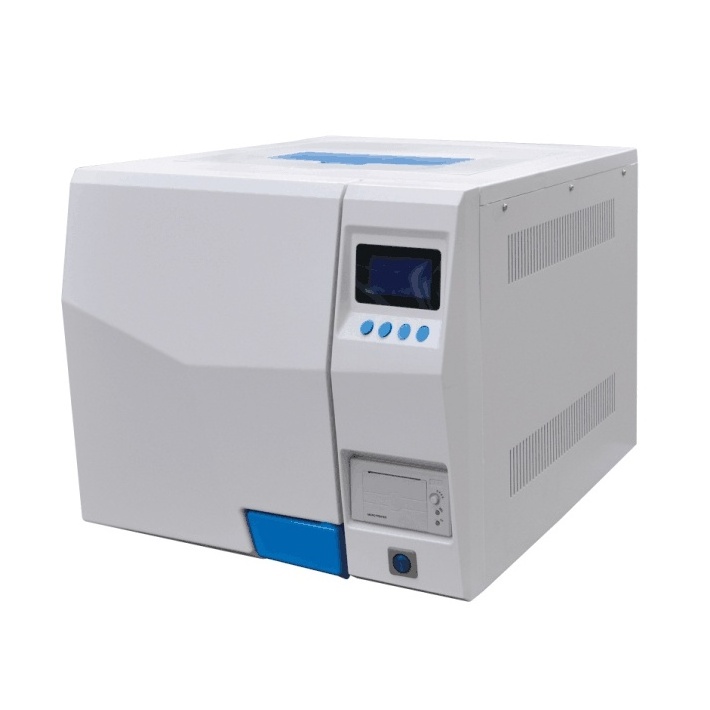

Product Pictures
Main Specificaiton
|
Model |
TS-DDV18 |
TS-DDV23 |
TS-DDV35 |
TS-DDV50 |
TS-DDV90 |
|
Chamber volume |
18L (φ250×360) |
23L (φ250×470) |
35L (φ300×500) |
50L (φ340×550) |
90L (φ400×720) |
|
Working pressure |
0.22Mpa |
||||
|
Working temperature |
134℃ |
||||
|
Adjustment of temperature |
105-134℃ |
||||
|
Timer |
0-99 min |
||||
|
Drying time range |
0-99 min |
||||
|
Heat average |
≤ ± 1℃ |
||||
|
Power |
2.0 KW / AC220V 50Hz |
2.7 KW / AC220V 50Hz |
4KW |
||
|
Dimension(mm) |
480×480×380 |
580×480×380 |
730×550×510 |
770×600×540 |
1000×690×610 |
|
Package dimension(mm) |
700×580×500 |
800×580×500 |
820×680×650 |
880×730×700 |
1070×740×700 |
|
G.W/N.W |
52/47 kg |
68/53kg |
115/93 kg |
130/106 kg |
200/180kg |
Q: Can you do OEM service ?
A: We can provide the specific products needed around the world at significantly lower costs.
Q: How long is your delivery time?
A: Usually, delivery time is 40-50 days depend on the order quantity & inventory.
Q: How about your quality warranty?
A: Normally all Sada products are supplied with a warranty of 12 Months from the date of shipment.
