Quick Details
-
Color:
-
Blue
-
Weight:
-
1.3kg
-
Trademark:
-
SoCan
-
Conductor:
-
Wire
-
Perforation:
-
Round
-
Nominal RMS CURRENT:
-
10mA, 20mA, 50mA, 100ma
-
Measuring Range:
-
2*Ipn
-
Supply Voltage:
-
±5V
-
Wokring Voltage:
-
±12V~15V (5%)
-
Accuracy:
-
±1%
-
Usage:
-
Magnetic Sensor
-
Theory:
-
Current Sensor
-
Output:
-
Digital Sensor
Quick Details
-
Model Number:
-
SCD9
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SOCAN
-
Color:
-
Blue
-
Weight:
-
1.3kg
-
Trademark:
-
SoCan
-
Conductor:
-
Wire
-
Perforation:
-
Round
-
Nominal RMS CURRENT:
-
10mA, 20mA, 50mA, 100ma
-
Measuring Range:
-
2*Ipn
-
Supply Voltage:
-
±5V
-
Wokring Voltage:
-
±12V~15V (5%)
-
Accuracy:
-
±1%
-
Usage:
-
Magnetic Sensor
-
Theory:
-
Current Sensor
-
Output:
-
Digital Sensor

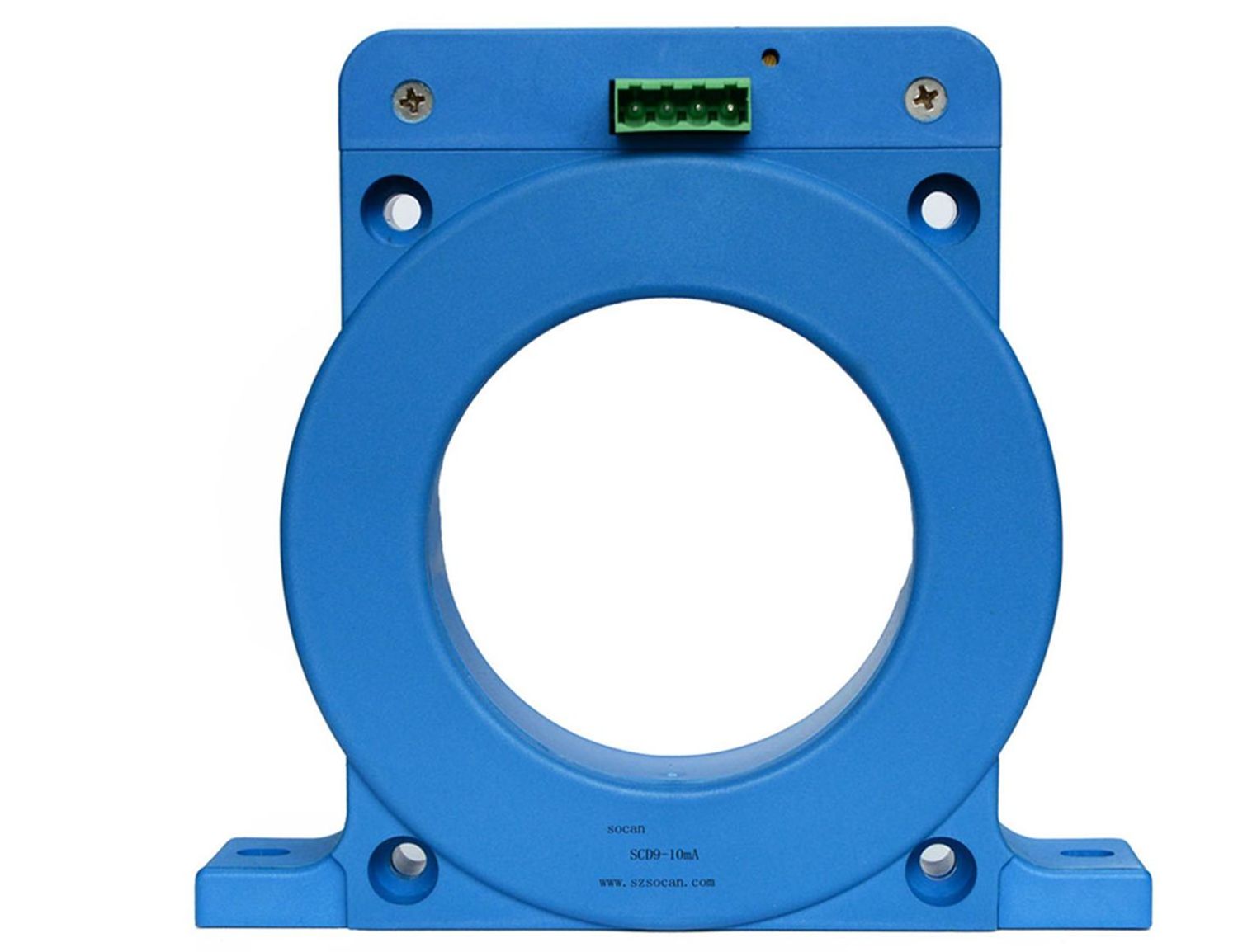

is a new current sensor developed from the application of magnetic modulation principle, excellent stability in tiny currents measurement, with a highly galvanic isolation between primary and secondary circuit. Widely used in leakage monitoring systems, signaling systems and the current difference measurement etc.
Specifications:
1. DC Leakage Current Sensor
2. Fluxgate and magnetic modulation.
3. Ipn 10mA to 100mA
4. Low consumption <13ma
5. Good linearity 0.5%
6. Window hole ø18mm
Model available for all SCD Series:
SCD Options:
Model available for all SCD Series:
| Hole inside diameter ø20 | SCD1-10mA | SCD1-20mA | SCD1-50mA | SCD1-100mA |
|
Hole inside diameter ø40
|
SCD2-10mA | SCD2-20mA | SCD2-50mA | SCD2-100mA |
|
Hole inside diameter ø60
|
SCD3-10mA | SCD3-20mA | SCD3-50mA | SCD3-100mA |
|
Hole inside diameter ø18
|
SCD6-10mA | SCD6-20mA | SCD6-50mA | SCD6-100mA |
|
Hole inside diameter ø80
|
SCD9-10mA | SCD9-20mA | SCD9-50mA | SCD9-100mA |
| Parameters(25°C) Model | SCD9 -10mA | SCD9 -20mA | SCD9-50MA | SCD9-100mA | ||||||||
| Nominal Rms Current (Ipn) | ±10mA DC | ±20mA DC | ±50mA DC | ±100mA DC | ||||||||
| Measuring Range (Ip) | 2* Ipn | |||||||||||
| Load resistance Rmax | ≥10kΩ | |||||||||||
| Output Voltage | ±5V | |||||||||||
| Working voltage | ±12V~±15V(±5%) | |||||||||||
| Accuracy @ Ta=25°C | ±1% FS | |||||||||||
| Linearity @ Ta=25°C | ±1% FS | |||||||||||
| Input Offset Voltage | SCD9<±150mV | |||||||||||
| Thermal drift of Vo | < ±1mV/°C | < ±2mV/°C | < ±2mV/°C | |||||||||
| Resolution | 10uA | |||||||||||
| immunity (to external interference) | < ± 5mV When H=50A DC/m | |||||||||||
| Weight: | SCD9, about 1.3kg | |||||||||||
| Withstand voltage | 3kVrms/50Hz/min | |||||||||||
| Current consumption | <13mA | |||||||||||
| Operating temperature | -10~+75 °C | |||||||||||
| Storage temperature | -25~+80 °C | |||||||||||
A: Yes, we are manufacturer, we have our own factory, welcome to see our factory .
Q: Can I get samples to check your quality ?
A: Yes, after price and model confirmation, we can send samples, usually sample is charged.
A:It is based on the models and your quantity. Usually, standard models requires 3-8 days after receiving deposit for the first order ,
5 days for repeat order. For customerized model requires 7-10 days to produce. We suggest to contact us 2 weeks in advance.
A:We accept payment by T/T, Western Union, Paypal, L/C
| Battery Management System (BMS) | Uninterruptible Power System (UPS) | Direct Current Panel |
| New Solar Energy Equipment | Variable Frequency Drive (VFD) | High Speed Rail Control System |
And other industries areas such as SMPS, Combines box and Power supplier for welding machince applications.
