1. Automatically complete the fixed-length thermal cutting, hem folding, bottom sewing, thread breaking and bagging of woven bag barrel cloth to save labor.
2. After heating, the bag will not stick, easy to open.
3. Automatic counting, feeding in whole stack with adjustable quantity.
4. PLC touch screen control, servo motor drive, precise control of bag length.
5. Electric winding, simple operation, reliable quality, stable performance, very low failure rate.
6. Special specifications can be customized according to customer requirements.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SHARE
-
Model Number:
-
SRBZD-RQF
-
Voltage:
-
220v/380v or customize as your request
-
Dimension(L*W*H):
-
5000*4000*1200 mm
-
Weight:
-
2000 KG
-
Max Speed:
-
25-45pcs/min
-
Name:
-
Jute non woven bag sewing machine bag cutting machine
-
Keywords:
-
non woven bag making machine
-
kw:
-
sewing machine bag
-
Speed:
-
25-45pcs/min
-
Maximum reel diameter:
-
1200 mm
-
Cutting length:
-
500-1300mm
-
Cutting width:
-
400-800mm
-
key word:
-
flour bag sewing machine
-
keyword:
-
non woven bag cutting machine
-
Product name:
-
woven bag cutting and sewing machine
Quick Details
-
Machine Type:
-
cutting and sewing machine
-
Bag Type:
-
woven Bag
-
Material:
-
Non Woven Bag
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SHARE
-
Model Number:
-
SRBZD-RQF
-
Voltage:
-
220v/380v or customize as your request
-
Dimension(L*W*H):
-
5000*4000*1200 mm
-
Weight:
-
2000 KG
-
Max Speed:
-
25-45pcs/min
-
Name:
-
Jute non woven bag sewing machine bag cutting machine
-
Keywords:
-
non woven bag making machine
-
kw:
-
sewing machine bag
-
Speed:
-
25-45pcs/min
-
Maximum reel diameter:
-
1200 mm
-
Cutting length:
-
500-1300mm
-
Cutting width:
-
400-800mm
-
key word:
-
flour bag sewing machine
-
keyword:
-
non woven bag cutting machine
-
Product name:
-
woven bag cutting and sewing machine
Product Description

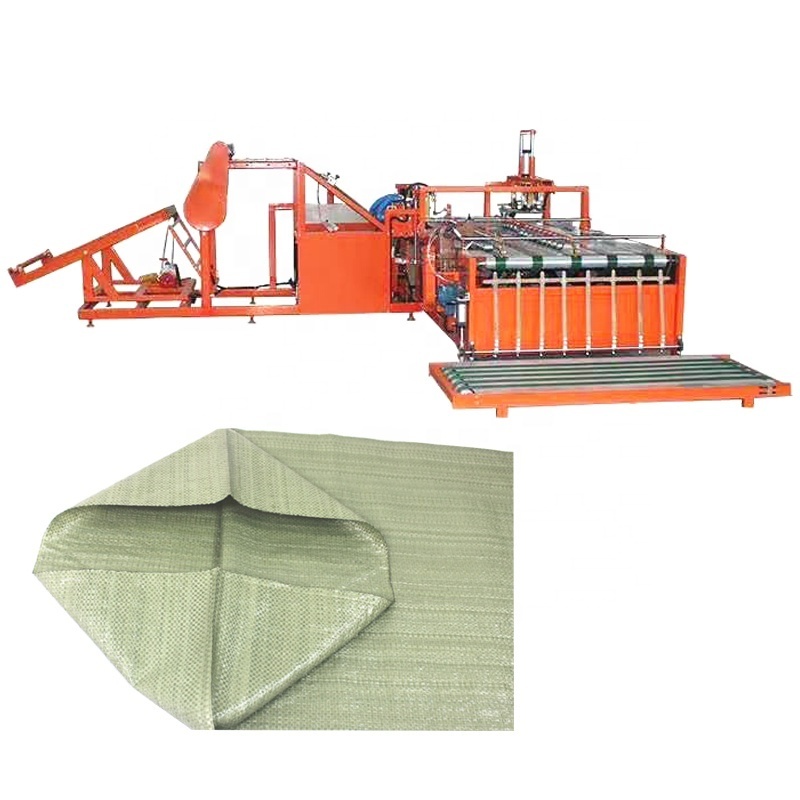

Plastic Bags Machine Making Automatic Jute Non Woven Bag Making Machine Pp Woven Bag Making Machine
This product uses the unique technology, according to the woven bag cutting, the seam production process, according to today's labor cost rise, the production process of the original backward, professional design of one-stop automatic professional equipment, the product standard, neat. The production procedure achieves the humanized service completely. It can completely replace the previous heavy manual labor.
Detail Images
Features:
The working procedure is divided into winding - cutting - holding - sewing - bagging.
Winding
cutting
Holding and Sewing
bagging
|
Model
|
SRBZD-RQF
|
|
Voltage
|
220v/380v or customize as your request
|
|
Production speed
|
25-45pcs/min
|
|
Power
|
5 kw
|
|
Max bag length
|
500-1300mm
|
|
Max bag cutting width
|
400-800mm
|
|
Max printing length
|
1200mm
|
|
Max printing width
|
600mm
|
|
Folding width
|
1200 mm
|
|
Sewing distance
|
5-14mm
|
|
Weight
|
2000 kg
|
|
Dimension
|
5000*4000*1200 mm
|
More pictures of our bags cutting and sewing machine
We also have bags printing machine
Final Woven Bags
