- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Vanhe
-
Model Number:
-
SSW-073
-
Product name:
-
Shed Designs Warehouse Prefabricated
-
Keyword:
-
Steel construction warehouse
-
Column and purlin:
-
C section and Z section
-
Door and windows:
-
Double sliding door,PVC or Aluminium window
-
Material:
-
Q235,Q345
-
Purlin:
-
C-section and Z-section
-
Window:
-
Aluminium Alloy ,PVC,Etc.
-
Applications:
-
Warehouse,Workshop,Chicken house,Etc.
-
Wall:
-
50mm/75mm Sandwich Panel
-
Life Span:
-
50years
Quick Details
-
Grade:
-
Steel structure
-
Tolerance:
-
±1%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Vanhe
-
Model Number:
-
SSW-073
-
Product name:
-
Shed Designs Warehouse Prefabricated
-
Keyword:
-
Steel construction warehouse
-
Column and purlin:
-
C section and Z section
-
Door and windows:
-
Double sliding door,PVC or Aluminium window
-
Material:
-
Q235,Q345
-
Purlin:
-
C-section and Z-section
-
Window:
-
Aluminium Alloy ,PVC,Etc.
-
Applications:
-
Warehouse,Workshop,Chicken house,Etc.
-
Wall:
-
50mm/75mm Sandwich Panel
-
Life Span:
-
50years
Product Description
Product Description
|
Steel framework
(Q235B,Q345B) |
1.Steel beam
2.Steel column 3.Bracing 4.H cross-section steel,box cross-section steel,round pipe,round steel, L steel,etc. |
|
|
|
|||
|
Wall and roof
|
1.Single steel sheet 0.36mm-0.6mm thick
2.Sandwich panel with EP,PU,glass wool and rock wool(50-120mm) |
|
|
|
|||
|
Door
|
1.Roller door
2.Sliding door and sidewall door 3.Steel sheet, sandwich panel or aluminum-alloy. 4.According to your requirements |
|
|
|
|||
|
Window
|
1.Sliding window
2.Plastic-steel frame or aluminum frame 3.According to your requirements |
|
|
|
|||
|
Gutter
|
1.Aluminum-zinc steel sheet
2.Stainless sheet |
|
|
|
|||
|
Downpipe
|
1.PVC
2.Stainless pipe |
|
|
|
|||
|
Skylight panel
|
FRP,1.5mm,2.0mm,2.5mm,according to your requirements
|
|
|
|
|||
|
Ventilation
|
1.Turbine vent
2.Ridge vent 3.According to your requirements |
|
|
|
|||
|
Other materialss
|
Self-screwing tapping,bolt,nut etc.
|
|
|
|
|||
1.COST-EFFICIENCY:
Faster design/build process / Lowered labor costs / Reduced maintenance costs
2.DURABILITY:
Steel is resistant to many of the typical threats experienced by wood, such as rot, mold,
mildew, pests and fire.
3.CLEAR SPAN-ABILITY:
The less structural obstructions required for your building the more square
footage you can put to work for your company's bottom line.
4.FLEXIBLE DESIGN OPTIONS:
Your warehouse can also be designed to incorporate a mix of clear
span spaces and traditional office spaces or living spaces.
5.ECO-FRIENDLY:
Cool metal roofs / Vapor barriers / Vapor barriers / Solar panels
Transaction Records And Feedback
* All pictures are shot based on practicality, and anyone who plagiarizes them will be called to account.
* To protect our customers' privacy, we will cover their profile pictures and names.
Overseas Case
Recommend Products
Core Material
Materials:

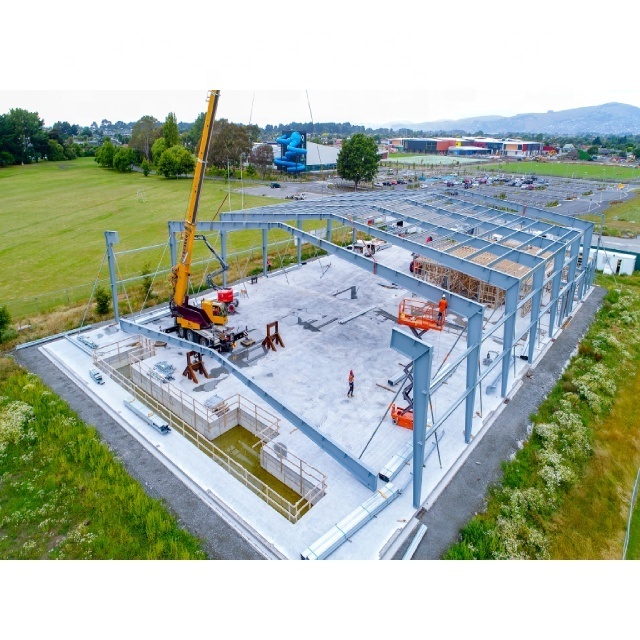

1. The main frame of light steel structure warehouse(columns and beams) is made of welded H-
style steel.
2. The columns are connected with the foundation by pre-embedding anchor bolt.
3. The beams and columns, beams and beams are connected with high intensity bolts.
4. The envelop construction net is made of cold form C-style purlins.
5. The wall and roof are made of color steel board or color steel sandwich panels, which are connected wi
th the purlins by Self-tapping nails.
6. Doors and windows can be designed at anywhere which can be made into normal type, sliding type or r
oll up type with material of PVC, metal, alloy aluminum, sandwich panel and So on.
