- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Allraise
-
Voltage:
-
110V-240V, 110V-240V
-
Dimension(L*W*H):
-
1450*710*970mm
-
Weight:
-
110 kg
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
12 Stations Automatic Paper Sheet Collator Collating Machine
-
Stations:
-
12
-
Applicable paper:
-
Max Paper Size: 330*490mm Min Paper Size:120*120mm
-
Capacity of each tray:
-
28mm (300 sheets of 80g/m2)
-
Capacity of paper delivery tray:
-
65mm (600 sheets of 80g/m2)
-
Paper thickness:
-
50-120g/m2 for middle tray; 50-210g/m2 for bottom and top tray
-
Max.Speed:
-
3500/hour (A4); 3200/hour (A3)
-
LCD Display:
-
Feed error, Double feed, Jam, No paper, Stacker full
-
Stacker:
-
Straight, Crisscross
Quick Details
-
Type:
-
Paper Collating Machine
-
Production Capacity:
-
3500 times/hour
-
Max. workable width:
-
330mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Allraise
-
Voltage:
-
110V-240V, 110V-240V
-
Dimension(L*W*H):
-
1450*710*970mm
-
Weight:
-
110 kg
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
12 Stations Automatic Paper Sheet Collator Collating Machine
-
Stations:
-
12
-
Applicable paper:
-
Max Paper Size: 330*490mm Min Paper Size:120*120mm
-
Capacity of each tray:
-
28mm (300 sheets of 80g/m2)
-
Capacity of paper delivery tray:
-
65mm (600 sheets of 80g/m2)
-
Paper thickness:
-
50-120g/m2 for middle tray; 50-210g/m2 for bottom and top tray
-
Max.Speed:
-
3500/hour (A4); 3200/hour (A3)
-
LCD Display:
-
Feed error, Double feed, Jam, No paper, Stacker full
-
Stacker:
-
Straight, Crisscross
Products Description

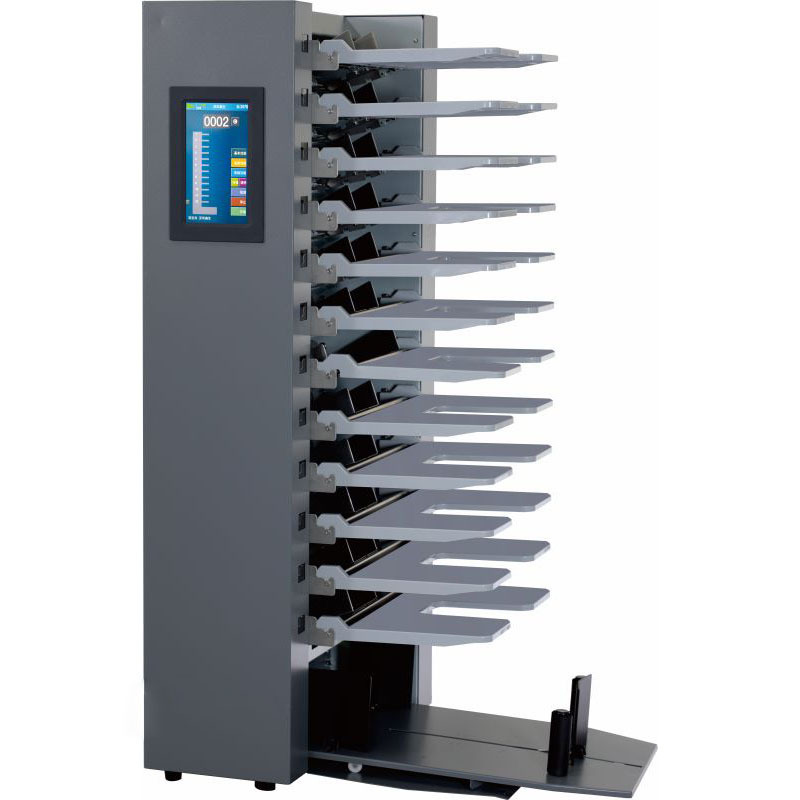

12 Stations Automatic Paper Sheet Collator Collating Machine
Main Features For 12 Stations Automatic Paper Sheet Collator Collating Machine
1. Digital counter, with counting, preset number and reset function.
2.The new control pannel, operating status, the wrong way and the wrong location can reflect on it for quick inspection and correction.
3.Bidirectional display missing sheet, double sheets, cardboard and paper units receive full ect. function detection, auto shut-down.
4.Friction wheel centering feeding system.
5.Upright and crossbar collection paper way.
5.Upright and crossbar collection paper way.
6.8 inch color touch screen, easy to operate.
7.The maximum speed of up to 3500books
8.In addition to the basic double test, missing page error, paper full detection, but also the following advanced features:
1).Interval adjustment between paper.
2). Machine speed adjustment
3). Programmable page, you can group or no grouping circumstances,any set of pages for the inset;
4). Run status can be saved, the next boot do not have to set.
5). Wireless remote control machine can run and stop.
6). Double sensitivity adjustment, to deal with a variety of such as transparent paper and other critical paper.
7). A variety of ways to feed the wrong tips, LCD display, front digital display, voice prompts.
8). Simple and clear help information, you can quickly read familiar with the operation of the machine.
9). Failure statistics function, to facilitate the mechanical and mechanical aspects of the tune into and aftermarket.
7.The maximum speed of up to 3500books
8.In addition to the basic double test, missing page error, paper full detection, but also the following advanced features:
1).Interval adjustment between paper.
2). Machine speed adjustment
3). Programmable page, you can group or no grouping circumstances,any set of pages for the inset;
4). Run status can be saved, the next boot do not have to set.
5). Wireless remote control machine can run and stop.
6). Double sensitivity adjustment, to deal with a variety of such as transparent paper and other critical paper.
7). A variety of ways to feed the wrong tips, LCD display, front digital display, voice prompts.
8). Simple and clear help information, you can quickly read familiar with the operation of the machine.
9). Failure statistics function, to facilitate the mechanical and mechanical aspects of the tune into and aftermarket.
|
Product Name
|
12 Stations Automatic Paper Sheet Collator Collating Machine
|
|
Stations
|
12
|
|
Applicable paper
|
Max Paper Size: 330*490mm
Min Paper Size:120*120mm |
|
Capacity of each tray
|
28mm (300 sheets of 80g/m2)
|
|
Capacity of paper delivery tray
|
65mm (600 sheets of 80g/m2)
|
|
Paper thickness Of Top and bottom tray
|
50-210g/m2
|
|
Paper thickness of middle tray
|
50-120g/m2
|
|
Max.Speed
|
3500/hour (A4); 3200/hour (A3)
|
|
Voltage
|
110V-240V, 50/60HZ
|
|
Counter
|
Count down, count up
|
|
LCD Display
|
Feed error, Double feed, Jam, No paper, Stacker full
|
|
Stacker
|
Straight, Crisscross
|
|
Other Functions
|
Paper eject backwards, Total count
|
|
Weight
|
95/115KG
|
|
Dimension
|
1680*600*970mm
|
Related Products
Contact us
Contact Person: Vivian
Email: vivian@allmachine.cn
Wechat/Whatsapp/Viber : +8619138001306
Package&Shipping
|
Packaging
|
By container or standard export packing per machine
|
|
Delivery time
|
5-10 working days after payment received
|
