ZL720 Multifunctional Vertical Packaging Machine for fried chips snack food

ZL720 Multifunctional Vertical Packaging Machine for fried chips snack food

FOB Reference Price: Get Latest Price

≥1 Sets

US $12000

≥2 Sets

US $10000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 850

Voltage:: 380V 50/60HZ

Place of Origin:: Anhui, China

Brand Name:: IAPACK

Dimension(L*W*H):: (L)3500*(W)2000*(H)30000mm

Equipment material:: 304 stainless steel

film material:: laminated film

Control system:: PLC

motor brand:: import

film thickness:: 0.04 0.12mm

compressed air requirement:: 0.6Mpa 0.6m3

Reel outer diameter:: 400mm

core inner diameter:: 75mm

power source:: 220V 380V

packing weight:: 100g-2000g

Quick Details

Function:: FILLING, Sealing

Packaging Type:: Film

Packaging Material:: Plastic

Weight (KG):: 850

Voltage:: 380V 50/60HZ

Place of Origin:: Anhui, China

Brand Name:: IAPACK

Dimension(L*W*H):: (L)3500*(W)2000*(H)30000mm

Equipment material:: 304 stainless steel

film material:: laminated film

Control system:: PLC

motor brand:: import

film thickness:: 0.04 0.12mm

compressed air requirement:: 0.6Mpa 0.6m3

Reel outer diameter:: 400mm

core inner diameter:: 75mm

power source:: 220V 380V

packing weight:: 100g-2000g

Product Overview

Automatic Vertical Film Forming Sealing Packing Machine (ZL320 420 520 720 - 1200)

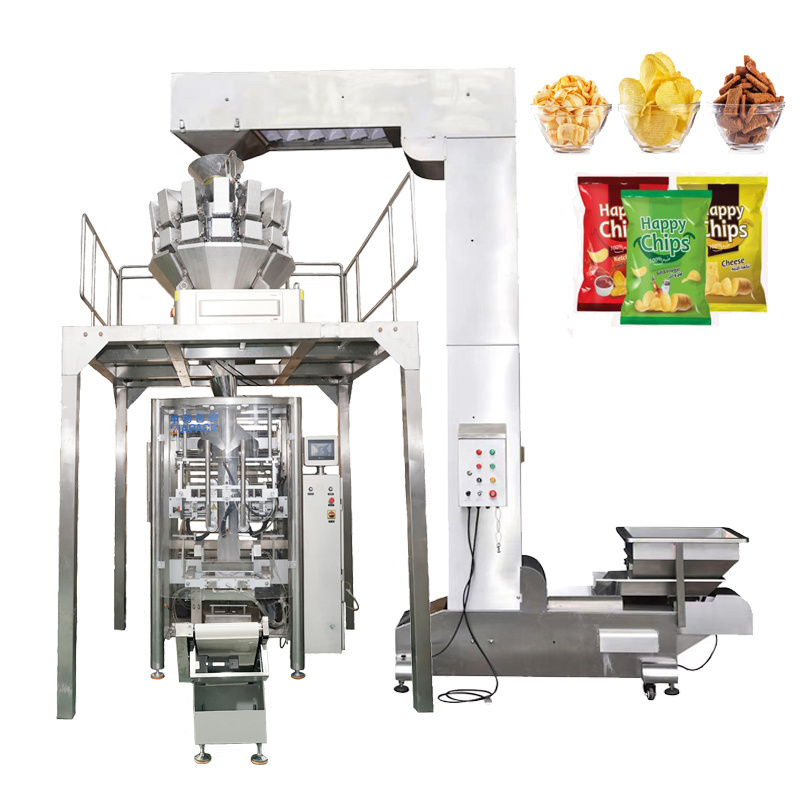

This machine unit including one set multi head weighing machine or linear weigher ,one set vertical bag forming filling machine. Oneset incline belt conveyor .one set Platform and safety ladder and one set output conveyor .The whole machine can automatic make the bag ,weighing the product ,filling the product into bag and sealing the bag .Widely use for automatic packing various frozen food like meat ball,dumplings,vegetables,Chicken piece,shrimp and so on.

FEATURES AT A GLANCE

MACHINE STRUCTURE

EXTENDING UNDERCARRIAGE

SAFETY FRAME

SIMPLE CONTROL

SEASY MAINTENANCE

VERSATILITY

EXTENDING UNDERCARRIAGE

Machine body

HMI

control box

PRODUCT SPECIFICATIONS

No	Item	Data
1	Power	5KW
2	machine dimension	4.6 M3
3	Max.film width (520)	530mm
4	Max. film width(720)	730mm
5	Max. film width(9000)	900mm
6	Max.film width(1200)	1200mm
7	Machine material	304S.S.
8	packing weight	1kg-20kg
