Quick Details
-
Warranty:
-
1 Years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Gastac
-
Model Number:
-
GTL120
-
Name:
-

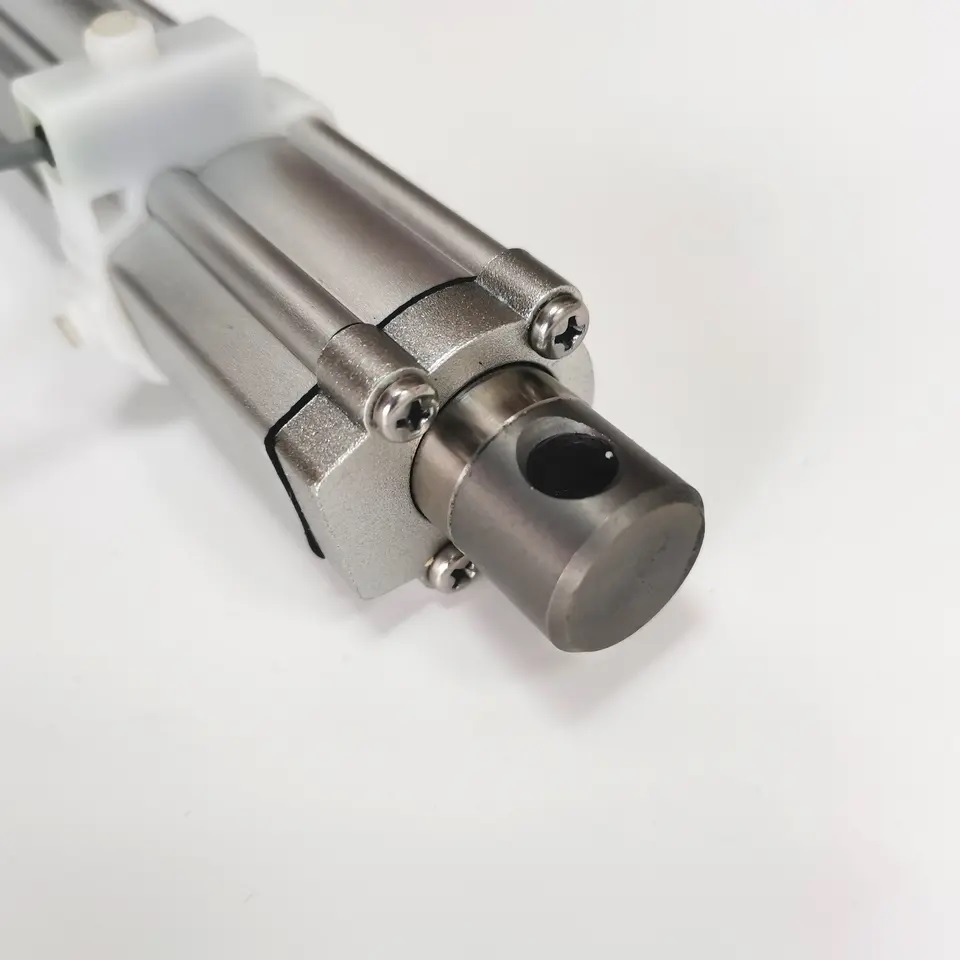

Waterproof Electric Linear Actuator
-
Input Voltage:
-
12V
-
Color:
-
Silver
-
Stroke Length:
-
Customized Stroke Available
-
Material:
-
Aluminum alloy
-
Noise:
-
50dB
-
Max Load:
-
2000N
-
Duty cycle:
-
10%-20%
-
Protection Grade:
-
IP65
-
Power:
-
50W
Quick Details
-
Speed(RPM):
-
5-55mm/s
-
Continuous Current(A):
-
4A
-
Efficiency:
-
IE 2
-
Warranty:
-
1 Years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Gastac
-
Model Number:
-
GTL120
-
Name:
-
Waterproof Electric Linear Actuator
-
Input Voltage:
-
12V
-
Color:
-
Silver
-
Stroke Length:
-
Customized Stroke Available
-
Material:
-
Aluminum alloy
-
Noise:
-
50dB
-
Max Load:
-
2000N
-
Duty cycle:
-
10%-20%
-
Protection Grade:
-
IP65
-
Power:
-
50W
|
Product Name
|
24V electric linear actuator for medical bed
|
|
Thrust
|
Up to 1000N
|
|
Color
|
Light gray or black
|
|
Manual lowering
|
Red
|
|
Input voltage
|
24VDC
|
|
Stroke length
|
0-400mm(±2mm)
|
|
Retracted length
|
L=S+110 (S＜300),L=S+120(300≤S≤400)
|
|
No-load speed (db)
|
≤48dB(A)@500mm (Environment noise≤37 dB(A))
|
|
Protective measures
|
Built-in electrical limit switches
|
|
Te number of life
|
≥10000 times
|
|
Working system
|
10% ，Max.2min./22min.
|
|
The level of protection
|
IP54
|
|
Environment temperature
|
+5℃～+40℃
|
|
Application
|
Electric nursing bed, operating bed, traction bed, massage chair, dental chair, electric wheelchair, electric sofa, electric exhibition stand, electric skylight, human engineering furniture and other occasions that need linear motion actuator are installed very conveniently, which are widely used in medical treatment, fire protection, home furnishing, electric mechanical, chemical industry, sanitary ware, leisure and other fields.
|
