Quick Details
-
Filling Accuracy:
-
±0.1
-
Voltage:
-
110v/220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
STRONG
-
Dimension(L*W*H):
-
36*36*36cm
-
Weight:
-
14 KG
-
filling range:
-
5-4500ml
-
small bottle filling machine speed:
-
20-40bottle/min
-
set:
-
0.01s~999.9s
-
Filling flow:
-
4.5L/min
-
Suitable for bottle size:
-
50-300mm
-
Filling type:
-
Milk, Water, Juice, liquid
-
small bottle filling machine apply:
-
any liquid material
-
small bottle filling machine pump:
-
material 316ss
Quick Details
-
Machinery Capacity:
-
4000BPH
-
Packaging Material:
-
Paper, Wood
-
Filling Material:
-
Beer, Other, Milk, Water, Oil, Juice, Powder
-
Filling Accuracy:
-
±0.1
-
Voltage:
-
110v/220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
STRONG
-
Dimension(L*W*H):
-
36*36*36cm
-
Weight:
-
14 KG
-
filling range:
-
5-4500ml
-
small bottle filling machine speed:
-
20-40bottle/min
-
set:
-
0.01s~999.9s
-
Filling flow:
-
4.5L/min
-
Suitable for bottle size:
-
50-300mm
-
Filling type:
-
Milk, Water, Juice, liquid
-
small bottle filling machine apply:
-
any liquid material
-
small bottle filling machine pump:
-
material 316ss
Product Description
Product Description

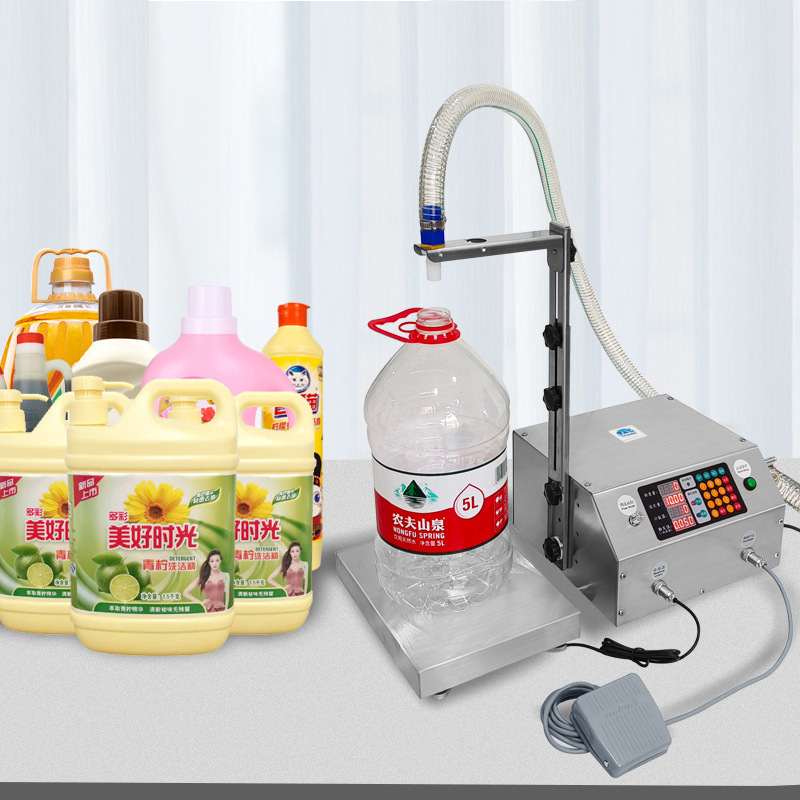

CSY-L36 automatic frequency conversion micro-filling machine uses high-precision Diaphragm pump to work with frequency converter. When it start to fill, the pump will fills at the maximum flow rate at first, ensuring fast and efficient filling. When the filling volume is about to reach the set weight, the frequency regulator automatically slows down the pump flow rate, and when the filling amount reaches the set weight, the pump will stop to work to ensure the accuracy of filling.
1. Start or brake by frequency converter control which will control the rotating speed with precision as 0.01s. So that make thefilling deviation less than 2%.
2. Filling range can from 5ml up to +∞， it is depend on the filling time you set.
3. Can be control the manual model, foot pedal switch, also can be automatic and adjust the cycling time.
4. Can be used for almost all liquid filling, specially for oil, Washing fluid, Acid-base fluid, corrosive liquid,etc.
5. The pump head is drive by magnetic power, the pump head is not connected with the motor, so don’t worry the motor will over load or leakage by the connecting shaft.
5. The pump head is drive by magnetic power, the pump head is not connected with the motor, so don’t worry the motor will over load or leakage by the connecting shaft.
6. The pump head and motor are made in Japan, and the electric parts are made in Taiwan,
with high quality and longer use life.
7. The pump head is made by 316L stainless steel which is anti-erode glove,and anti-corrosion.
with high quality and longer use life.
7. The pump head is made by 316L stainless steel which is anti-erode glove,and anti-corrosion.
Machine Parameter
|
Product number
|
CSY-L36
|
|
Maximum weighing
|
30KG
|
|
Number of filling heads
|
1
|
|
Filling volume
|
0.05-30KG
|
|
Pump type
|
Diaphragm pump
|
|
Pump flow rate
|
36L/min
|
|
Filling error
|
≤5g
|
|
Rated power
|
300W
|
|
Water pipe material
|
PVC steel wire pipe
|
|
Water pipe specifications
|
25*31mm
|
|
Length of water pipe
|
2.0Meter
|
|
Host size
|
26*26*15cm
|
|
Package weight
|
13kg
|
|
Package Size
|
35*35*35cm
|
Packing & Delivery
Packing:
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Delivery:
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
