Quick Details
-
Power:
-
3700
-
Weight:
-
750
-
Name:
-
Solid-Liquid Semi-Automatic separator Machine Centrifuge
-
Material:
-
304SS
-
Diameter(mm):
-
600
-
Capacity (L):
-
40
-
Maximum loading limit:
-
59
-
The separation factor was:
-
755R / G
-
Motor power:
-
3KW
-
Weight of the whole machine:
-
650KG
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZZKD
-
Voltage:
-
220V/380V
-
Power:
-
3700
-
Weight:
-
750
-
Name:
-
Solid-Liquid Semi-Automatic separator Machine Centrifuge
-
Material:
-
304SS
-
Diameter(mm):
-
600
-
Capacity (L):
-
40
-
Maximum loading limit:
-
59
-
The separation factor was:
-
755R / G
-
Motor power:
-
3KW
-
Weight of the whole machine:
-
650KG

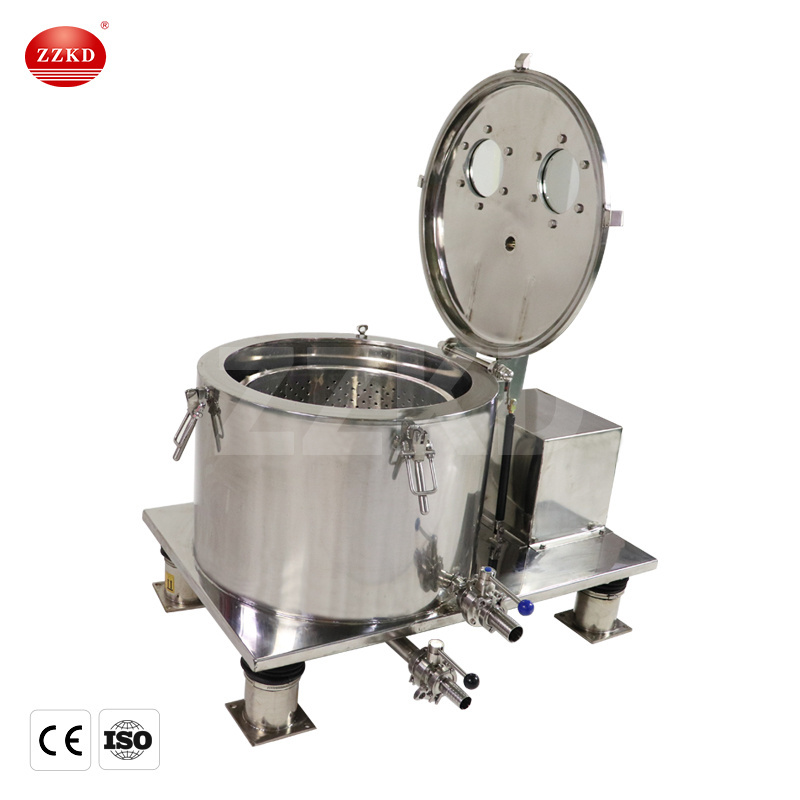

Solid-Liquid Semi-Automatic separator Machine Centrifuge Vancouver warehouse in stock
The Solid-Liquid Semi-Automatic Machine Centrifuge is top discharging, hermetic closure type equipment. The material is fed into the drum through the feeding pipe on the hermetic closure casing; under the action of the centrifuge force field, the liquid-phase passes through the filter medium and the discharged out of the machine, while the solid-phase material is retained inside the drum and, after the machine is stopped, the material is discharged from the top. The centrifuge has such features as smooth running, easy & convenient operation as well as conducting feeding, washing and dehydrating under the state of hermetic closure, etc.
|
Model |
PPTD-10 |
PPTD-30 |
PPTD-50 |
PPTD-135 |
PPTD-200 |
PPTD-400 |
|
Drum capacity (L) |
14 |
40 |
85 |
185 |
295 |
450 |
|
Jacket volume (L) |
22 |
30 |
43 |
75 |
110 |
150 |
|
Loading limit (lbs) |
15 |
60 |
120 |
270 |
500 |
940 |
|
Plant material loading limit (lbs) |
4 |
16 |
30 |
70 |
100 |
180 |
|
Speed (R/ min) |
2700 |
1900 |
1500 |
1200 |
1000 |
960 |
|
Separation factor (g) |
1225 |
910 |
755 |
645 |
560 |
620 |
|
Motor (k W ) |
1.1 |
1.5 |
3 |
5.5 |
7.5 |
15 |
|
Frequency converter (k W ) |
1.5 |
2.2 |
4 |
7.5 |
11 |
18.5 |
|
Net weight (kg) |
280 |
400 |
750 |
1700 |
2350 |
3100 |
|
Drum diameter (mm) |
300 |
450 |
600 |
800 |
1000 |
1200 |
