Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
alwaylink
-
Place of Origin:
-
Guangdong, China
-
Chipset:
-
MTK7628
-
Flash:
-
16MB
-
RAM:
-
DDR2 128MB
-
3G/4G Module:
-
Optioanl
-
SIM card slot:
-
1 SIM Card Slots
-
PCIE interface:
-
1 PCIE interface
-
Wireless Rate:
-
300Mbps
-
Name:
-
2.4ghz frequency 300mbps bonding 4G LTE wireless router
-
LED:
-
Power,USB,2.4G,WAN,LAN1,LAN2,LAN3,LAN4
-
Power:
-
DC12V /1A
Quick Details
-
Max. LAN Data Rate:
-
300Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
alwaylink
-
Place of Origin:
-
Guangdong, China
-
Chipset:
-
MTK7628
-
Flash:
-
16MB
-
RAM:
-
DDR2 128MB
-
3G/4G Module:
-
Optioanl
-
SIM card slot:
-
1 SIM Card Slots
-
PCIE interface:
-
1 PCIE interface
-
Wireless Rate:
-
300Mbps
-
Name:
-
2.4ghz frequency 300mbps bonding 4G LTE wireless router
-
LED:
-
Power,USB,2.4G,WAN,LAN1,LAN2,LAN3,LAN4
-
Power:
-
DC12V /1A
Products Description
Product Description

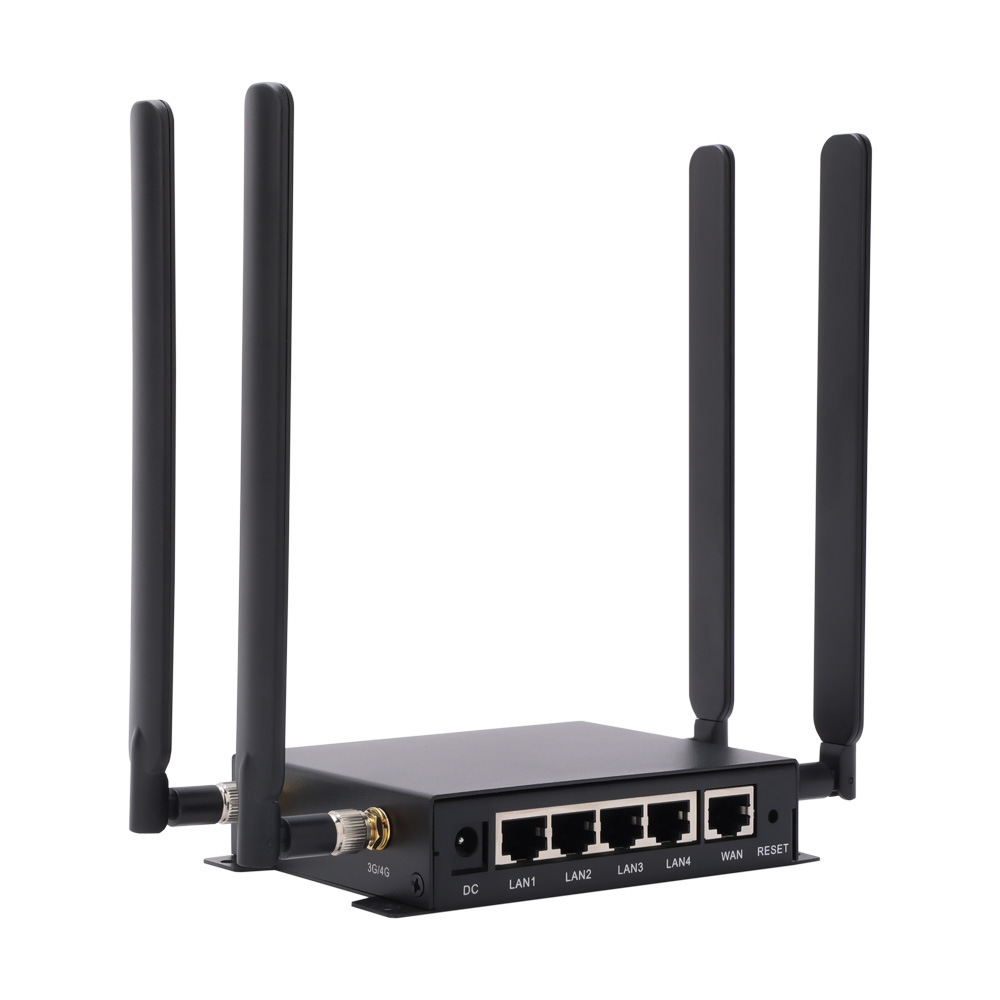

HL-WR843T uses MTK7628 solution. The main frequency is up to 580MHz. It supports 1*10/100M WAN + 4*10/100M LAN+ 1*USB port + 1*SIM card slot + 1*MINIPCI-E slot. 2.4GHz is 300Mbps. The built-in MINI PCI-E can connect 3G/4G modules according to customer needs, and can support CAT4 and CAT6 modules. Support Open-VPN, PPTP, L2TP, IPSec.
Compliant with IEEE802.11b/g/n wireless network protocol, two external 5dBi antennas. The coverage range is over 100 meters and supports approximately 30 access points. Support Openwrt firmware.
Wireless transmission speed 300Mbps
1*10/100M WAN
4*10/100M LAN
1*SIM card slot
1*USB interface
1*MINI PCI-E slot
Support Uboot flashing
Supports 64/128-bit WEP encryption, WPA/WPA2, SPA-PSK/WPA2-PSK and other encryption security mechanisms
10 for wireless standby, 4 to 5 for high-definition video, and about 10 for wired.
Support Openwrt firmware
FDD:B1/B3/B5/B8
TDD: B34/B38/B39/B40/B41
WCDMA:B1/B5/B8
GSM/EDGE:B3/B8
AL-WR843-EU
FDD:B1/B3/B7/B8/B20/B28
TDD:B38/B40/B41
WCDMA:B1/B8
GSM/EDGE:B3/B8
AL-WR843T-AU
FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66
TDD:B40
WCDMA:B1/B2/B4/B5/B8
GSM/EDGE:B2/B3/B5/B8
AL-WR843T-J
LTE-FDD：B1/B3/B8/B18/B19/B26
LTE-TDD：B41
WCDMA：B1/B6/B8/B19
AL-WR843T-AF
FDD:B2/B4/B5/B12/B13/B14/B66/B71
WCDMA:B2/B4/B5
AL-WR843-CN
FDD:B1/B3/B5/B8
TDD: B34/B38/B39/B40/B41
WCDMA:B1/B5/B8
GSM/EDGE:B3/B8
AL-WR843-EU
FDD:B1/B3/B7/B8/B20/B28
TDD:B38/B40/B41
WCDMA:B1/B8
GSM/EDGE:B3/B8
AL-WR843T-AU
FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66
TDD:B40
WCDMA:B1/B2/B4/B5/B8
GSM/EDGE:B2/B3/B5/B8
AL-WR843T-J
LTE-FDD：B1/B3/B8/B18/B19/B26
LTE-TDD：B41
WCDMA：B1/B6/B8/B19
AL-WR843T-AF
FDD:B2/B4/B5/B12/B13/B14/B66/B71
WCDMA:B2/B4/B5
|
Main Chipset
|
MTK7628 / 580MHZ
|
|
RAM
|
DDR2 128MB
|
|
SPI FLASH
|
SPI 16MB
|
|
Wireless Standards
|
IEEE802.11n/802.11g/802.11b
|
|
Wireless Speed
|
300Mbps
|
|
Work Frequency
|
2.4GHz(2T2R)
|
|
Antenna
|
4 external 5dBi antenna
|
|
Interface
|
1* 10/100M WAN
4* 10/100M LAN 1* USB port 1* SIM Card Slot 1* PCI-E Slot |
|
LED
|
Power,USB,2.4G,WAN,LAN1,LAN2,LAN3,LAN4
|
|
Button
|
Reset
|
|
Max Power consumption
|
< 15W |
|
Dimensions
|
131*88.5*28.6mm
|
