Quick Details
-
Brand Name:
-
Yunyi
-
Model Number:
-
HC-Y810
-
Max. Current:
-
10A
-
Max. Working Pressure:
-
100MPA
-
Name:
-
hydraulic water pump vacuum 12v pressure control switch
-
Control range::
-
-0.1~0~100Mpa
-
Stability:
-
≤ 0.2% / year
-
Display:
-
4-digit LED display
-
Power supply range:
-
24V ± 20%
-
Load capacity:
-
<24V1.2A
-
Protection class:
-
IP65
-
Ambient temperature:
-
-30 ℃ ~ 70 ℃
-
Storage temperature:
-
-40 ℃ ~ 85 ℃
-
Control accuracy:
-
≤ ± 0.5% FS
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
240V
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Yunyi
-
Model Number:
-
HC-Y810
-
Max. Current:
-
10A
-
Max. Working Pressure:
-
100MPA
-
Name:
-
hydraulic water pump vacuum 12v pressure control switch
-
Control range::
-
-0.1~0~100Mpa
-
Stability:
-
≤ 0.2% / year
-
Display:
-
4-digit LED display
-
Power supply range:
-
24V ± 20%
-
Load capacity:
-
<24V1.2A
-
Protection class:
-
IP65
-
Ambient temperature:
-
-30 ℃ ~ 70 ℃
-
Storage temperature:
-
-40 ℃ ~ 85 ℃
-
Control accuracy:
-
≤ ± 0.5% FS
Description hydraulic water pump vacuum 12v pressure control switch
It is an intelligent digital pressure switch setting pressure measurement, pressure display, control in one professional unit. It has followed features: easy operation, good shock resistance, high precision, long-term stability.
It can realize the control function: low pressure to stop, the high pressure to start or the high pressure to stop, the low pressure to start. The control pressure can be set up in the whole range. It also has the followed functions: delay control, reverse control, three pressure units to change, one key to error clearing, leakage pressure protection, password protection, pressure detection automatically.
It is widely used in building water supply, hydraulic pressure control, supporting equipment of automated machine.
Specification hydraulic water pump vacuum 12v pressure control switch
|
Pressure Range |
0-0.2...0.6...1...1.6...2.5...5...10...25...40...60Mpa |
|
Overload Pressure |
150% |
|
Acc. |
0.5%FS |
|
Supply |
24VDC, 220VAC, 380VAC (Selectable) |
|
Alarm Point Set |
Any point can be set within the range. |
|
Output Signal |
Relay signal |
|
Load Capacity |
380V 3A 220V 5A 24V 5A |
|
Sampling Frequency |
5 Times/sec |
|
Operation Temperature |
-20℃~ 80℃ |
|
Measurement Medium |
Liquid, gas compatible with 316L stainless steel. |
|
Connection Protection |
Reverse protection, short-circuit protection |
|
Connector |
M20*1.5, G1/2, G1/4 (selectable) |
|
Outlet Line |
Power: red blue Output: black white |
APPEARANCE&CONNECTION METHOD hydraulic water pump vacuum 12v pressure control switch
Working Method : When the pressure increases to the set upper limit of pressure, the black and white lines are disconnected; when the pressure decreases to the lower limit pressure, the black and white lines are connected.
Reverse control function(t000) can be opened in system function to achieve: high pressure to start, low pressure to stop.
* The outlet color finally is based on the product label.

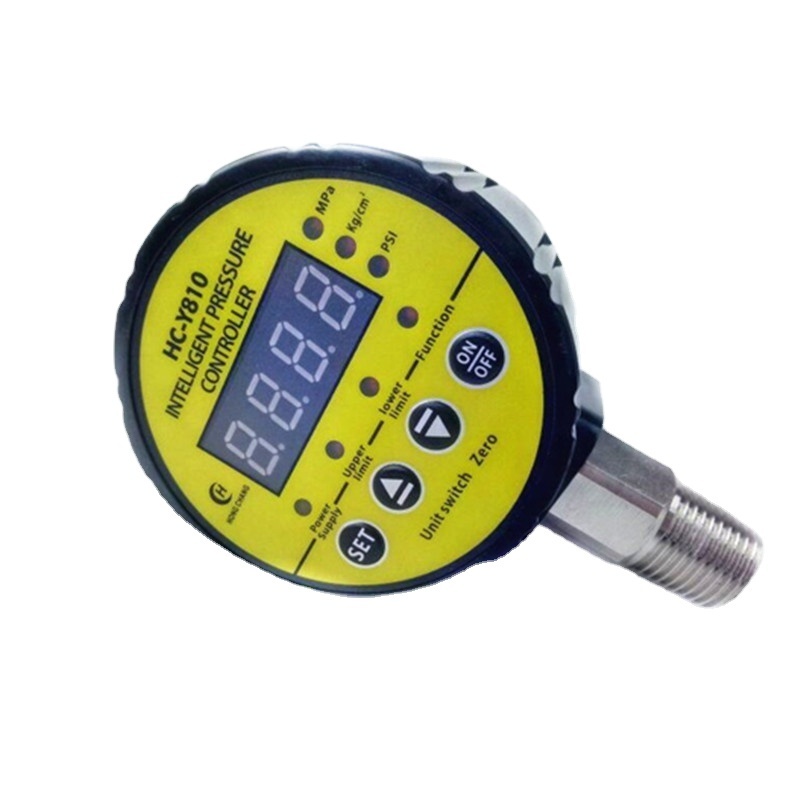

Detailed Images hydraulic water pump vacuum 12v pressure control switch
