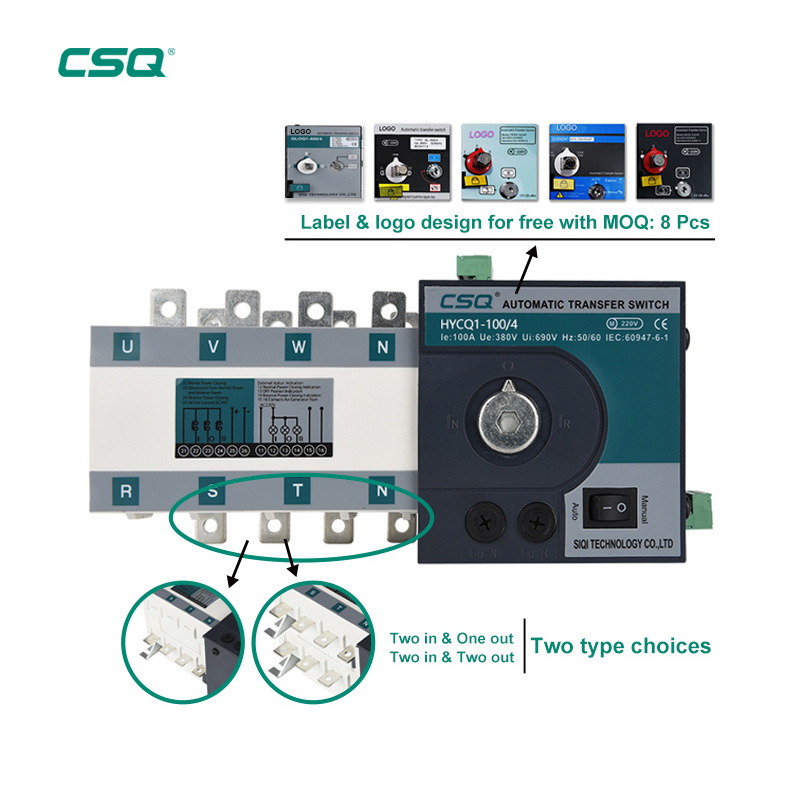

HYCQ1 Dual Power Automatic Transfer Switch Series is a kind of new automatic transfer switch gathered switch and logic controller, achieve mechanic and electricity turn into a integral whole. It is suitable for using in the distribution equipment in industry and business with rated insulating voltage up to 690V, rated frequency 50Hz/60Hz, rated voltage 380V, conventional heating current up to 3200A, supplying for switch automatically of Normal power and reserve power in power system or switch automatically and safety isolation of two sets load device etc. It can be used for hospital, shop, bank, high building, coal mine, telecommunication, iron mine, superhighway, airport, industrial flowing water line and military installation etc.important situation where disallow power supply failure.
The switch can achieve full-automatic, compulsory “0”, remote control, urgent manual-operation; while have lack phase examination and protection, under/over voltage examination and protection, frequency examination and protection and delay regulation, electric mechanism interlock etc. function.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
CSQ
-
Model Number:
-
HYCQ1
-
Rated Current:
-
400A
-
Name:
-
Three Phase Automatic Transfer Switch 200 amp Single Phase
-
Keywords:
-
Automatic Transfer Switch
-
temperature:
-
-25 to 55
-
certificate:
-
CE,CCC,ISO9001,PICC
-
Product name:
-
ATS
-
Rated current:
-
16~3200A
-
Warranty:
-
18 Months
-
Frequency:
-
50/60Hz
-
Pole:
-
4 Pole
-
Payment:
-
T/T
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CSQ
-
Model Number:
-
HYCQ1
-
Rated Current:
-
400A
-
Name:
-
Three Phase Automatic Transfer Switch 200 amp Single Phase
-
Keywords:
-
Automatic Transfer Switch
-
temperature:
-
-25 to 55
-
certificate:
-
CE,CCC,ISO9001,PICC
-
Product name:
-
ATS
-
Rated current:
-
16~3200A
-
Warranty:
-
18 Months
-
Frequency:
-
50/60Hz
-
Pole:
-
4 Pole
-
Payment:
-
T/T
Products Description
Product Paramenters
|
Current
|
160A
|
250A
|
300A
|
400A
|
630A
|
||||
|
Rated insulation voltage Ui
|
690V
|
|
|
|
|
||||
|
Rated impaction withstand voltage Uimp
|
8KV
|
|
|
|
|
||||
|
Rated working voltage Ue
|
AC380V
|
|
|
|
|
||||
|
Rated working current Ie
|
160A
|
250A
|
300A
|
400A
|
630A
|
||||
|
Load character
|
AC33iB
|
|
|
|
|
||||
|
Rated making capacity
|
10Ie
|
|
|
|
|
||||
|
Rated breaking capacity
|
8Ie
|
|
|
|
|
||||
|
Rated limting short-circuit current
|
50KA
|
|
|
|
|
||||
|
Rated short time withstand current Ie
|
7KA
|
|
|
|
|
||||
|
Change-over time
|
1S
|
|
|
|
|
||||
|
Voltage of control power supply
|
AC220V
|
|
|
|
|
||||
|
Energy consumption of the motor
|
40W
|
|
|
|
|
||||
|
Weight Kg
|
9
|
12
|
22
|
22
|
25
|
||||
