Quick Details
-
Brand:
-
JCWY
-
Processing volume:
-
30-800m3/h
-
Pond depth:
-
600-800mm
-
Effective water depth:
-
400-550mm
-
Designed speed:
-
(1/3)-(1/5)rpm
-
Mainframe total power:
-
1.1-6.2Kw
-
Air compressor power:
-
0.18-5Kw
Quick Details
-
Place of Origin:
-
Shandong, China
-
Product name:
-
High Efficiency Flat-flow Type Air Flotation Machine
-
Application:
-
wastewater treatment
-
Brand:
-
JCWY
-
Processing volume:
-
30-800m3/h
-
Pond depth:
-
600-800mm
-
Effective water depth:
-
400-550mm
-
Designed speed:
-
(1/3)-(1/5)rpm
-
Mainframe total power:
-
1.1-6.2Kw
-
Air compressor power:
-
0.18-5Kw

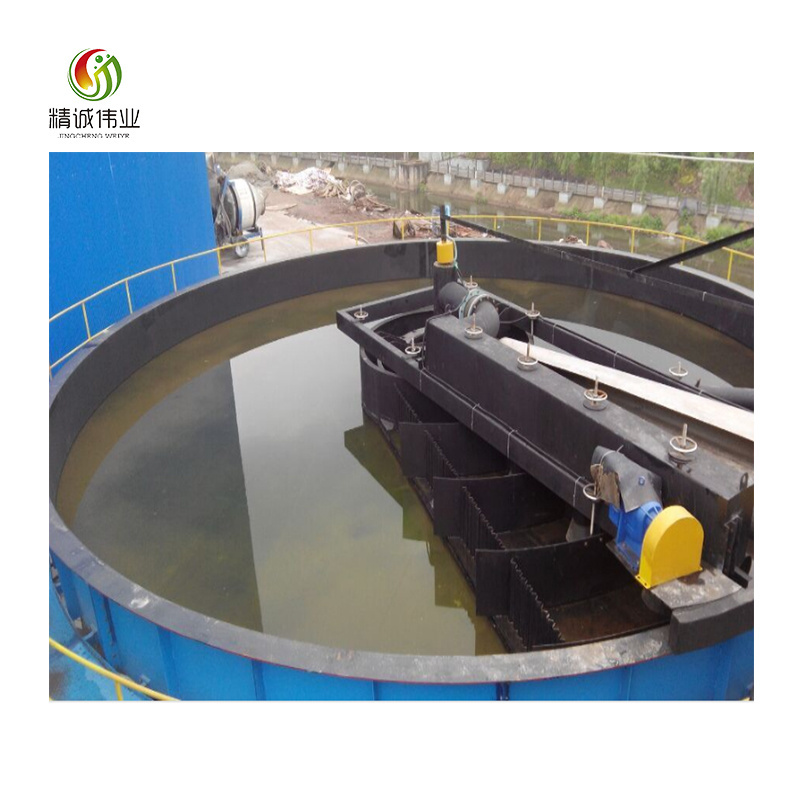

High Efficiency Flat-flow Type Air Flotation Machine
-
Effective water depth 400-550mm;
-
Hydraulic retention time in the tank: 3~5min;
-
Large amount of purification, that is, high surface load;
- Small footprint, light unit load, all prefabricated components assembled, no operation room required, equipment can be installed overhead, or multi-layer combination;
- Low installation and maintenance costs, easy to clean;
- high suspended matter removal rate of 91% or more;
- The unit has a dissolved gas efficiency of up to 90% and is only one-fifth the volume of a typical dissolved gas system.
| Processing volume (m³/h) |
30-800 |
Dissolved air water pressure ( MPa) |
≥0.4 |
|
Pond depth (mm) |
600-800 |
Designed speed( Rpm) |
(1/3)-(1/5) |
|
Effective water depth (mm) |
400-550 |
Injection pump power( Kw) |
0.18-1 |
|
Hydraulic stay time ( Min) |
3-5 |
Mainframe total power( Kw) |
1.1-6.2 |
|
Hydraulic surface load |
6-10 |
Air compressor power( Kw) |
0.18-5 |
|
Reflux ratio |
wastewater ≥30%clean water≥10% |
|
|
|
Type |
Pool Diameter (mm) |
Processing volume (mm³/h) |
Main Engine
Total Power
|
Working
Load
|
System Power (KW) |
Reactor Parameter |
Addition Stirring Power
|
||
|
Reactor Tank Size
|
Reactor Tank Stirring Power
|
Reactor Tank Working Weight
|
|||||||
|
JCQF25 |
φ3000 |
25 |
1.3 |
12 |
7 |
φ1.2×2.1 |
0.37 |
2.5 |
0.74 |
|
JCQF45 |
φ4000 |
45 |
1.85 |
16.8 |
7 |
φ1.5×2.3 |
0.34 |
4.2 |
0.74 |
|
JCQF70 |
φ5000 |
70 |
2.6 |
21.2 |
9 |
φ1.8×2.6 |
0.34 |
7.1 |
1 |
|
JCQFll0 |
φ6000 |
110 |
3.3 |
28 |
17 |
φ2.1×2.9 |
0.37 |
10.7 |
1.1 |
|
JCQFl50 |
φ7000 |
150 |
3.3 |
40 |
21 |
Φ2.4×3.0 |
0.37 |
14.2 |
1.5 |
|
JCQF200 |
φ8000 |
200 |
3.3 |
45 |
23.5 |
φ2.4×4.0 |
0.55 |
19.1 |
1.5 |
|
JCQF250 |
φ9000 |
250 |
3.3 |
46 |
23.5 |
φ2.4×4,9 |
0.55 |
24.5 |
1.5 |
|
JCQF300 |
φ10000 |
300 |
5.2 |
57 |
31.5 |
φ2.4×5.5 |
0.75 |
29.3 |
1.5 |
|
JCQF400 |
φ11000 |
400 |
6.2 |
68 |
45 |
2-φ2.4×4.0 |
2×0.55 |
2×19.1 |
2.2 |
|
JCQF450 |
φ12000 |
450 |
6.2 |
81 |
45 |
2-φ2.4×4.9 |
2×0.55 |
2×24.5 |
2.2 |
|
JCQF500 |
φ13000 |
500 |
6.2 |
93 |
46.5 |
2-φ2.4×4.9 |
2×0.55 |
2×24.5 |
2.2 |
|
JCQF600 |
φ14000 |
600 |
6.2 |
1 10 |
46.5 |
2-φ2.4×5.5 |
2×0.55 |
2×29.2 |
2.2 |
