Quick Details
-
Dimension(L*W*H):
-
1300*1100*1750mm
-
Weight:
-
1100 KG
-
Marketing Type:
-
New Product 2023
-
name:
-
tree mover
-
colour:
-
red
-
Digging soil ball diameter:
-
700-850mm
-
Application:
-
Small Chips
-
DBM ( diameter of the tree):
-
12-20cm
-
Soil ball adjustment range:
-
900-1050mm
-
Soil ball upper mouth diameter:
-
≤1050mm
-
Soil ball lower mouth diameter:
-
500mm
-
Effective depth of tree ball:
-
≥600mm
-
Number of hydraulic cylinders:
-
5pcs
Quick Details
-
Use:
-
tree replanting
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sanxian
-
Dimension(L*W*H):
-
1300*1100*1750mm
-
Weight:
-
1100 KG
-
Marketing Type:
-
New Product 2023
-
name:
-
tree mover
-
colour:
-
red
-
Digging soil ball diameter:
-
700-850mm
-
Application:
-
Small Chips
-
DBM ( diameter of the tree):
-
12-20cm
-
Soil ball adjustment range:
-
900-1050mm
-
Soil ball upper mouth diameter:
-
≤1050mm
-
Soil ball lower mouth diameter:
-
500mm
-
Effective depth of tree ball:
-
≥600mm
-
Number of hydraulic cylinders:
-
5pcs
Equipment Introduction

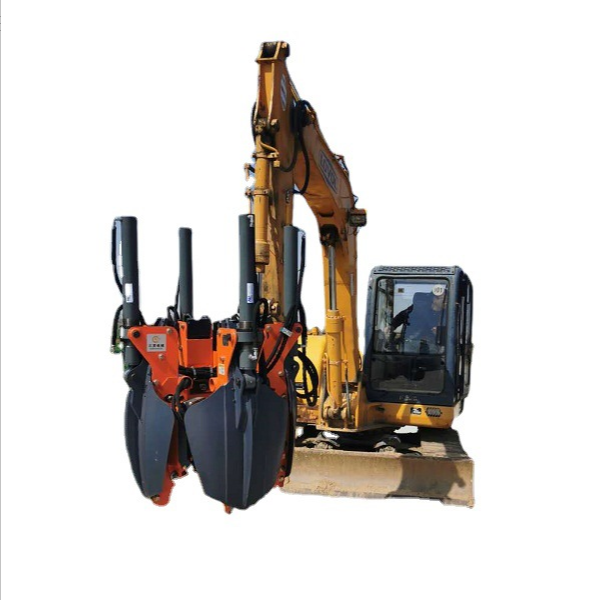

Apple ball tree replanting machine.
The tree replanting machine/tree spade/tree transplanter as an excavator , loader and skid steer attachment, used in nursery transplanting, a big tree, and road green belt, residential greening inside the seedlings transplanting use.
The tree replanting machine/tree spade/tree transplanter is a modern landscaping tool, it can move the seedling roots and the surrounding soil within 1-2 minutes , protect the roots and improve the survival rate. The tree replanting machine/tree spade can be used to transplant large trees, transplanting a tree in a few minutes. Dig shovel easily cut into the soil,
Lift and carry the tree together with the soil.
When the excavator carries the trees to the designated pit position, put the trees into the pit, and then conduct a simple
maintenance treatment; The root system of trees and pot-shaped soil ball can be retained to the greatest extent, so as to improve the survival rate of seedlings.
The tree replanting machine/tree spade/tree transplanter is a modern landscaping tool, it can move the seedling roots and the surrounding soil within 1-2 minutes , protect the roots and improve the survival rate. The tree replanting machine/tree spade can be used to transplant large trees, transplanting a tree in a few minutes. Dig shovel easily cut into the soil,
Lift and carry the tree together with the soil.
When the excavator carries the trees to the designated pit position, put the trees into the pit, and then conduct a simple
maintenance treatment; The root system of trees and pot-shaped soil ball can be retained to the greatest extent, so as to improve the survival rate of seedlings.
Parameter of tree transplanter
Model number
|
SX-100
|
Digging up tree DBH
|
12-20cm
|
Soil ball diameter adjustment range
|
900-1050mm
|
Top diameter of tree ball A1
|
≦1050mm
|
Tree ball lower mouth diameter A2
|
500
|
Effective depth of tree ball B
|
≥600mm
|
Tree ball volume
|
≥0.32m³
|
Head length
|
≥1400mm
|
Weight of machine head
|
≥110kg
|
Machine life
|
≥50000 trees
|
Work efficiency
|
≥60trees/hour
|
Number of blades
|
4 pcs
|
Hydraulic valve body
|
Imported northern precision integrated valve
|
Blade material
|
Imported alloy wear-resistant plate
|
Excavated soil ball shape
|
Soil ball is flat arc "carrot" shape
|
Adapted excavator (weight)
|
≧9.5 tons
|
Adapted skid machine (power)
|
≧75KW
|
