- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
2800 KG
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
Jaw Crusher
-
Applicaton:
-
Mining Quarry
-
Keywords:
-
Stone Crusher
-
The Machines classification:
-
Crushing Equipment
-
After-sales Service Provided:
-
Video Technical Support
-
Crusher type:
-
Pe250*400 Jaw Crusher
-
Advantage:
-
High Capacity
-
Max feeding size:
-
200-1020mm
-
Raw material:
-
Stones Rocks Ores
-
Function:
-
Mining Crusher Equipment
Quick Details
-
Application:
-
Quarry mining
-
Place of Origin:
-
Henan, China
-
Dimension(L*W*H):
-
Varies
-
Weight:
-
2800 KG
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
Jaw Crusher
-
Applicaton:
-
Mining Quarry
-
Keywords:
-
Stone Crusher
-
The Machines classification:
-
Crushing Equipment
-
After-sales Service Provided:
-
Video Technical Support
-
Crusher type:
-
Pe250*400 Jaw Crusher
-
Advantage:
-
High Capacity
-
Max feeding size:
-
200-1020mm
-
Raw material:
-
Stones Rocks Ores
-
Function:
-
Mining Crusher Equipment
Products Description

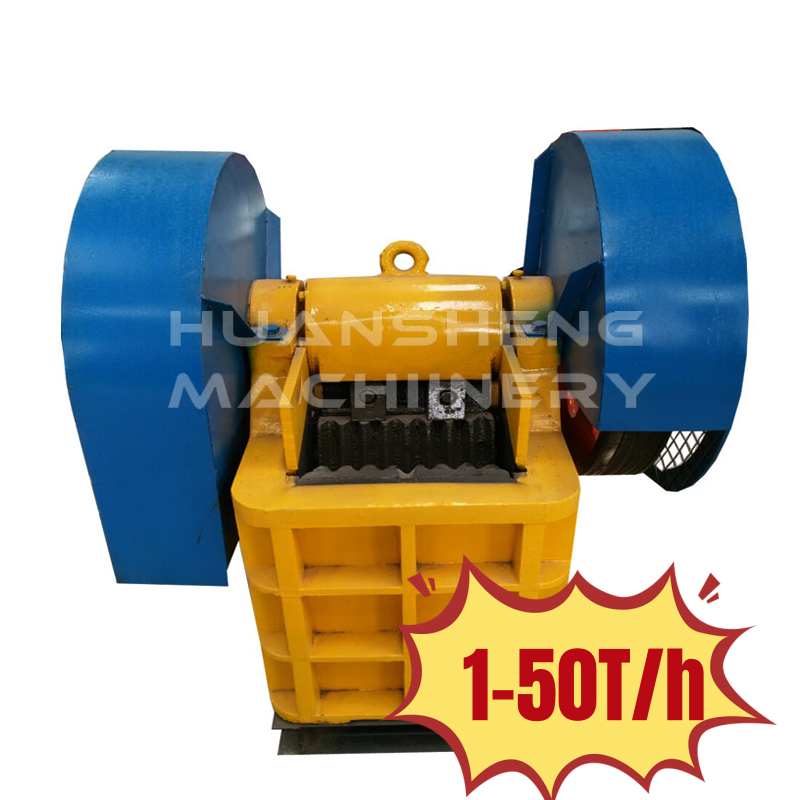

Jaw Crusher, also known is a crusher composed of two jaw plates, a moving jaw and a stationary jaw, which simulates the movement of two jaws of an animal to complete the crushing operation of the material. Simple structure, easy manufacture and reliable work.
Product advantages and application fields
* Jaw crusher can crush a variety of stone
* Large stones can be broken to 10-20mm
* Less wearing parts, small operation and maintenance cost
Jaw crusher can break the waste construction waste into 10-20mm small stones, but also can separate the steel bar in the construction waste. Reuse of waste can be achieved.
Service and warranty
*
customized service
* Color can be customized
* Power can be configured with motor or diesel engine
* Can be customized single or mobile crushing production line
* Accessories customization service
1>. Assist clients to prepare for the first construction scheme;
2>. Install, debug and examine the equipment;
3>. Provide
technical support through video;
4>. Offer spare parts at a best price for long term.
5>. We provide 1 years warrenty &technical
support to ensure the machine run smoothly.
Product Parameters
|
Model:
PE. ** |
Max feed
size(mm) |
Discharge
opening range(mm) |
Processing
capacity (t/h) |
Eccentic
shaft speed(r/min) |
Power
(kw) |
Weight
(t) |
Dimension
(mm) |
|
150*250
|
150*250
|
10-40
|
1-3
|
250
|
5.5
|
0.8
|
720*660*850
|
|
200*300
|
200*300
|
15-50
|
2-6
|
260
|
7.5
|
1.2
|
910*750*990
|
|
200*350
|
200*350
|
18-70
|
3-10
|
260
|
11
|
1.5
|
1000*870*990
|
|
250*400
|
250*400
|
20-60
|
5-20
|
300
|
15
|
2.8
|
1300*1090*1270
|
|
400*600
|
400*600
|
40-100
|
16-60
|
275
|
30
|
7
|
1730*1730*1630
|
|
500*750
|
500*750
|
50-100
|
40-110
|
275
|
55
|
12
|
1980*2080*1870
|
|
600*750
|
600*750
|
150-200
|
80-240
|
275
|
55
|
15.8
|
2070*2000*1920
|
|
600*900II
|
600*900II
|
65-160
|
50-180
|
250
|
55
|
17
|
2190*2206*2300
|
|
750*1060
|
750*1060
|
80-140
|
110-320
|
250
|
110
|
29
|
2660*2430*2800
|
|
800*1060
|
800*1060
|
130-190
|
130-330
|
250
|
110
|
29.8
|
2710*2430*2800
|
|
830*1060
|
830*1060
|
160-220
|
150-226
|
250
|
110
|
30.7
|
2740*2430*2800
|
|
870*1060
|
870*1060
|
200-260
|
190-336
|
250
|
110
|
31.5
|
2810*2430*2800
|
|
900*1060
|
900*1060
|
230-290
|
230-390
|
250
|
110
|
33
|
2870*2420*2940
|
|
900*1200
|
900*1200
|
95-165
|
240-450
|
200
|
110
|
52
|
3380*2870*3300
|
|
1000*1200
|
1000*1200
|
195-265
|
315-500
|
200
|
110
|
55
|
3480*2876*3300
|
|
1200*1500
|
1200*1500
|
150-350
|
400-800
|
180
|
160
|
100.9
|
4200*3300*3500
|
|
1500*1800
|
1500*1800
|
220-350
|
500-1000
|
180
|
280
|
122
|
5160*3660*4248
|
|
1800*2100
|
1800*2100
|
300-400
|
600-1200
|
180
|
400
|
150.6
|
6120*4013*4716
|
Packing & Shipping
Pe-250*400 Jaw Stone Crusher With Diesel Engine Portable Rock Crusher In China
We will make the products according your requirement ,such as the the model,And packing jaw breaker supplier small stone mobile diesel engine jaw crusher in wooden package or standard container. Unique workers make sure all equipment are steady and fixed before close the door of the container, there will be no damage during transport6ation and shipment.As for the shipment,we will choose our sea port to transfer the jaw crusher machine as practice.
