Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shitong Zhongke
-
Product Name:
-
Semi trailer suspension parts with leaf spring
-
Material:
-
Steel
-
Color:
-
Black,Orange, red
-
Certificate:
-
ISO/TS16949
-
Hanger Thickness:
-
8mm/10mm
-
Wheel Base:
-
1360mm/1310mm
-
Leaf Spring:
-
90MM*16MM*9PCS/90*16*7/90*11*11/100*12*12/100*14*12
-
Equalizer Pin Dia:
-
60mm/70mm
-
Application:
-
Trailer truck used
-
Package:
-
Pallet
Quick Details
-
OE NO.:
-
Customized
-
Max Payload:
-
2*3*16T/12T/13T
-
Size:
-
HEIGHT:110-580MM
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shitong Zhongke
-
Product Name:
-
Semi trailer suspension parts with leaf spring
-
Material:
-
Steel
-
Color:
-
Black,Orange, red
-
Certificate:
-
ISO/TS16949
-
Hanger Thickness:
-
8mm/10mm
-
Wheel Base:
-
1360mm/1310mm
-
Leaf Spring:
-
90MM*16MM*9PCS/90*16*7/90*11*11/100*12*12/100*14*12
-
Equalizer Pin Dia:
-
60mm/70mm
-
Application:
-
Trailer truck used
-
Package:
-
Pallet
Product Description

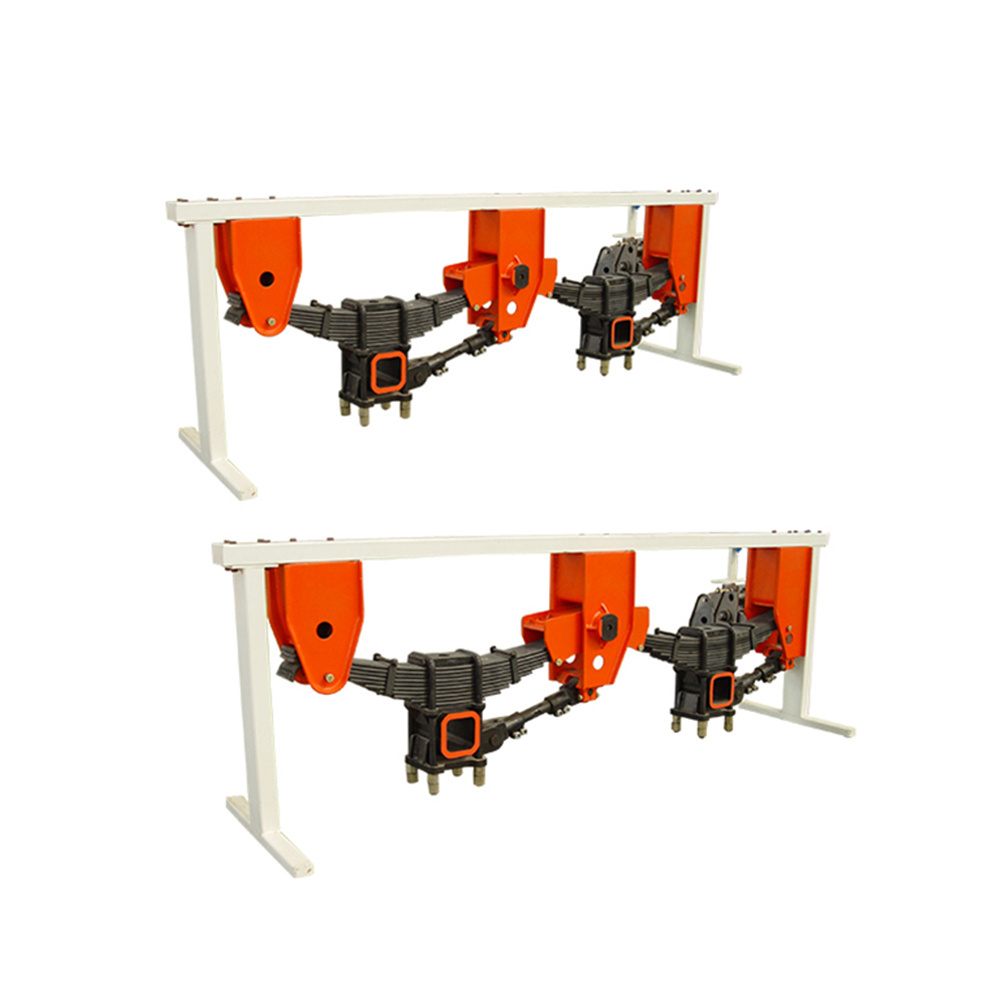

semi trailer parts 3 axle German type mechanical suspension for trailer axle
1. Carry greater vertical load and better torque.
2. Easy installation, low price, long service life, low maintenance cost
3. It is suitable for various road conditions and has many optional specifications.
|
Model
|
Height Of Towing Plate
|
L1
(mm) |
L2
(mm) |
L3
(mm) |
L4
(mm) |
L5
(mm) |
H
(mm) |
|||||||
|
STZK-2/3180
|
1180
|
485
|
1310
|
495
|
1135
|
1155
|
180
|
|||||||
|
STZK-2/3230
|
1230
|
485
|
1310
|
495
|
1135
|
1155
|
230
|
|||||||
|
STZK-2/3270
|
1270
|
485
|
1310
|
495
|
1135
|
1155
|
270
|
|||||||
|
STZK-2/3320
|
1320
|
485
|
1310
|
495
|
1135
|
1155
|
320
|
|||||||
|
1. Can be equipped with 13/16/20T axles.
2. Can be equipped with round shaft/square shaft. 3. You can choose front/reverse installation. 4. Can choose the leaf spring specification. |
|
|
|
|
|
|
|
|||||||
Semi Trailer Parts 2 Axles Mechanical Suspension American Type Suspension with Life
1. Carry greater vertical load and better torque.
2. Easy installation, low price, long service life, low maintenance cost
3. It is suitable for various road conditions and has many optional specifications.
|
Model
|
NO.of spring piece
|
Spring thickness
|
A
|
B
|
C
|
D
|
E
|
|||||||
|
STZK-01-2900A
|
12
|
12mm
|
490mm
|
440mm
|
639mm
|
/
|
/
|
|||||||
|
STZK-01-2900B
|
14
|
12mm
|
515mm
|
465mm
|
636.5mm
|
/
|
/
|
|||||||
|
STZK-02-2900A
|
12
|
12mm
|
490mm
|
440mm
|
1320mm
|
639mm
|
/
|
|||||||
|
STZK-02-2900B
|
14
|
12mm
|
515mm
|
465mm
|
1318mm
|
636.5mm
|
/
|
|||||||
|
STZK-03-2900A
|
12
|
12mm
|
490mm
|
440mm
|
1320mm
|
639mm
|
4000mm
|
|||||||
|
STZK-03-2900B
|
14
|
12mm
|
515mm
|
465mm
|
1318mm
|
636.5mm
|
4010mm
|
|||||||
|
1. Can be equipped with 13/16/20T axles.
2. Can be equipped with round shaft/square shaft. 3. You can choose front/reverse installation. 4. Can choose the leaf spring specification. |
|
|
|
|
|
|
|
|||||||
Heavy Duty Truck Semi Trailer Parts Factory Suspension Bpw Type Axle 24t 32t Bogie Suspension
1. The left and right wheels are connected to each other to reduce tire wear.
2. It is not easy to change the wheel angle when the vehicle height is lowered, and the steering feel remains consistent.
3. Simple structure, low manufacturing cost, convenient maintenance and large load. It occupies a small space and reduces the height of the vehicle.
|
Model
|
Capacity
(kg) |
Bearing
|
Axle Tube
(mm) |
Brake Lining Size
|
Dual Spacing
(mm) |
Tyre Screw
|
Track
(mm) |
|
STZK24
|
2400
|
33213
33118 |
150*150*12
|
φ420*200
|
1850
|
10-M22*1.5
|
1400
|
|
STZK24
|
2800
|
33215
33119 |
150*150*14
|
φ420*200
|
1850
|
10-M22*1.5
|
1550
|
|
STZK24
|
3200
|
32314
32222 |
150*150*16
|
φ420*200
|
1850
|
10-M22*1.5
|
1550
|
Product Display
●
American suspension minimizes vehicle vibration, ensures optimal braking, enhances adaptability to road conditions for smooth operation, and includes a lifting device for adjusting vehicle height during no-load operation to reduce tire wear and facilitate easy unloading.
●
German suspension enhances vehicle performance by minimizing vibrations, improving adaptability to road conditions, and facilitating easy unloading through adjustable height, promoting smoother operation and protecting items from impact.
●Independent wheel movement reduces body tilt and vibration, minimizes tire wear, maintains a consistent steering feel during height changes, and offers a simple, cost-effective, space-saving design with easy maintenance and a large load capacity.
Hanger Assembly
It adopts high-quality accessories from major brands at home and abroad and global standard American axle specifications. It has strong practicability, low price, and convenient maintenance.
Leaf Spring
Suspension can be matched with different width/ thickness/number of pieces, we can recommend the number of leaf springs according to the load. Use high-quality steel, long life, and large load.
suspension
The suspension support is stamped and welded by Q345 steel plate material, which is light in weight and strong in rigidity. The leaf spring is made of high-quality steel, with large torque and long life.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Shipping & Payment
We offer three shipping options for your preferred semi-trailer accessories: sea, air, and land. You can choose to pick them up at the port or have them delivered to your doorstep (though this option is costlier and not recommended). We ensure no additional fees beyond the shipping cost, prioritizing a fast and affordable acquisition process for you.
Product Application
Semi-trailer suspensions are commonly used in freight and cargo vehicles, enhancing stability, reducing cargo impact, and ensuring a comfortable ride. They are designed to handle different loads and adapt to various road surfaces for the safe transport of goods.
Product Reviews
Related Products
Shandong Shitong Zhongke Automobile Trading Co., Ltd
. is located in Liangshan County, Shandong Province. Our company is a professional manufacturer that integrates design, production, and sales. The series of products produced by our factory, such as axles and suspensions, have passed the testing of national authoritative departments and have a fatigue life of 1.2 million times without damage. Due to the use of international advanced technology design, the products have a reasonable structure, good braking performance, high strength, high rigidity, strong load-bearing capacity, long service life, and good service, and are deeply trusted by users. Excellent production technology, advanced production equipment, modern management, and strict quality control system achieve eternal quality.
Shandong Shitong Zhongke Automobile Trading Co., Ltd. has a manufacturing and production base for axles and other supporting components, covering a total area of 220000 square meters, with a production building area of 150000 square meters. There are a total of 5 main workshops, over 300 CNC mechanical equipment of various types, and over 600 other general mechanical equipment. We have over 200 technical personnel and a designed production capacity of 450000 axles per year. In addition, Shandong Shitong Zhongke Automobile Trading Co., Ltd. also has more than 160 sets of other automobile parts production facilities!
The main product axles include various models of 8-25 ton axles, pneumatic disc axles, eccentric axles, first line double axles, and other special axles. This product combines the strengths of various domestic and international brands, and combines various road conditions in various parts of China to scientifically design and configure the materials, structure, bearings, brake devices, and other components of the axle, making it have better performance. Other products include suspension systems, traction pins, support devices, traction seats, and other series, which can be customized according to your requirements.
FAQ
1. Q: What's your best price for this product?
A: We will quote you the best price according to your quantity, so when you make an inquiry, please let us know the quantity you want.The more quantity the better price.
2. Q: How about the quality of this product?
A: Our products are certified to ISO9001, international quality standards. We company have very strict Quality Control Systems.
3. Q: What's the delivery time?
A: For products that are in stock, we can ship them within 7 days after receiving your payment. For custom orders, quantity within 24 tons, production time is 20-25 days after every detail is confirmed.
4. Q: What's your packing?
A: Our usual packing is a pallet, we can also supply your packing according to your requirements.
5. Q: What are the Payment Terms?
A: T/T, L/C, Western Union, Moneygram, Paypal.
6. Q: What is the shipment way?
A: By sea, by air or by express, it depends on how much goods, by sea is the most economical way.
