Quick Details
-
Brand Name:
-
Xinyuhai
-
Model Number:
-
204ZJY-4-7.5-15
-
Frequency:
-
50hz
-
Product Name:
-
Spindle Servo Motor
-
Color:
-
Black
-
Voltage:
-
380V
-
Torque:
-
50.0 N.m
-
Speed:
-
1460-6000rpm
-
Rated Power:
-
7.5KW
-
Rated current:
-
16A
-
Insulation Class:
-
F
-
temperature:
-
-20℃~+50℃
-
Pole Pairs:
-
4
Quick Details
-
AC Voltage:
-
380v
-
Warranty:
-
2 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Xinyuhai
-
Model Number:
-
204ZJY-4-7.5-15
-
Frequency:
-
50hz
-
Product Name:
-
Spindle Servo Motor
-
Color:
-
Black
-
Voltage:
-
380V
-
Torque:
-
50.0 N.m
-
Speed:
-
1460-6000rpm
-
Rated Power:
-
7.5KW
-
Rated current:
-
16A
-
Insulation Class:
-
F
-
temperature:
-
-20℃~+50℃
-
Pole Pairs:
-
4
Specification
|
item
|
value
|
|
Warranty
|
2 years
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Brand Name
|
Xinyuhai
|
|
Model Number
|
204ZJY-4-7.5-15
|
|
Type
|
spindle Servo Motor
|
|
Color
|
Black
|
|
Voltage
|
380V
|
|
Pole pairs
|
4
|
|
Torque
|
50 N.m
|
|
Speed
|
1460-6000rpm
|
|
Rotator Inertia
|
0.01G.D
2
|
|
Rated Current
|
16.0 A
|
|
Utilization Environment
|
0-55℃
|
|
Incremental Encoder Wire
|
1024/2500PPR
|
|
Humidity
|
<90%
|
|
Insulation Class
|
F
|
|
Protection Class
|
P54
|
|
Insulation Dielectric
|
AC1500V, 1min
|
|
Insulation Resistance
|
DC500V, >10Ω
|
|
Vibration
|
<2.5G
|
|
Altitude
|
<1000m
|
|
Working Type
|
Continuous
|
|
Installment
|
Flange/Horizontal
|
Product Description

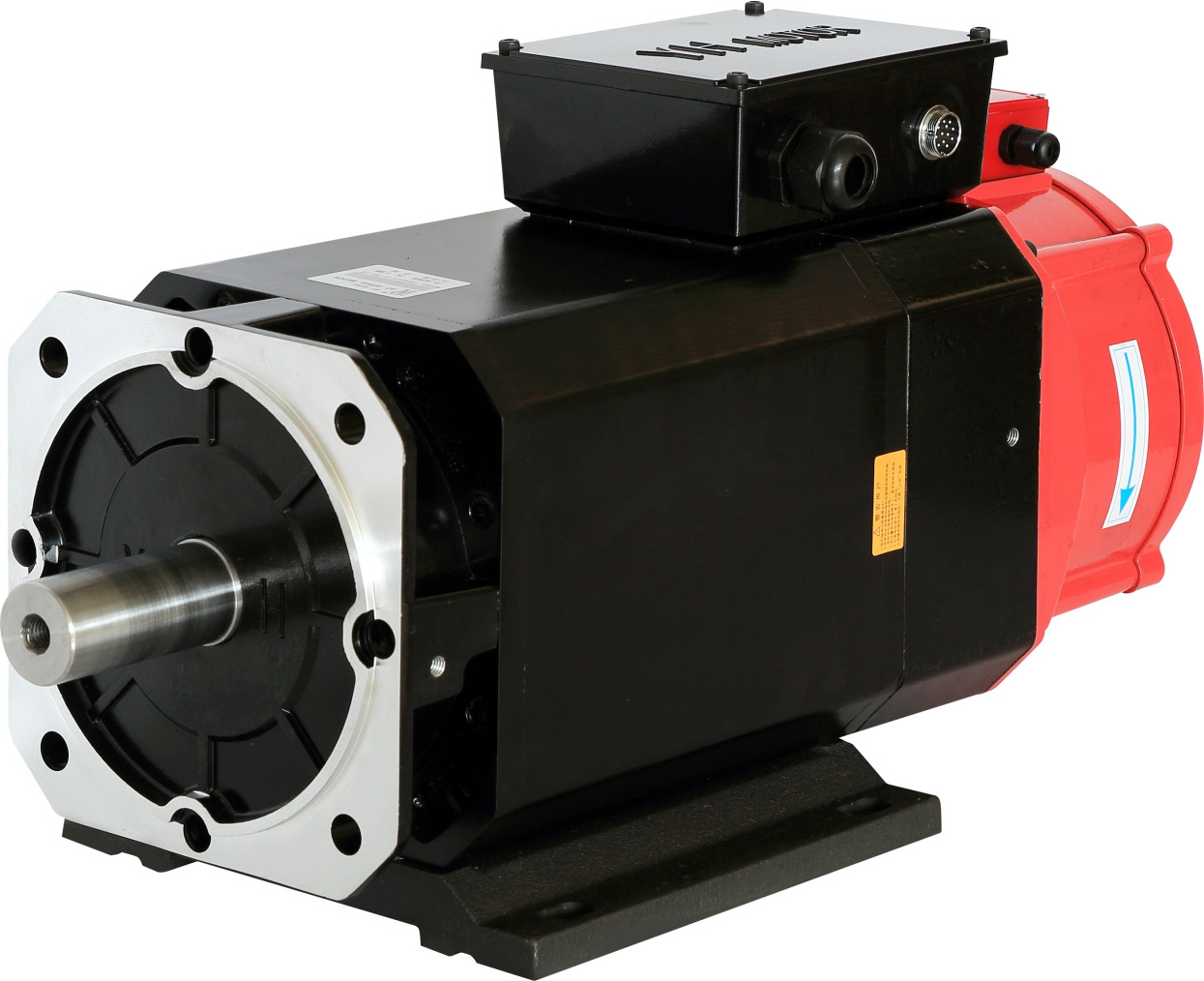

204mm Series AC Asynchronous Spindle Servo Mortor
204BYG series is a kind of Spindle Servo motor in our catlog. As the name shows, spindle motors are suitable for some High speed needs according to different industries. Xinyuhai stepper motor support a level up type that we can add incremental encoder and other into whole motor design according to various models. We ensure relative long function longevity under normal conditions. Pls tell us your industry and situations you are using so that we can provide a best choise for you.
For clients consideration, pls check the parameters carefully. We offer customization options, some critical configuration parameters are changeable. If you need any special requirements, pls contact us FREELY. We strongly recommend that clients use our coordinated driver to achieve best functions of the motor.
