Quick Details
-
Brand Name:
-
Aofu
-
Model Number:
-
AF-813
-
Material:
-
Carbon Steel
-
Surface treatment:
-
Hot Dipped Galvanzied
-
Function:
-
Automatic Control
-
Packing:
-
Pallet
-
Advantage:
-
Easily Installation
-
Certification:
-
ISO9001
-
Colors:
-
Customized
-
Length:
-
2200mm
-
Height:
-
1100mm
-
MOQ:
-
100 Pcs
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, Renewable Sources
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Aofu
-
Model Number:
-
AF-813
-
Material:
-
Carbon Steel
-
Surface treatment:
-
Hot Dipped Galvanzied
-
Function:
-
Automatic Control
-
Packing:
-
Pallet
-
Advantage:
-
Easily Installation
-
Certification:
-
ISO9001
-
Colors:
-
Customized
-
Length:
-
2200mm
-
Height:
-
1100mm
-
MOQ:
-
100 Pcs
Products Description

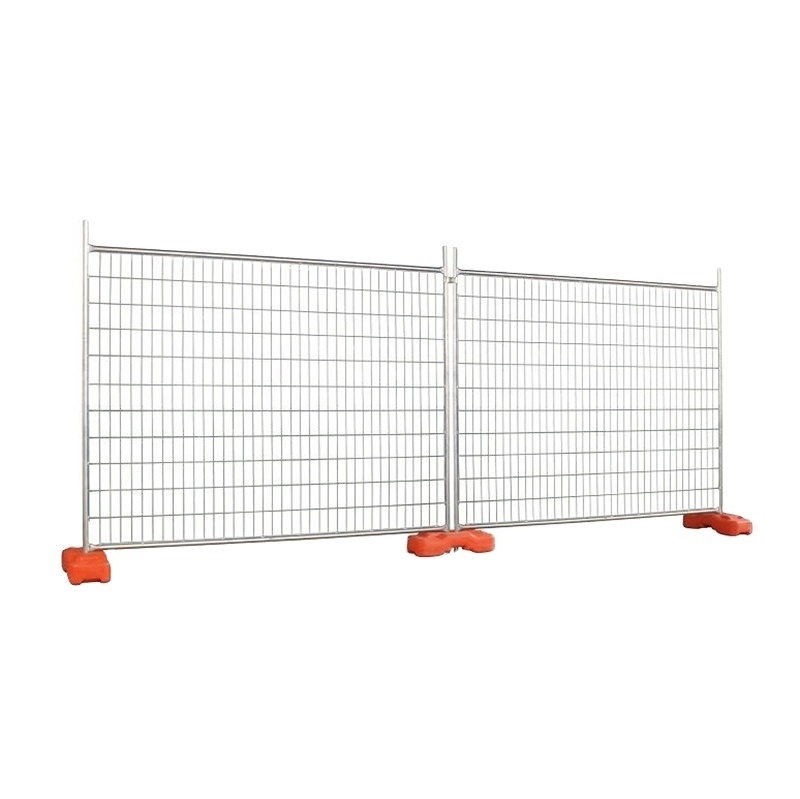

CUSTOM TEMPORARY FENCING
WHAT IS TEMPORARY FENCING?
A temporary fencing system is a combination of components, including fence panels, bases, clamps, and other optional accessories, to be used in construction sites, events, and private sites for protection and sectioning.
WHY USE TEMPORARY FENCING?
- Quick and easy installation.
Light-weight panels are composed of round pipe frames and welded infill meshes which are easily and quickly installed just only two people.
- No need to dig holes.
Removable and lightweight plastic bases make the installation be more easier and will not break the ground surface at all. Fill the water or sand into the base to form a solid and strong base for the whole protective system.
- Anti-corrosion and aging resistance.
The hot-dipped galvanized finish of infill mesh and frames makes the temporary fencing panel excellent corrosion resistance performance. Besides, the anti-ultraviolet agent added plastic base can withstand the strong UV rays and aging resistance.
- Multiple panel options.
Electrical temporary fencing and stable temporary fencing in different pipe sizes and wall thicknesses for your requirements
- Considerate options.
Company logos, warning signs, shade clothes, and special specifications can be customized to your needs.
- All required hardware included.
Bases, clamps, braces, dog bars, shade clothes, and other wanted hardware can be supplied.
- Perfect for construction sites.
It can be used for enclosing and warning dangerous sites and preventing unauthorized access. Easy installation and uninstallation performance is suitable for different construction periods.
Australia Temporary Fence
Econo Fence Panel
Panel Size: 2400 mm (L) × 2100 mm (H).
Frame Size: 32 mm O.D. × 1.5 mm thickness.
Zinc Coating: 42 microns.
Infill Mesh: 3 mm horizontal, 3 mm vertical.
Aperture Spacing: 150 mm × 60 mm spacing.
Surface Treatment:
Pre-galvanized 42 microns.
Hot-dipped galvanized 90 microns.
Canada Temporary Fence
6' × 8' CA temp fencing
Dimensions (H × L): 6' × 8'.
Frame O.D.: 30 × 30, 40 × 40 mm optional.
Frame TH : 2.0–2.5 mm.
Middle horizontal pipe: 25 × 25 × 2 mm.
Wire diameter: 4.0, 6.0 mm optional.
Mesh opening: 50 × 100, 50 × 150, 75 × 150 mm optional.
Finish:
Electric galvanized before powder coated.
Hot dipped galvanized after welding.
Specification
|
Econo Temporary Fencing Panel Specification
|
|
|
|
Panel Size
|
2400 mm (L)×2100 mm(H)
|
|
|
Frame Size
|
32mm 0.D.x1.5 mm thickness
|
|
|
Zinc Coating
|
42 microns
|
|
|
nfill Mesh
|
3 mm horizontal,3 mm vertical,150 mm×60 mm spacing
|
|
|
Surface
Treatment |
Pre-galvanized 42 microns
|
|
|
|
Hot-dipped galvanized 90 microns
|
|
|
Feet specification
|
|
|
|
Materia
|
High-density polyethylene.
|
|
|
Feet Size
|
610 mmx230mm×150 mm
|
|
|
Treatment
|
UV 220,UV 531 and Uv 770 anti-ultraviolet agent added for color-fading resistance in outdoor use
|
|
|
Color
|
Orange,blue,red,green and other customized colors
|
|
|
Fill Materia
|
Cement,water,sands,small stones
|
|
|
Infll Concrete
Weight |
27.5-28 kg
|
|
|
Clamp Specification
|
|
|
|
Clamp Size
|
Specially moulded 4.0 mm wall thickness
|
|
|
Hole Spacing
|
80/90/100 mm optional
|
|
|
Surface
Treatment |
Hot dipped galvanised.
|
|
|
Weight
|
0.42 kg/set
|
|
|
Accessory List
|
2 pieces clamps with 1 bolt and 1 nut
|
|
|
Sturdy Temporary Fencing Panel Specification
|
|
|
||
|
Panel Size
|
2400mm(L)×2100 mm (H)
|
|
||
|
Frame Size
|
32mm 0.D.×2.0 mm thickness
|
|
||
|
Zinc Coating
|
42 microns
|
|
||
|
nfill Mesh
|
4 mm horizontal,4 mm vertical,150 mm×60 mm spacing
|
|
||
|
Surface
Treatment |
Pre-galvanised 42 microns
|
|
||
|
|
Hot-dipped galvanized 90 microns
|
|
||
|
Feet specification
|
|
|
||
|
Material
|
High-density polyethylene
|
|
||
|
Feet SlZe
|
610mm×230 mm×150 mm
|
|
||
|
Treatment
|
UV 220,UV 531 and UV 770 anti-ultraviolet agent added for color-fading resistance in outdoor use
|
|
||
|
Color
|
Orange,blue,red,green and other customized colors
|
|
||
|
Fill Materia
|
Cement,water,sands,small stones
|
|
||
|
Infill Concrete
Weigh |
27.5-28kg
|
|
||
|
Clamp Specification
|
|
|
||
|
Clamp Size
|
Specially moulded 4.0 mm wall thickness
|
|
||
|
Hole Spacing
|
80/90/100 mm optional
|
|
||
|
Surface
Treatment |
Hot dipped galvanised.
|
|
||
|
Weight
|
0.42 kg/set
|
|
||
|
Accessory List
|
2 pieces clamps with 1 bolt and 1 nut
|
|
||
Product Details
FAQ
1. Who Are We?
We Are Based In Hebei, China, and Start In 2014, and Sell To Southeast Asia(35.00%), North America(30.00%), Mid East(15.00%), South Asia(5.00%), Africa(5.00%), Eastern Asia(2.00%). There Are a Total of About 11-50 People In Our Office.
2. How Can We Guarantee Quality?
Always A Pre-Production Sample Before Mass Production;
Always Final Inspection Before Shipment;
3. What Can You Buy From Us?
Fence Panel/Welded Wire Panels/Stainless Steel Wire Mesh/Welded Wire Mesh/Perforated Metal Mesh
4. Why Should You Buy From Us Not From Other Suppliers?
Our Company Has Strong Technical Force, Complete Equipment, Professional Management Personnel, Technical Personnel, And Professional Equipment Construction Team, A Price Advantage, And A Complete Quality Inspection System.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union;
Language Spoken: English, Chinese
