Quick Details
-
Brand Name:
-
DEWO
-
Model Number:
-
SW-6A0501(300)01A1200A-03
-
Max. Current:
-
5A
-
Operating Temperature:
-
40T85
-
Protection Level:
-
IP67
-
Item:
-

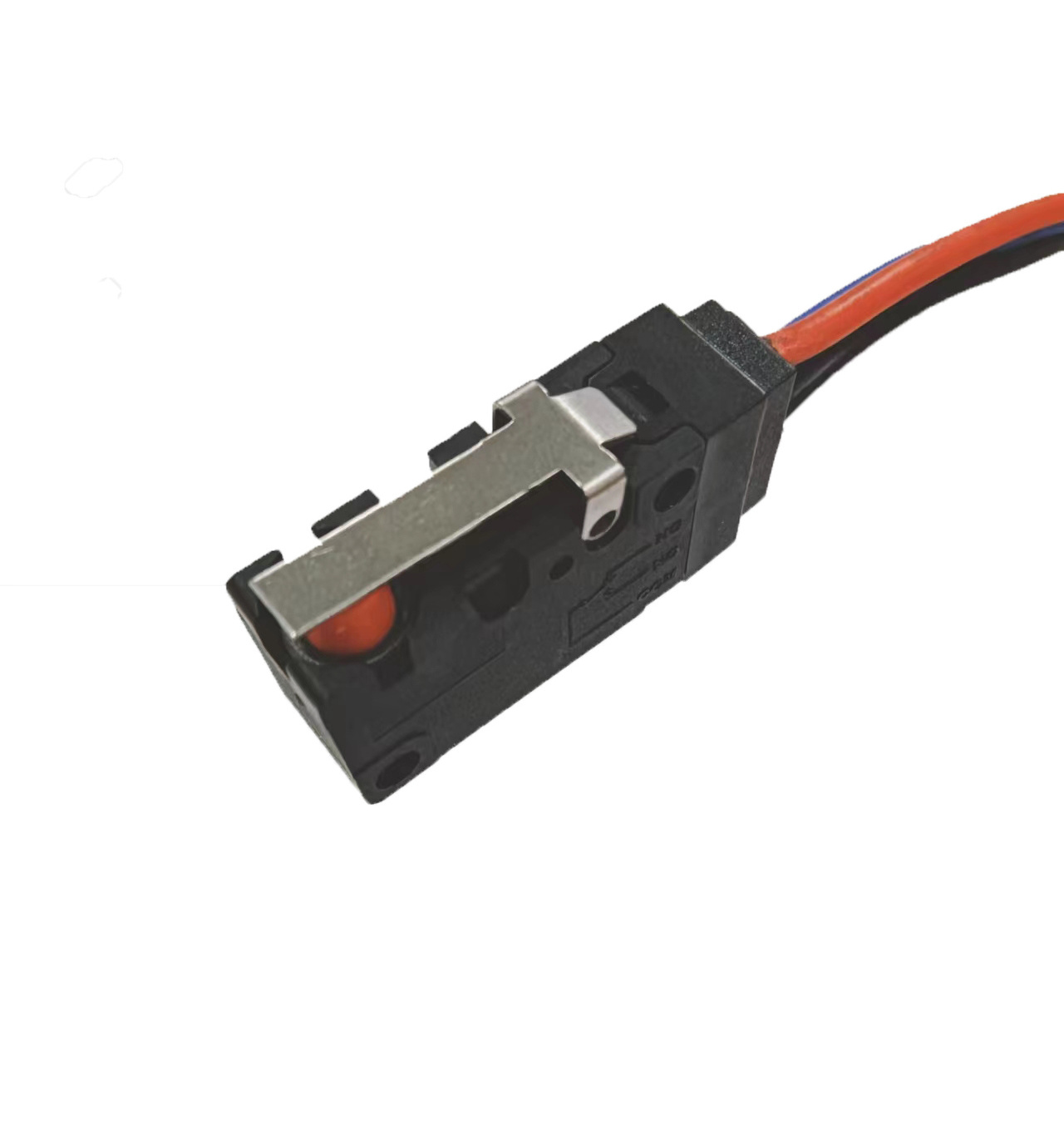

waterproof micro switch
-
Operating Force:
-
210gf Max
-
Release force:
-
60gf Min
-
Operation Position:
-
15.3±0.5mm
-
Pre Travel:
-
1.6mm Max
-
Differential Travel:
-
0.4mm Max
-
Over Travel:
-
0.8mm Min
-
Function:
-
SPDT
-
Lever:
-
stainless
-
Approval:
-
UL, ENEC, CQC
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250V
-
Place of Origin:
-
China
-
Brand Name:
-
DEWO
-
Model Number:
-
SW-6A0501(300)01A1200A-03
-
Max. Current:
-
5A
-
Operating Temperature:
-
40T85
-
Protection Level:
-
IP67
-
Item:
-
waterproof micro switch
-
Operating Force:
-
210gf Max
-
Release force:
-
60gf Min
-
Operation Position:
-
15.3±0.5mm
-
Pre Travel:
-
1.6mm Max
-
Differential Travel:
-
0.4mm Max
-
Over Travel:
-
0.8mm Min
-
Function:
-
SPDT
-
Lever:
-
stainless
-
Approval:
-
UL, ENEC, CQC
Product Description
Specification
|
Whether the smart
|
NO
|
|
Place of Origin
|
China
|
|
Brand Name
|
DEWO
|
|
Model Number
|
SW-6A0501(300)01A1200A-03
|
|
Max. Current
|
5A
|
|
Max. Voltage
|
250V
|
|
Operating Temperature
|
40T85
|
|
Protection Level
|
IP67
|
|
Item
|
waterproof micro switch
|
|
Operating Force
|
210gf Max
|
|
Release force
|
60gf Min
|
|
Operation Position
|
15.3±0.5mm
|
|
Pre Travel
|
1.6mm Max
|
|
Differential Travel
|
0.4mm Max
|
|
Over Travel
|
0.8mm Min
|
|
Function
|
SPDT
|
|
Lever
|
stainless
|
|
Approval
|
UL, ENEC, CQC
|
Packing & Delivery
1000pcs switch per PP bag, 10 bag per carton(49*31*23cm)and Transport by express, by air, by sea, by car or by train is as your requested.
